PUOLOPDatasheet (PDF)

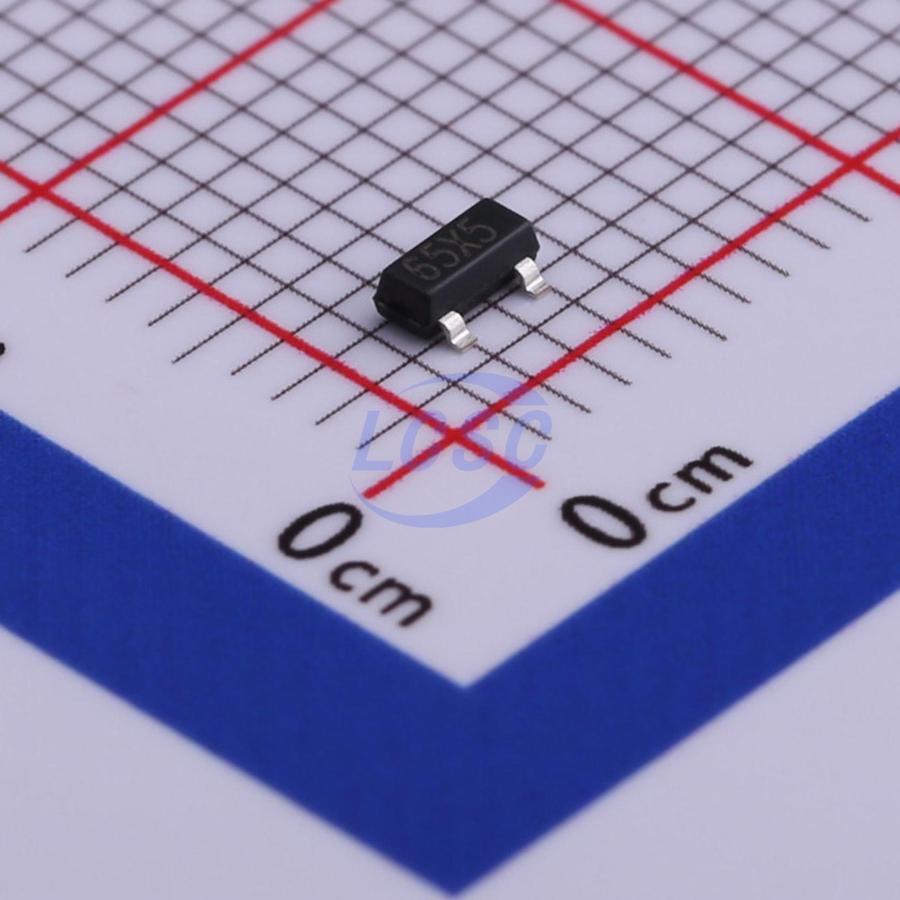

XC6206P282MR
2.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
Precise, Low Power Consumption, High Voltage Positive Voltage Regulators
- Manufacturer
- PUOLOP
- Manufacturer part #
- XC6206P282MR
- Store part #
- C479055
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C479055
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.98 | ₹79.60 |
| 200+ | ₹3.11 | ₹622.00 |
| 600+ | ₹2.63 | ₹1,578.00 |
| 3,000+ | ₹2.34 | ₹7,020.00 |
| 9,000+ | ₹2.09 | ₹18,810.00 |
| 21,000+ | ₹1.96 | ₹41,160.00 |
| 39,000+ | ₹1.93 | ₹75,270.00 |
| 81,000+ | ₹1.92 | ₹1,55,520.00 |
20 × ₹3.98
₹79.60
excl. GST
₹93.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P282MR
₹79.60 for 20 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.035 g
Overview
The XC6206 series are precise, low power consumption, high voltage; positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. Output voltage can be set internally by laser trimming technologies. It is selectable in 100mV increments within a range of 1.2V to 5.0V. SOT-89-3, SOT-23-3, SOT353 and SOT23-3B packages are available.
Applications
- Battery powered equipment
- Reference voltage sources
- Cameras, Video cameras
- Mobile phones
- Communication tools
Key features
- Output Voltage Range 1.2V to 5.0V (selectable in 100mV steps)
- Highly Accurate ± 2%
- Dropout Voltage 160mV @ 50mA (3.0V type)
- Low Power Consumption 2μA (TYP.)
- Maximum Output Current 100mA (Vin≥Vout+1V)
- Internal protector current limiter and short protector
- Small packages SOT-89-3, SOT-23-3, SOT23-3B, SOT353 and other required
