TWGMCDatasheet (PDF)

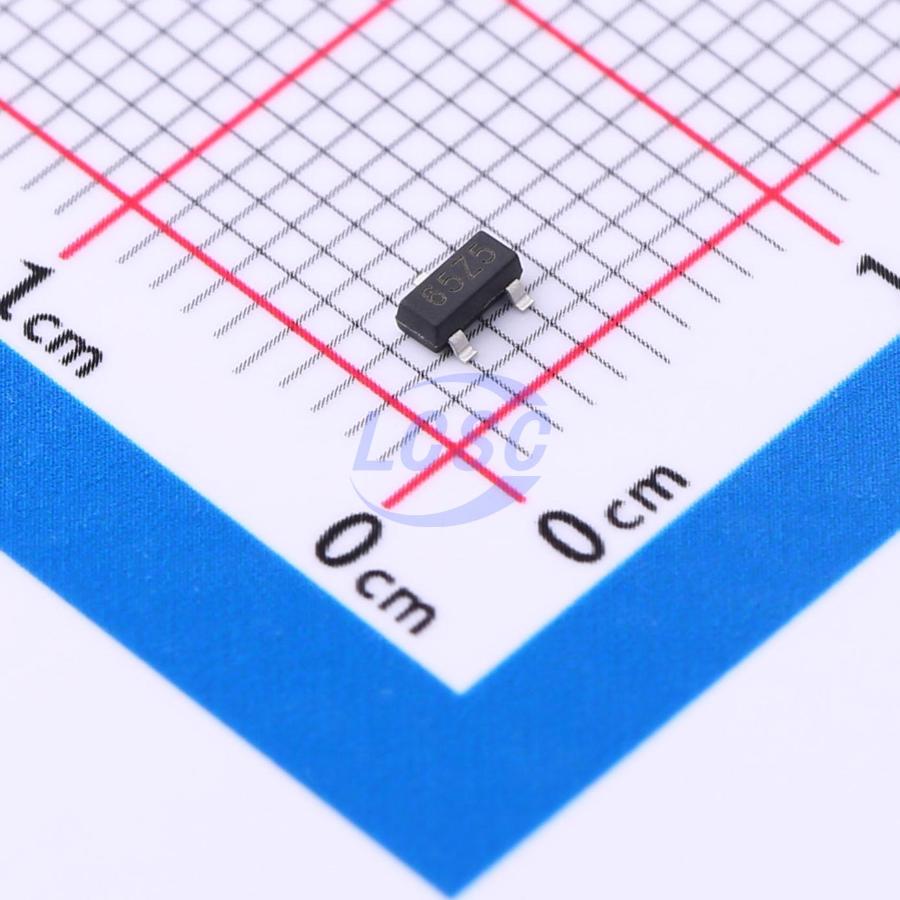

XC6206P302MR
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
Low Dropout Linear Regulator
- Manufacturer
- TWGMC
- Manufacturer part #
- XC6206P302MR
- Store part #
- C5250984
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,250 in stock
#C5250984
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.57 | ₹128.50 |
| 500+ | ₹2.00 | ₹1,000.00 |
| 3,000+ | ₹1.68 | ₹5,040.00 |
| 6,000+ | ₹1.49 | ₹8,940.00 |
| 24,000+ | ₹1.34 | ₹32,160.00 |
| 51,000+ | ₹1.24 | ₹63,240.00 |
50 × ₹2.57
₹128.50
excl. GST
₹151.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P302MR
₹128.50 for 50 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.033 g
Overview
The XC6206P Series are highly precise, low power consumption, 3 terminal, positive voltage regulators manufactured using CMOS technologies. The XC6206P Series consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter's foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin.
Applications
- Mobile Phones
- Battery powered equipment
- Portable game consoles
- Reference voltage sources
Key features
- Quiescent Current: 8μA
- Input Voltage Range: Max.6V
- Output Current: 300mA
- Low Dropout Voltage: 290mV@100mA (VOUT=3.3V)
- Output Voltage: 1.2~5.0V
- Output Voltage Accuracy: ±2% （Typ.） Low Power Consumption
