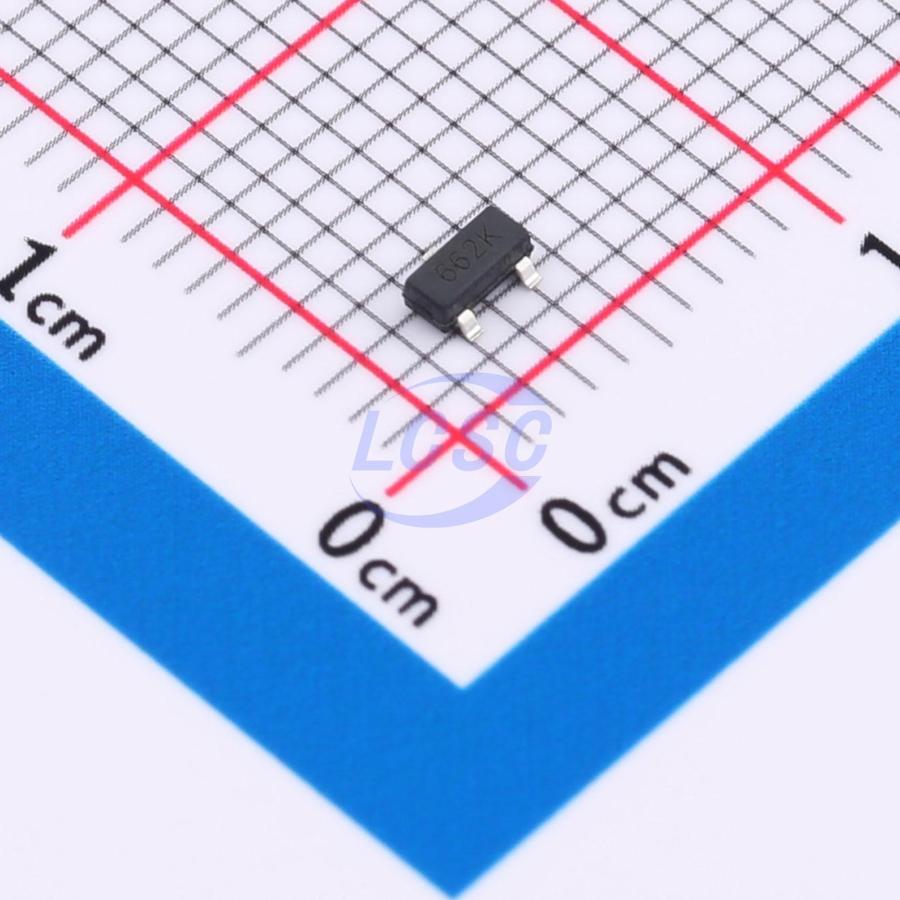

XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
TDSEMICDatasheet (PDF)
XC6206P332MR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 3.3V 200mA SOT-23-3
- Manufacturer
- TDSEMIC
- Manufacturer part #
- XC6206P332MR
- Store part #
- C22466437
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,200 in stock
#C22466437
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹4.17 | ₹208.50 |
| 500+ | ₹3.52 | ₹1,760.00 |
| 3,000+ | ₹3.18 | ₹9,540.00 |
| 6,000+ | ₹2.96 | ₹17,760.00 |
| 24,000+ | ₹2.78 | ₹66,720.00 |
| 51,000+ | ₹2.69 | ₹1,37,190.00 |
50 × ₹4.17
₹208.50
excl. GST
₹246.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P332MR
₹208.50 for 50 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 6.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.038 g
Overview
The XC6206 series are CMOS low-dropout voltage regulators featuring high ripple rejection ratio, low power consumption, and overcurrent/short-circuit protection. These devices offer a very low quiescent current (6.5μA Typ.), capable of delivering 200mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and low quiescent current, these devices are ideally suited for battery-powered applications requiring extended battery life, such as computers, consumer electronics, and industrial equipment.
Applications
- Battery-powered systems
- Portable consumer devices
- Cordless telephone equipment
- Portable instruments
- Wireless control systems
- Automotive electronics
- Portable/handheld computers
- Voltage reference sources
Key features
- High accuracy output voltage: ±2.5%
- Maximum input voltage up to 6.5V
- Output voltage: 1.5V~5.0V (step 0.1V)
- Usable as both regulator and voltage reference
- Ultra-low quiescent current (Typ. = 6.5μA)
- Package: SOT89-3, SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7133S-TD(55V)#C49023489TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 23,930 | ₹9.95 · 23,930 in stock | View |
 | HT7533S-TD(55V)#C49023493TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 6,380 | ₹10.49 · 6,380 in stock | View |
 | HT7333S#C22466238TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 2,430 | ₹9.71 · 2,430 in stock | View |
