TOREXDatasheet (PDF)

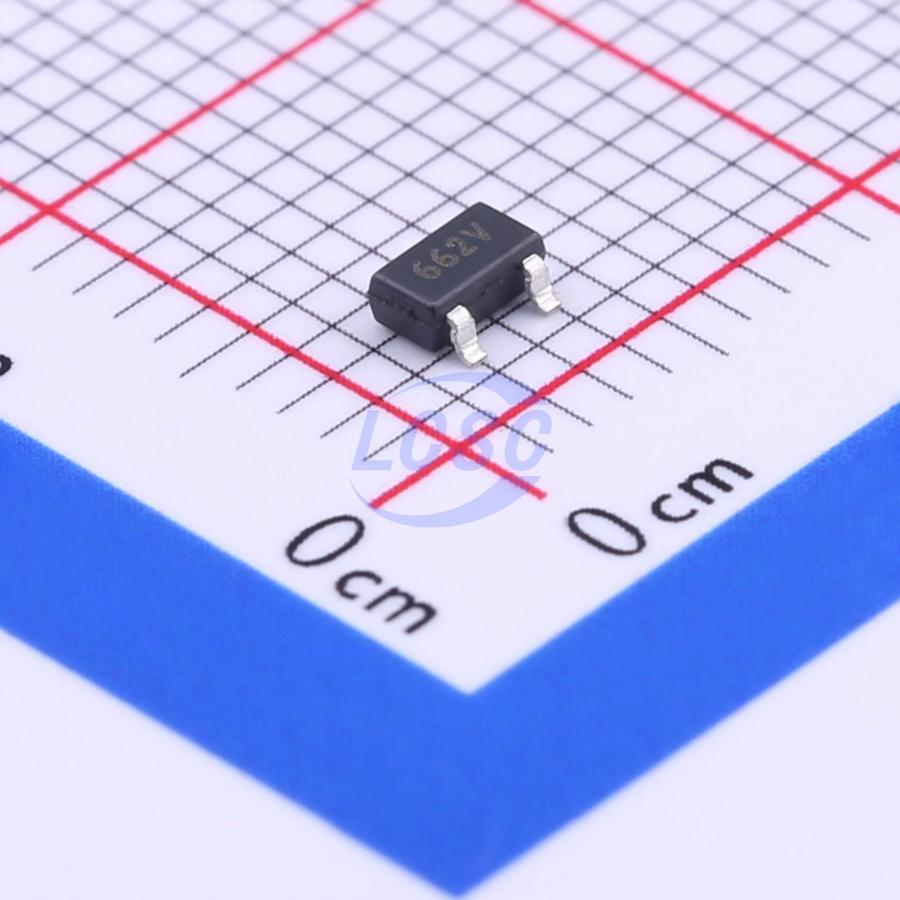

XC6206P332MR-G
3.3V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
PopularSOT-23-3LROHS3 CompliantActive
Low ESR Cap. Compatible Positive Voltage Regulators
- Manufacturer
- TOREX
- Manufacturer part #
- XC6206P332MR-G
- Store part #
- C5446
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,65,635 in stock
#C5446
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.08 | ₹95.40 |
| 50+ | ₹15.66 | ₹783.00 |
| 150+ | ₹13.90 | ₹2,085.00 |
| 500+ | ₹12.46 | ₹6,230.00 |
| 3,000+ | ₹11.96 | ₹35,880.00 |
| 6,000+ | ₹11.62 | ₹69,720.00 |
5 × ₹19.08
₹95.40
excl. GST
₹112.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P332MR-G
₹95.40 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The XC6206 series are highly precise, low power consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The currrent limiter's foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SOT-23, SOT-89, TO-92 and USP-6B packages are available.
Applications
- Battery powered equipment
- Reference voltage sources
- Cameras, video cameras
- Portable AV systems
- Mobile phones
- Portable games
- Cordless phones, wireless communication equipment
Key features
- Maximum Output Current : 200mA (3.0V type)
- Dropout Voltage : 250mV @ 100mA (3.0V type)
- Maximum Operating Voltage : 6.0V
- Output Voltage Range : 1.2V~5.0V (0.1V increments)
- Highly Accurate : ±2%@VOUT≧1.5V +30mV@VOUT<1.5V (+1% @VOUT>2.0V)
- Low Power Consumption : 1.0μA (TYP.)
- Low ESR Capacitor : Ceramic capacitor compatible
- Protection : Current Limit Circuit Built-in
- Operating Ambient Temperature : -40°C - +85°C
- Packages : SOT-23 SOT-89 TO-92 USP-6B
- Environmentally Friendly : EU RoHS Compliant, Pb Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP2138N-3.3TRG1#C154771DIODES · SOT-23-3 | DIODES | SOT-23-3 | 6,000 | ₹27.73 · 6,000 in stock | View |
 | LN1121P332MR-G#C183880NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 10 | ₹8.97 · 10 in stock | View |
 | S-1206B33-M3T1U#C383803ABLIC · SOT-23-3 | ABLIC | SOT-23-3 | 820 | ₹42.52 · 820 in stock | View |
 | BL8064CB3TR33#C94700BL · SOT-23 | BL | SOT-23 | 50,345 | ₹10.57 · 50,345 in stock | View |
 | SGM2034-3.3YN3G/TR#C5152714SGMICRO · SOT-23-3 | SGMICRO | SOT-23-3 | 4,068 | ₹64.73 · 4,068 in stock | View |
Questions about XC6206P332MR-G
What is the Manufacturer of This Product?
The manufacturer of this product is torex.
What is the Package Type of the Xc6206p332mr-g?
The package type of the xc6206p332mr-g is sot-23-3l.
What is the Minimum Order Quantity (moq) for This Product?
The minimum order quantity (moq) for this product is minimum 5 units, multiple of 5 units.
What is the Output Voltage of the Xc6206p332mr-g?
The output voltage of the xc6206p332mr-g is 3.3v.
What Are the Key Features of This Voltage Regulator?
The key features include short circuit protection and over current protection.
