TECH PUBLICDatasheet (PDF)

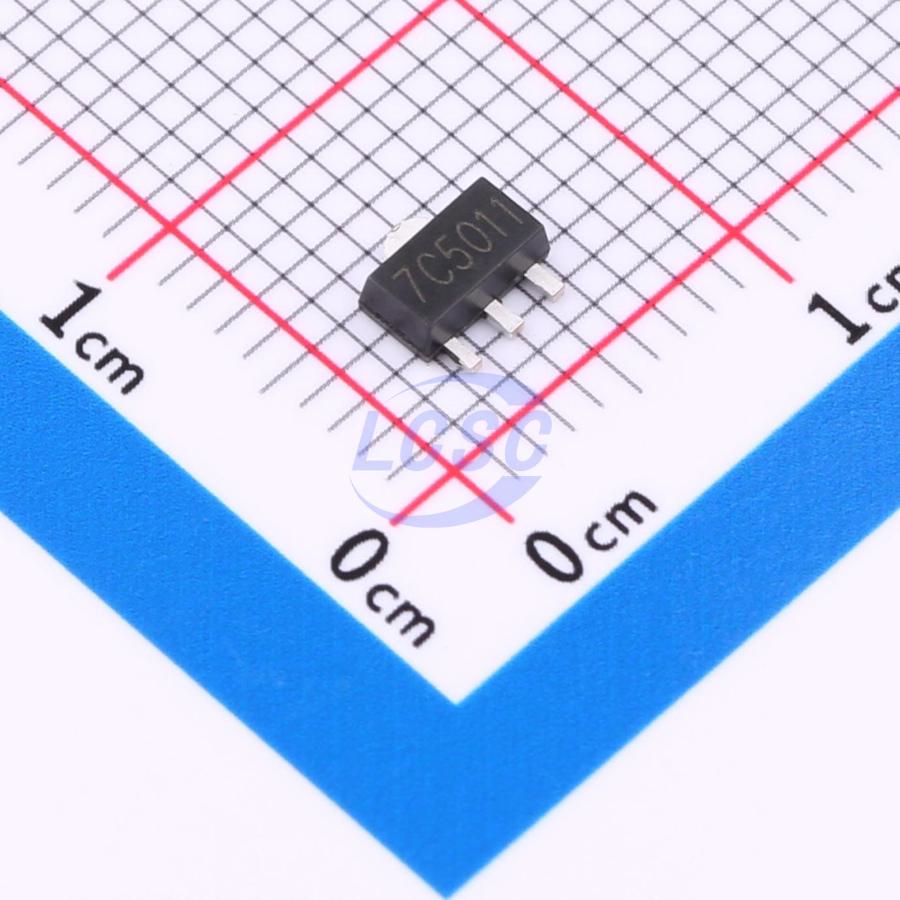

XC6206P502PR(1uA)
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-89-3
SOT-89-3RoHSActive
Ultra-low power consumption, low dropout, linear voltage regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- XC6206P502PR(1uA)
- Store part #
- C22435182
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
825 in stock
#C22435182
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.44 | ₹82.20 |
| 50+ | ₹13.01 | ₹650.50 |
| 150+ | ₹11.29 | ₹1,693.50 |
| 1,000+ | ₹9.99 | ₹9,990.00 |
| 2,000+ | ₹8.96 | ₹17,920.00 |
| 5,000+ | ₹8.44 | ₹42,200.00 |
5 × ₹16.44
₹82.20
excl. GST
₹97.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XC6206P502PR(1uA)
₹82.20 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 7V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.139 g
Overview
The XC6206P series are high-accuracy, low-power, low-dropout 3-terminal CMOS linear voltage regulators. They deliver 200mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Quiescent current is as low as 1.0μA (Typ.). Integrated overcurrent and short-circuit protection. Compatible with small, low-ESR ceramic capacitors. Using laser trimming technology, output voltage is selectable from 0.9V to 5.0V in 0.1V increments.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication devices, digital cameras, and digital audio equipment
Key features
- Maximum output current: 200mA
- Input-output voltage dropout: 200mV@100mA
- Maximum input voltage: 7V
- Output voltage range: 0.9V ~ 5.0V
- Low quiescent current: 1.0μA Typ.
- Protection features: overcurrent protection, short-circuit protection
- Output capacitor: compatible with ceramic capacitors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6201P502PR#C22371399TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 1,720 | ₹23.85 · 1,720 in stock | View |
 | TPMCP1702T-5002E/MB#C3040637TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | On request | ₹35.64 · 0 in stock | View |
 | TPAP2204R-5.0TRG1#C7202980TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 400 | ₹17.61 · 400 in stock | View |
 | TPAP2205-50Y#C19268130TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 905 | ₹21.92 · 905 in stock | View |
 | AMS1117-5.0S#C46473006TECH PUBLIC · SOT-89 | TECH PUBLIC | SOT-89 | 3,640 | ₹6.13 · 3,640 in stock | View |
