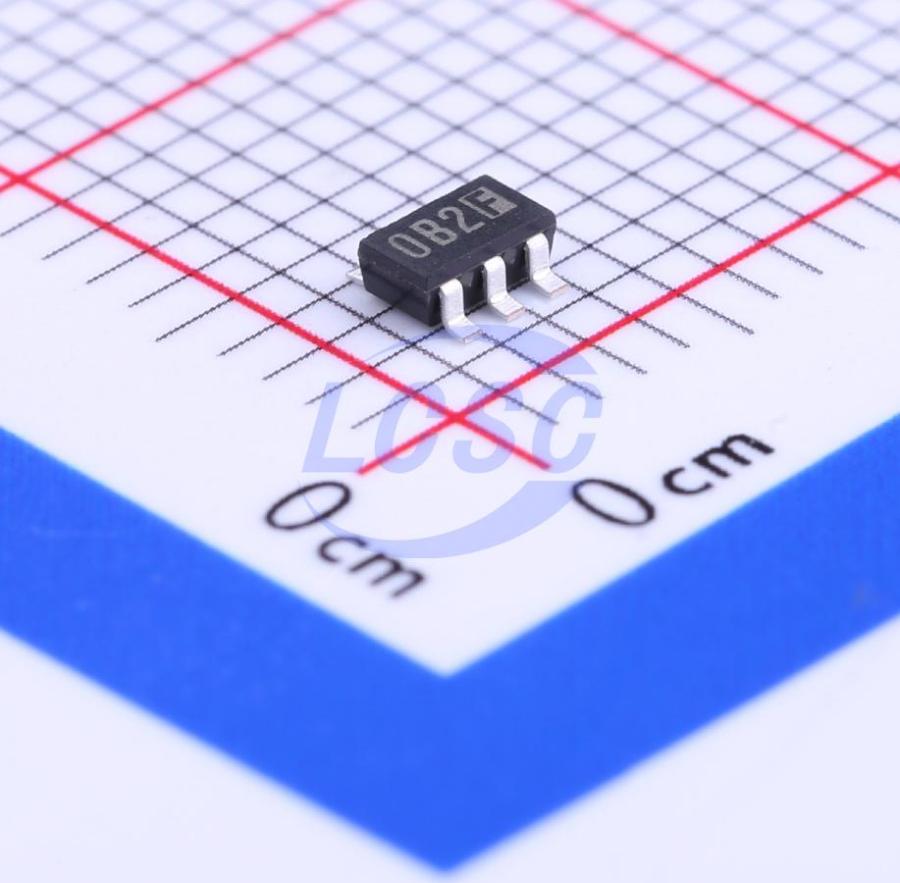

XC6210B332MR-G
3.3V Positive Fixed SOT-25-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25-5ROHS3 CompliantActive
High Current, High Speed LDO Regulators
- Manufacturer
- TOREX
- Manufacturer part #
- XC6210B332MR-G
- Store part #
- C47719
- Package / case
- SOT-25-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,901 in stock
#C47719
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.36 | ₹52.36 |
| 10+ | ₹41.29 | ₹412.90 |
| 30+ | ₹36.50 | ₹1,095.00 |
| 100+ | ₹30.43 | ₹3,043.00 |
| 500+ | ₹27.81 | ₹13,905.00 |
| 1,000+ | ₹26.30 | ₹26,300.00 |
1 × ₹52.36
₹52.36
excl. GST
₹61.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6210B332MR-G
₹52.36 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 55uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 700mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The XC6210 series are precise, low noise, high current, positive voltage low dropout regulators. They are fabricated using Torex’s CMOS process. The series features a voltage reference, an error amplifier, a current limiter, and a phase compensation circuit plus a driver transistor. With a low ON resistance driver transistor built into, batteries can be used until input-output voltage differential is minimal and can accordingly be used for a longer time. The IC's internal regulator circuit can be placed in stand-by mode via the CE function. In the stand-by mode, power consumption is greatly reduced.
Applications
- Optical disk drive
- Magnetic disk drive
- Digital still cameras / Camcorders
- Digital audio equipments
- Multi-function power supplies
Key features
- Maximum Output Current : More than 700mA (800mA limit, TYP.) (1.60V ≤ V_OUT ≤ 5.00V)
- Dropout Voltage : 50mV @ 100mA : 100mV @ 200mA
- Operating Voltage Range : 1.50V ~ 6.00V
- Output Voltage Range : 0.80V ~ 5.00V (0.05V increments)
- Highly Accurate : ±2% (1.55V ≤ V_OUT ≤ 5.00V) ±30mV (0.80V ≤ V_OUT ≤ 1.50V)
- Low Power Consumption : 35μA (TYP.)
- High Ripple Rejection : 60dB @ 1kHz
- Operational Ambient Temperature : -40℃ ~ +85℃
- CMOS
- Low ESR Capacitor Compatible
- Packages : SOT-25 SOT-89-5 USP-6B
- Environmentally Friendly : EU RoHS Compliant, Pb Free
