UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
TECH PUBLICDatasheet (PDF)

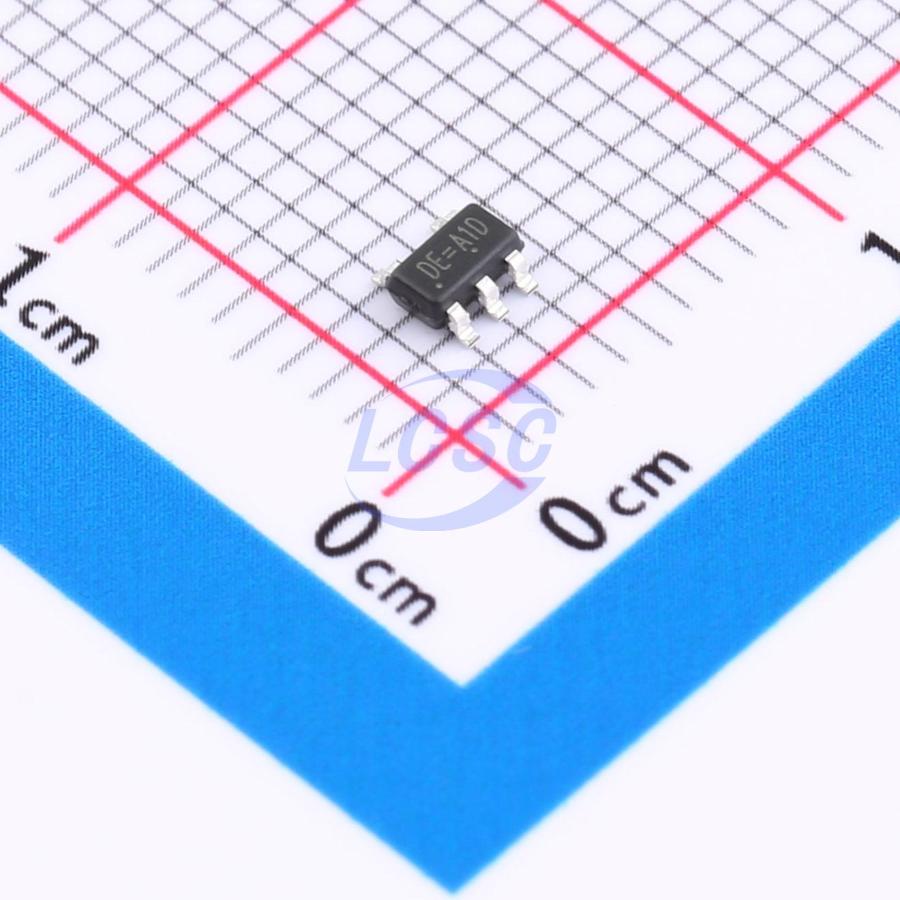

XC6219B332MR
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA High PSRR LDO Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- XC6219B332MR
- Store part #
- C2940621
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,170 in stock
#C2940621
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.30 | ₹83.00 |
| 100+ | ₹6.73 | ₹673.00 |
| 300+ | ₹5.94 | ₹1,782.00 |
| 3,000+ | ₹4.72 | ₹14,160.00 |
| 6,000+ | ₹4.26 | ₹25,560.00 |
| 9,000+ | ₹4.02 | ₹36,180.00 |
10 × ₹8.30
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6219B332MR
₹83.00 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
XC6219B is a high performance 300mA LDO regulator offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. XC6219 is available in 5pin SOT23-5 Package. The output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V
Applications
- CDM/GSM mobile phone
- PDAs /MP3
- Audio/Video equipment
Key features
- Quiescent Current: 70uA
- PSRR: 70dB@1KHz
- < 1uA current at shutdown mode
- Output current: 300mA(Typ.) SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP2019-3.3YN5#C2835423TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | On request | ₹10.04 · 0 in stock | View |
 | TP131C33S5#C2835424TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,155 | ₹12.15 · 3,155 in stock | View |
 | TPRT9193-33GB#C2835425TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 9,160 | ₹9.83 · 9,160 in stock | View |
 | TPXC6219B332MR#C2841430TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,780 | ₹9.74 · 3,780 in stock | View |
 | TPBL9198-33BAPRN#C7603380TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,940 | ₹8.32 · 2,940 in stock | View |
