XINLUDADatasheet (PDF)

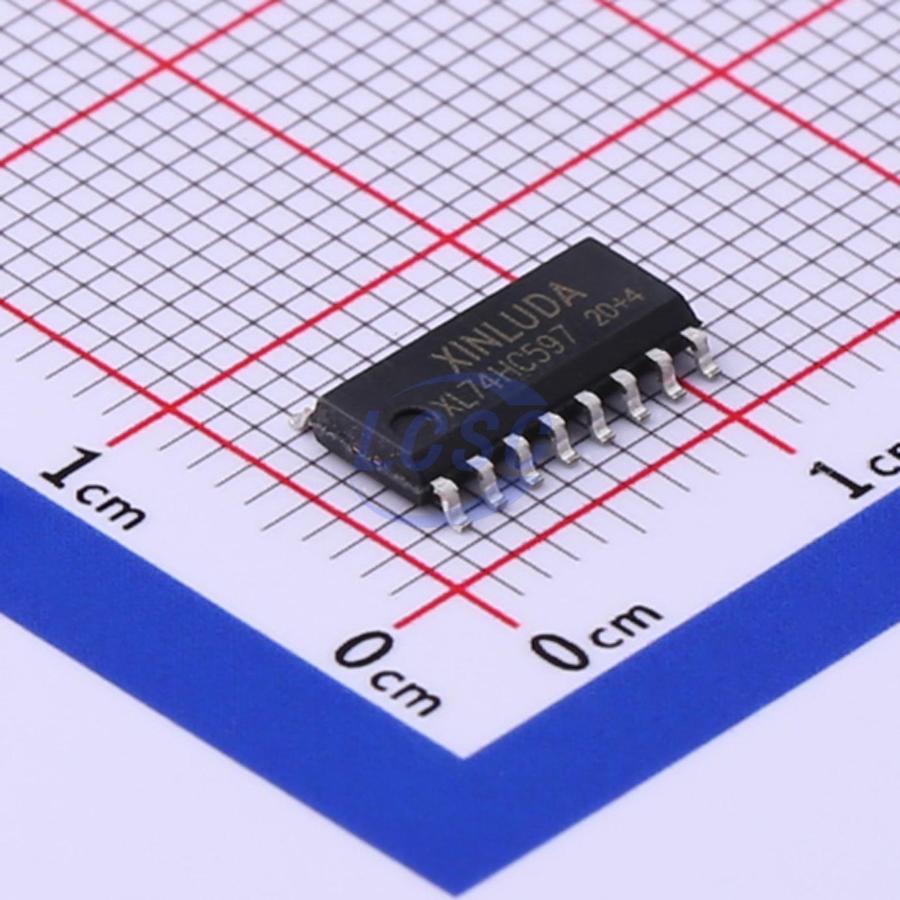

XL74HC597
2V~6V 25mA 37ns@6V,50pF Parallel-to-Serial SOP-16 Shift Registers
SOP-16RoHSActive
8-bit shift register with input flip-flops
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL74HC597
- Store part #
- C521193
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,885 in stock
#C521193
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.75 | ₹158.75 |
| 50+ | ₹24.85 | ₹1,242.50 |
| 150+ | ₹21.88 | ₹3,282.00 |
| 500+ | ₹18.18 | ₹9,090.00 |
| 2,500+ | ₹16.76 | ₹41,900.00 |
| 5,000+ | ₹15.78 | ₹78,900.00 |
5 × ₹31.75
₹158.75
excl. GST
₹187.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL74HC597
₹158.75 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Voltage - Supply
- 2V~6V
- Series
- 74HC
- Output Current
- 25mA
- Features
- Asynchronous clear function;Asynchronous parallel load function
- Propagation Delay
- 37ns@6V,50pF
- Function
- Parallel-to-Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.316 g
Overview
The XD/XL74HC597 is an 8-bit shift register with input flip-flops. It consists of an 8-bit storage register feeding a parallel-in, serial-out 8-bit shift register. Both the storage register and the shift register have positive edge-triggered clocks. The shift register also has direct load (from storage) and clear inputs. Inputs include clamp diodes that enable the use of current limiting resistors to interface in puts to voltages in excess of VCC.
Key features
- Input levels:
- For XD/XL74HC597: CMOS level
- 8-bit parallel storage register inputs
- Shift register has direct overriding load and clear
- Three kind of available packages:
- SOP16 (XL74HC597)
- TSSOP16 (XL74HC597-TS)
- DIP16 (XD74HC597)
- ESD protection:
- HBM EIA/JESD22-A114F exceeds 2000 V
- MM EIA/JESD22-A115-A exceeds 200 V
