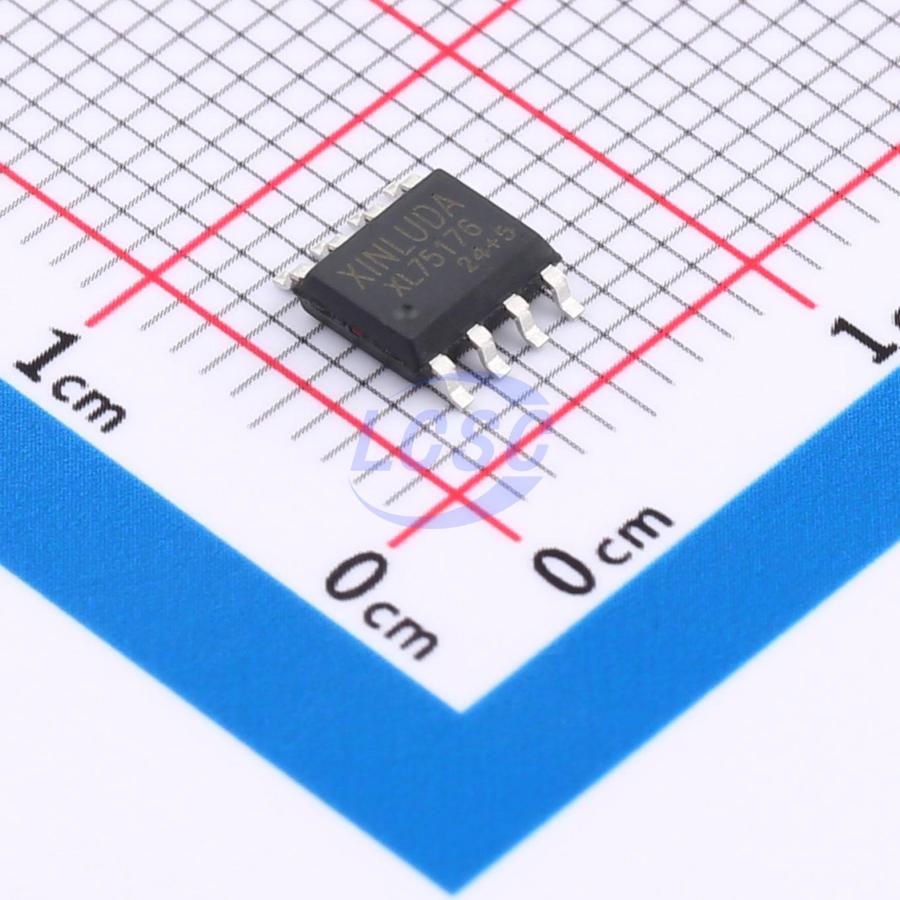

XL75176AD

The XL75176AD/XL75176AP differential bus transceiver is a monolithic integrated circuit designed for bidirectional data communication on multipoint bus-transmission lines. The XL75176AD/XL75176AP combines a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, that can be externally connected together to function as a direction control. The driver differential outputs and the receiver differential inputs are connected internally to form differential input/output (I/O) bus ports that are designed to offer minimum loading to the bus whenever the driver is disabled or VCC = 0. These ports feature wide positive and negative common-mode voltage ranges making the device suitable for party-line applications. The driver is designed to handle loads up to 60 mA of sink or source current. The driver features positive and negative-current limiting and thermal shutdown for protection from line fault conditions. Thermal shutdown is designed to occur at a junction temperature of approximately 150°C. The receiver features a minimum input impedance of 12kΩ, an input sensitivity of ±200 mV, and a typical input hysteresis of 50 mV. The XL75176AD/XL75176AP is characterized for operation from -40°C to 85°C.

Applications

• Low Speed RS485 communication (5 Mbps or less)

Key features

• Bidirectional Transceiver - Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments
• 3-State Driver and Receiver Outputs
• Individual Driver and Receiver Enables
• Wide Positive and Negative Input/Output Bus Voltage Ranges
• Driver Output Capability ±60 mA Max
• Thermal-Shutdown Protection
• CAN bus communication speed up to 1 Mbps
• Driver Positive-Current Limiting and Negative-Current Limiting
• Receiver Input Impedance 12kΩ Min
• Receiver Input Sensitivity ±200 mV
• Receiver Input Hysteresis 50 mV Typ
• Operates From Single 5-V Supply
• Package option: XL75176AD (SOP8), XL75176AP (DIP8)
