XRDatasheet (PDF)

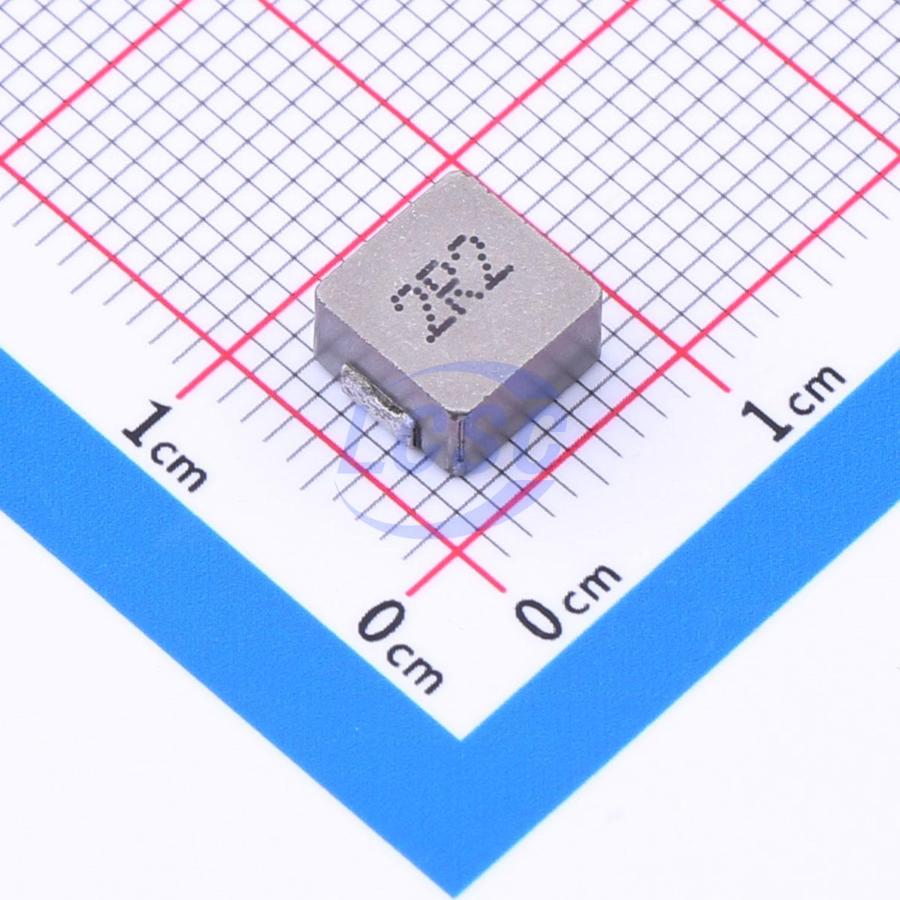

XR0640-2R2M
9A 2.2uH ±20% 11A 14mΩ Molded inductor SMD,7x6.6mm Fixed Inductors
SMD,7x6.6mmRoHSActive
FIXED IND 2.2uH 9A 14mΩ SMD,0640
- Manufacturer
- XR
- Manufacturer part #
- XR0640-2R2M
- Store part #
- C5339434
- Package / case
- SMD,7x6.6mm
- Category
- Fixed Inductors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C5339434
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.81 | ₹94.05 |
| 50+ | ₹14.78 | ₹739.00 |
| 150+ | ₹13.04 | ₹1,956.00 |
| 1,000+ | ₹10.89 | ₹10,890.00 |
| 2,000+ | ₹9.92 | ₹19,840.00 |
| 5,000+ | ₹9.34 | ₹46,700.00 |
5 × ₹18.81
₹94.05
excl. GST
₹110.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XR0640-2R2M
₹94.05 for 5 + GST
Specifications
- Current Rating
- 9A
- Inductance
- 2.2uH
- Tolerance
- ±20%
- Current - Saturation(Isat)
- 11A
- DC Resistance(DCR)
- 14mΩ
- Type
- Molded inductor
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.3 g
Overview
Applications
- Notebooks and PCs
- Switches and servers
- Base stations
- DC/DC converters
- Battery-powered devices
- SSD modules
Key features
- High rated current
- Frequency up to 3 MHz
- Maximum operating temperature of 125°C
- Low core loss
- Extremely low audible noise due to molded construction
- Halogen-free and RoHS compliant
