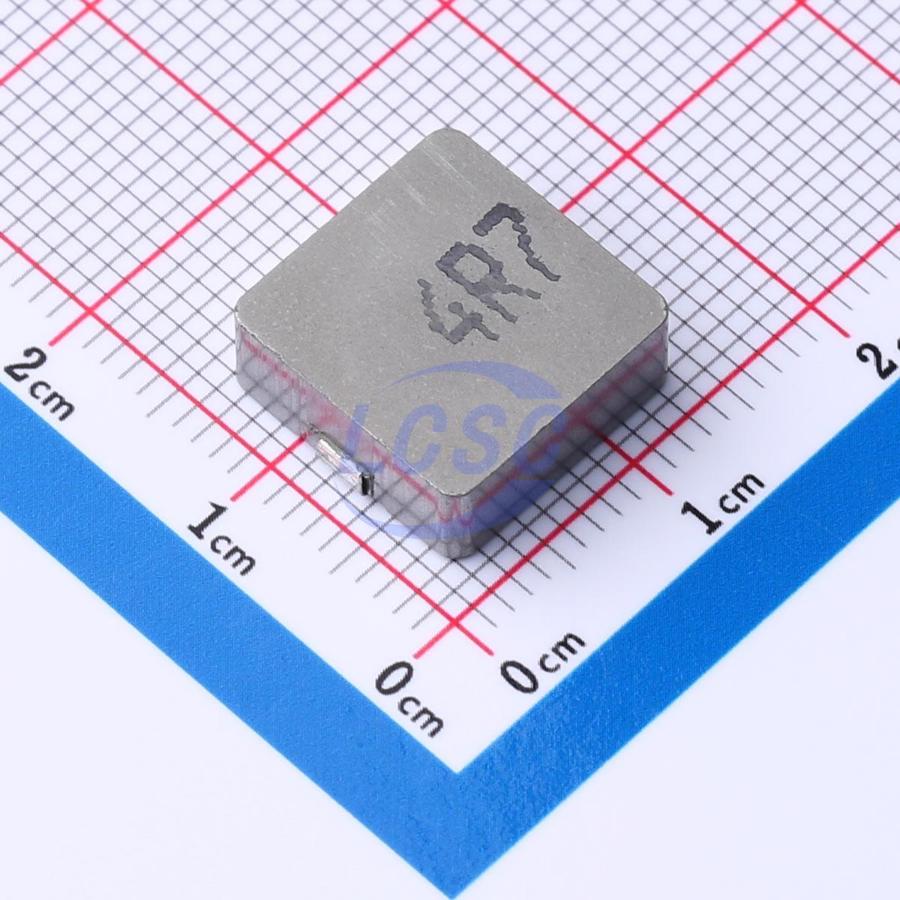

XR1250-4R7M

13A 4.7uH ±20% 20A 9mΩ Molded inductor SMD,13.5x12.6mm Fixed Inductors

SMD,13.5x12.6mmRoHSActive

FIXED IND 4.7uH 13A 9mΩ SMD,13.5x12.6mm

Manufacturer: XR
Manufacturer part #: XR1250-4R7M
Store part #: C5307723
Package / case: SMD,13.5x12.6mm
Category: Fixed Inductors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

418 in stock

#C5307723

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹53.30	₹53.30
10+	₹42.26	₹422.60
30+	₹37.49	₹1,124.70
100+	₹31.42	₹3,142.00
500+	₹27.52	₹13,760.00
1,000+	₹25.79	₹25,790.00

Quantity (min 1)

1 × ₹53.30

₹53.30

excl. GST

₹62.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

XR1250-4R7M

₹53.30 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating: 13A
Inductance: 4.7uH
Tolerance: ±20%
Current - Saturation(Isat): 20A
DC Resistance(DCR): 9mΩ
Type: Molded inductor

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 5.07 g

Overview

Applications

Notebooks and PCs
Switches and servers
Base stations
DC/DC converters
Battery-powered devices
SSD modules

Key features

High rated current
Frequency up to 3 MHz
Maximum total operating temperature 125°C
Low core loss
Molded construction for ultra-low audible noise
Halogen-free and RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	XR1265-4R7M#C5307727XR · SMD,13.5x12.6mm	XR	SMD,13.5x12.6mm	215	₹25.18 · 215 in stock	View
	XR1240-4R7M#C5339453XR · SMD,13.5x12.8mm	XR	SMD,13.5x12.8mm	503	₹52.95 · 503 in stock	View
	XRFWHP1040G-4R7M#C51484123XR · SMD,10.2x10mm	XR	SMD,10.2x10mm	43	₹156.19 · 43 in stock	View
	XRFWHP0760G-4R7M#C51484068XR · SMD,7.2x7mm	XR	SMD,7.2x7mm	158	₹88.77 · 158 in stock	View
