YezhanDatasheet (PDF)
YLRY12-2-10F

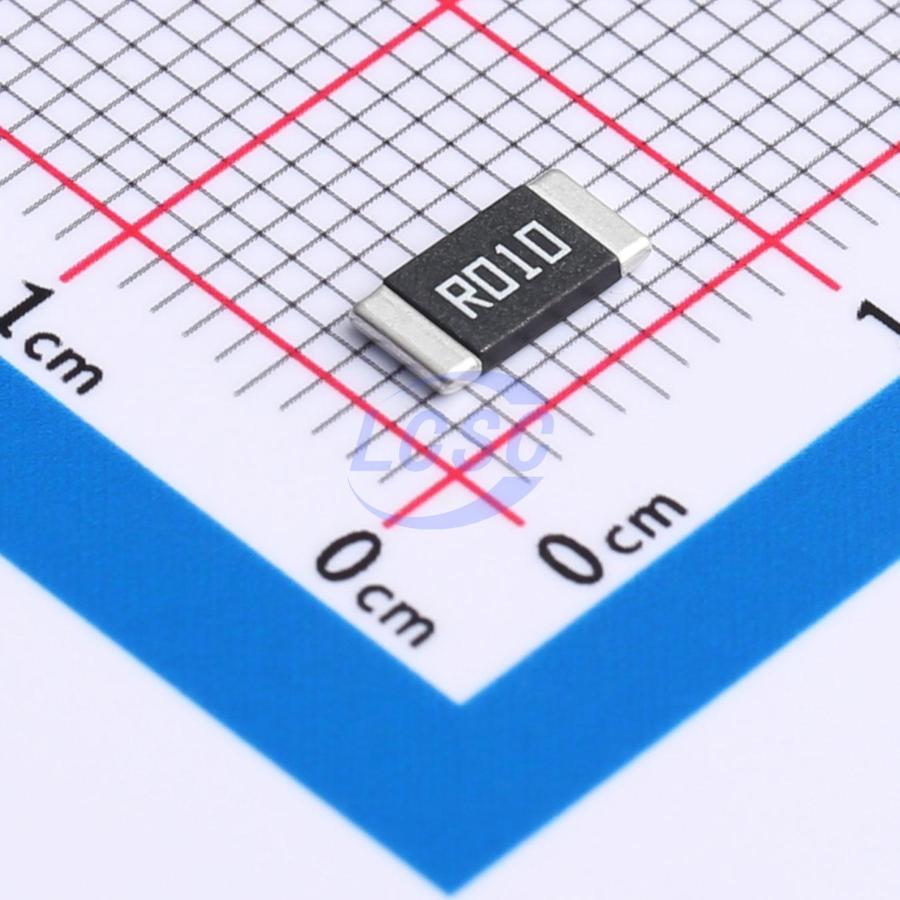

10mΩ 2W Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount
2512RoHSActive
RES 10mΩ ±1% 2W 2512
- Manufacturer
- Yezhan
- Manufacturer part #
- YLRY12-2-10F
- Store part #
- C20608726
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60,730 in stock
#C20608726
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.31 | ₹1,293.00 |
| 1,000+ | ₹3.78 | ₹3,780.00 |
| 4,000+ | ₹3.36 | ₹13,440.00 |
| 8,000+ | ₹3.15 | ₹25,200.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
YLRY12-2-10F
₹64.20 for 10 + GST
Specifications
- Resistance
- 10mΩ
- Power(Watts)
- 2W
- Type
- Current Sense Resistor
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.083 g
Overview
Applications
- Current sensing
- Overcurrent protection
- Servo motor control circuits
- Variable frequency power supplies
- Electronic control systems
- Lithium battery control boards
Key features
- Resistance range: 0.5~500mΩ
- Tolerance: ±1%, ±2%, ±5%
- Power rating: 1W, 2W, 3W
- Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
- Operating temperature range: -55℃~170℃
- Low inductance: 5nH (1MHz)
- Insulation resistance: ≥100MΩ
- Withstanding voltage: 500V
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YLR12-2-10F-W#C469376Yezhan · 2512 | Yezhan | 2512 | 7,745 | ₹13.11 · 7,745 in stock | View |
 | YLRY12-3-10F#C20608755Yezhan · 2512 | Yezhan | 2512 | 64,400 | ₹7.69 · 64,400 in stock | View |
 | YLR12-3-10F-W#C489549Yezhan · 2512 | Yezhan | 2512 | 10,850 | ₹7.73 · 10,850 in stock | View |
