YezhanDatasheet (PDF)
YLRY12-2-2F-K

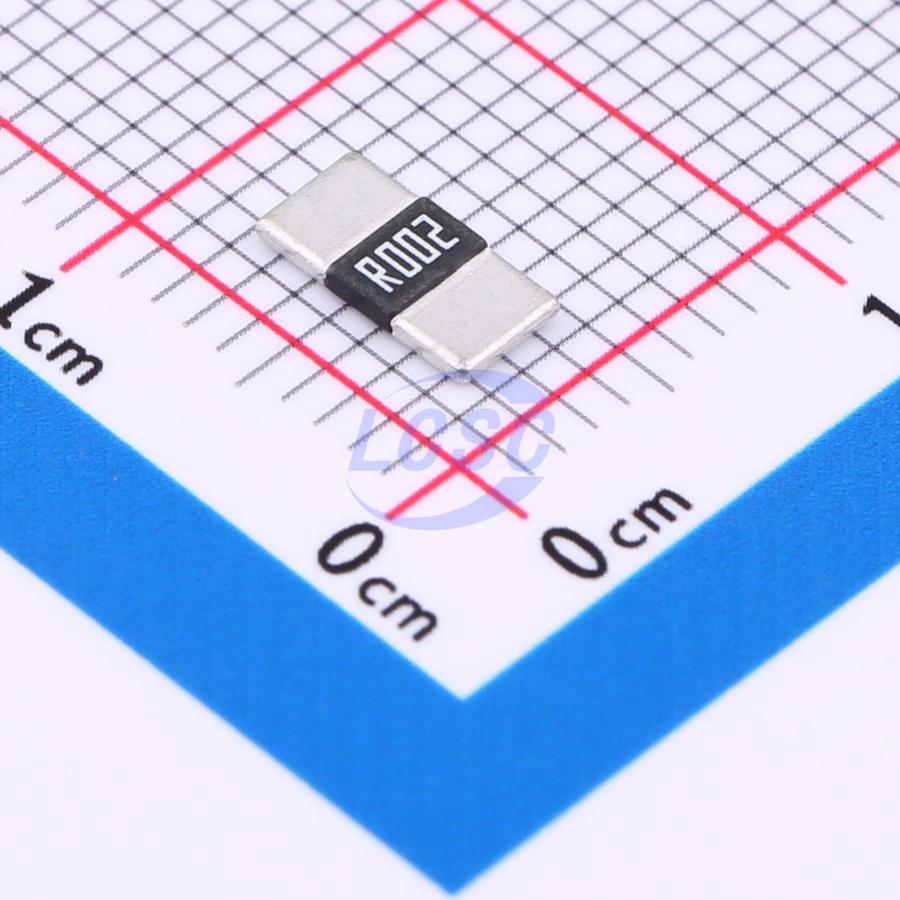

2W 2mΩ Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount
2512RoHSActive
RES 2mΩ ±1% 2W 2512
- Manufacturer
- Yezhan
- Manufacturer part #
- YLRY12-2-2F-K
- Store part #
- C20608739
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,005 in stock
#C20608739
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.27 | ₹56.35 |
| 50+ | ₹9.01 | ₹450.50 |
| 150+ | ₹7.89 | ₹1,183.50 |
| 500+ | ₹7.04 | ₹3,520.00 |
| 2,500+ | ₹6.36 | ₹15,900.00 |
| 4,000+ | ₹6.02 | ₹24,080.00 |
5 × ₹11.27
₹56.35
excl. GST
₹66.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
YLRY12-2-2F-K
₹56.35 for 5 + GST
Specifications
- Power(Watts)
- 2W
- Resistance
- 2mΩ
- Type
- Current Sense Resistor
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.113 g
Overview
Applications
- Current sensing
- Overcurrent protection
- Servo motor control circuits
- Variable frequency power supplies
- Electronic control systems
- Lithium battery control boards
Key features
- Resistance range: 0.5~500mΩ
- Tolerance: ±1%, ±2%, ±5%
- Power rating: 1W, 2W, 3W
- Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
- Operating temperature range: -55℃~170℃
- Low inductance: 5nH (1MHz)
- Insulation resistance: ≥100MΩ
- Withstanding voltage: 500V
- RoHS compliant
