Yezhan

YLRY12-2-3F

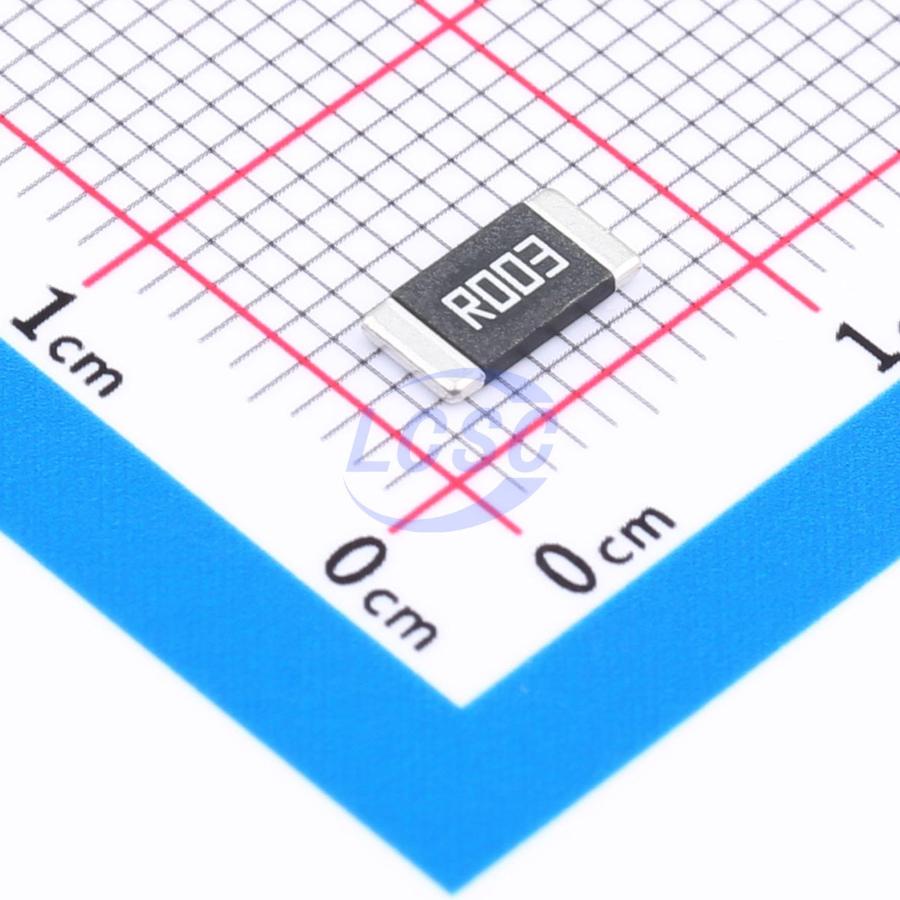

2W 3mΩ Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount

2512RoHSActive

RES 3mΩ ±1% 2W 2512

Manufacturer: Yezhan
Manufacturer part #: YLRY12-2-3F
Store part #: C20608741
Package / case: 2512
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,340 in stock

#C20608741

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹6.54	₹65.40
100+	₹5.12	₹512.00
300+	₹4.42	₹1,326.00
1,000+	₹3.89	₹3,890.00
4,000+	₹3.47	₹13,880.00
8,000+	₹3.25	₹26,000.00

Quantity (min 10, multiples of 10)

10 × ₹6.54

₹65.40

excl. GST

₹77.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

YLRY12-2-3F

₹65.40 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Power(Watts): 2W
Resistance: 3mΩ
Type: Current Sense Resistor
Tolerance: ±1%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.096 g

Overview

Applications

Current sensing
Overcurrent protection
Servo motor control circuits
Variable frequency power supplies
Electronic control systems
Lithium battery control boards

Key features

Resistance range: 0.5~500mΩ
Tolerance: ±1%, ±2%, ±5%
Power rating: 1W, 2W, 3W
Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
Operating temperature range: -55℃~170℃
Low inductance: 5nH (1MHz)
Insulation resistance: ≥100MΩ
Withstanding voltage: 500V
RoHS compliant
