DIODESDatasheet (PDF)

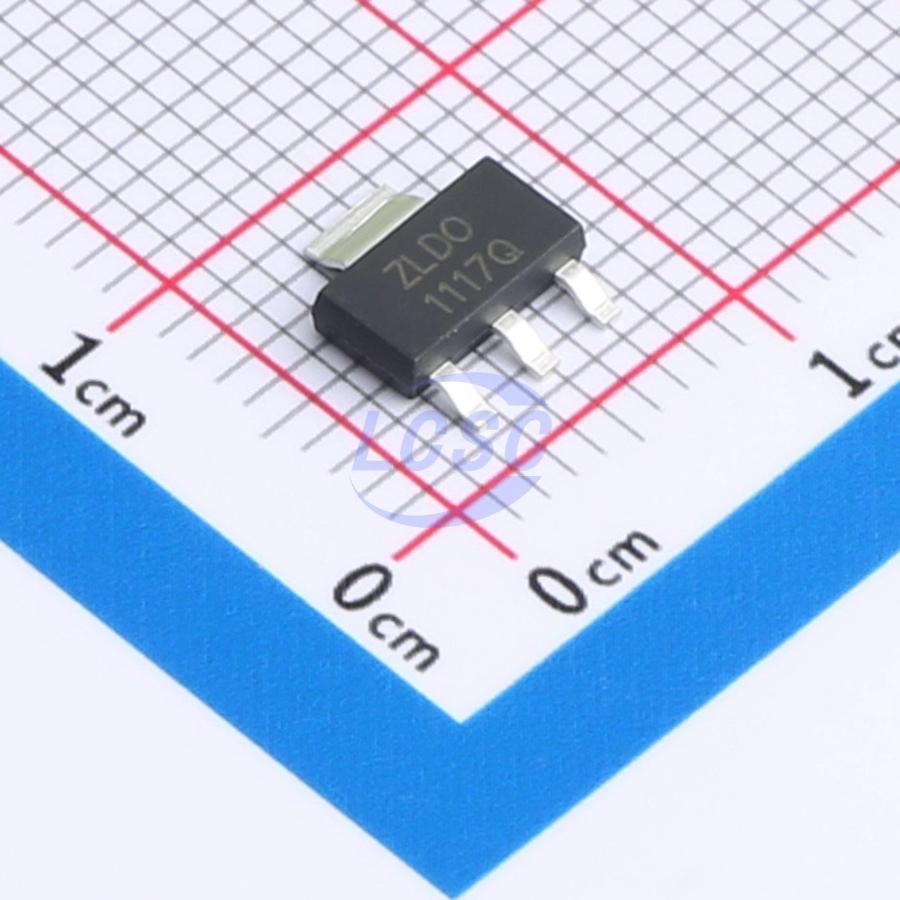

ZLDO1117QGTA
1.225V~5.05V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
1A Low Dropout Positive Voltage Regulator, Fixed and Adjustable Outputs
- Manufacturer
- DIODES
- Manufacturer part #
- ZLDO1117QGTA
- Store part #
- C5632670
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
770 in stock
#C5632670
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.95 | ₹239.75 |
| 50+ | ₹38.06 | ₹1,903.00 |
| 150+ | ₹33.83 | ₹5,074.50 |
| 1,000+ | ₹28.54 | ₹28,540.00 |
| 2,000+ | ₹26.18 | ₹52,360.00 |
| 5,000+ | ₹24.78 | ₹1,23,900.00 |
5 × ₹47.95
₹239.75
excl. GST
₹282.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZLDO1117QGTA
₹239.75 for 5 + GST
Specifications
- Output Voltage
- 1.225V~5.05V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 1A
- Output Type
- Adjustable
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.205 g
Overview
The ZLDO1117Q is a low-dropout positive adjustable or fixed-mode regulator with 1A output current capability. The ZLDO1117Q has a 2% tolerance across the industrial temperature range and is guaranteed to have lower than 1.2V dropout at full load current making it ideal to provide well-regulated outputs of 1.2V to 5.0V with input supply voltages up to 18V. The ZLDO1117Q is ideally suited to provide well-regulated supplies for low-voltage IC applications such as high-speed bus termination and low-current 3.3V logic supply across the whole industrial temperature range. The ZLDO1117Q has been qualified to AEC-Q100 Grade 2 and is automotive compliant supporting PPAPs.
Applications
- 1A I/O – 1.8V Core Regulator
Key features
- 1.2V Maximum Dropout at Full Load Current
- 2% Tolerance Overtemperature, Line and Load Variations
- Fast Transient Response
- Output Current Limiting
- Built-in Thermal Shutdown
- Good Noise Rejection
- Suitable for Use with MLCC Capacitors
- -40°C to +105°C Ambient Temperature Range
- Available in TO252 (DPAK) and SOT223 with “Green” Molding Compound (No Br, Sb)
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
