JSMSEMIDatasheet (PDF)

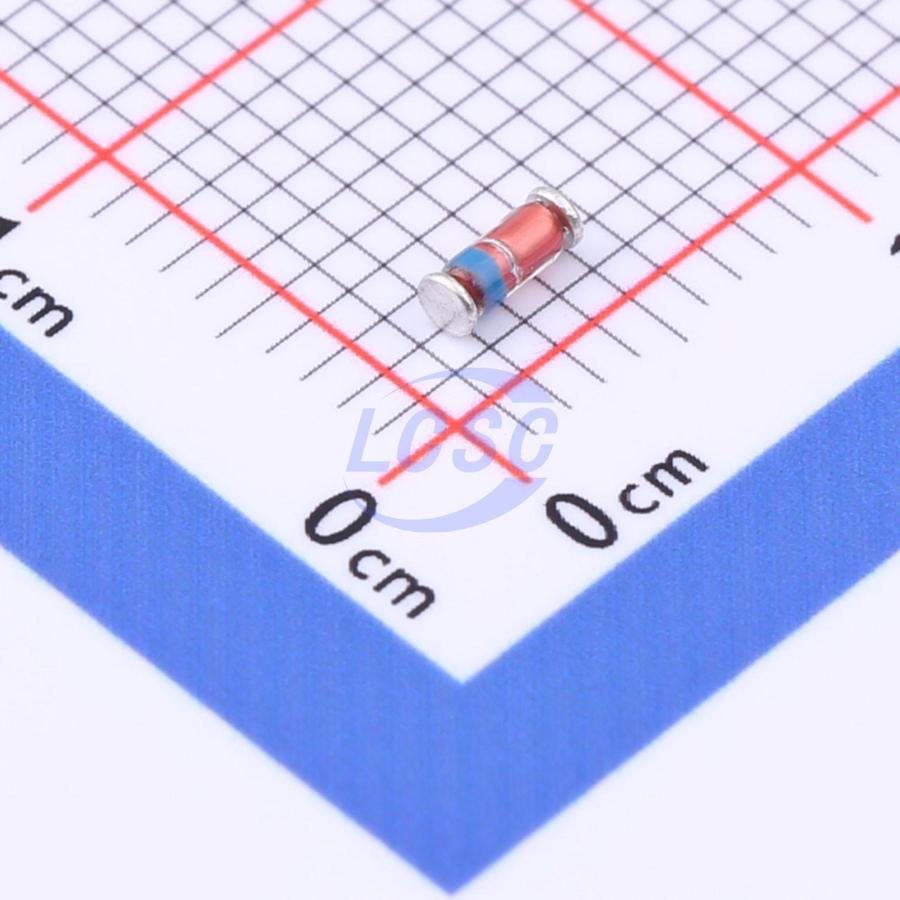

ZMM11
Zener Diode 11V 500mW Surface Mount LL-34
LL-34ROHS CompliantActive
DIODE ZENER 11V 500mW LL-34
- Manufacturer
- JSMSEMI
- Manufacturer part #
- ZMM11
- Store part #
- C2857261
- Package / case
- LL-34
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,350 in stock
#C2857261
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.48 | ₹74.00 |
| 500+ | ₹1.16 | ₹580.00 |
| 2,500+ | ₹0.9923 | ₹2,480.75 |
| 5,000+ | ₹0.8864 | ₹4,432.00 |
| 25,000+ | ₹0.7938 | ₹19,845.00 |
| 75,000+ | ₹0.7409 | ₹55,567.50 |
50 × ₹1.48
₹74.00
excl. GST
₹87.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZMM11
₹74.00 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 10.4V~11.6V
- Zener Voltage(Nom)
- 11V
- Impedance(Zzk)
- 70Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.042 g
Overview
Key features
- MiniMELF package, ideal for automatic insertion. These diodes are also available in DO-35 package, type BZX55C...
- LL-34
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZMM12#C2857260JSMSEMI · LL-34 | JSMSEMI | LL-34 | 11,600 | ₹1.56 · 11,600 in stock | View |
 | BZV55-C12,115-JSM#C53114180JSMSEMI · LL-34 | JSMSEMI | LL-34 | 2,300 | ₹2.20 · 2,300 in stock | View |
 | ZMM10V#C2857262JSMSEMI · LL-34 | JSMSEMI | LL-34 | 2,900 | ₹1.43 · 2,900 in stock | View |
 | BZV55-C10,115-JSM#C53114211JSMSEMI · SOD-80 | JSMSEMI | SOD-80 | 2,350 | ₹2.34 · 2,350 in stock | View |
