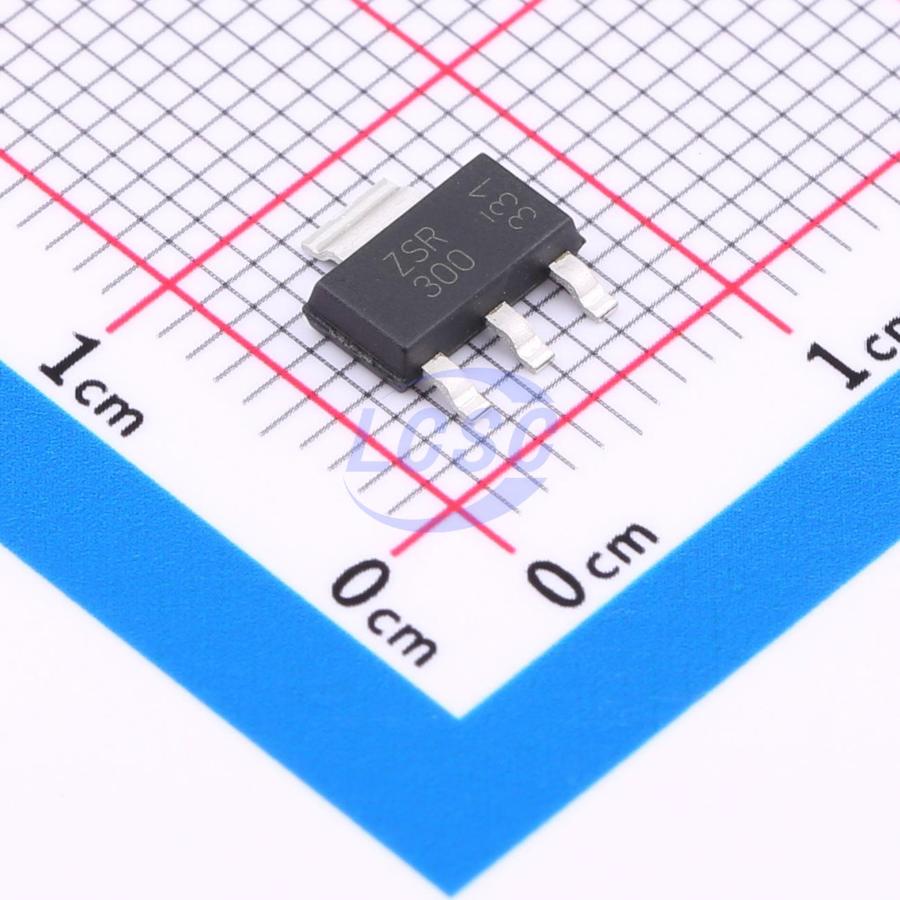

ZSR300GTA
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-223
SOT-223ROHS CompliantDiscontinued
3.0 to 12 volt fixed positive local voltage regulator
- Manufacturer
- DIODES
- Manufacturer part #
- ZSR300GTA
- Store part #
- C460468
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C460468
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.37 | ₹79.37 |
| 10+ | ₹77.63 | ₹776.30 |
| 30+ | ₹76.55 | ₹2,296.50 |
| 100+ | ₹75.46 | ₹7,546.00 |
1 × ₹79.37
₹79.37
excl. GST
₹93.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZSR300GTA
₹79.37 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -55℃~+125℃@(Ta)
- Supply Current (Iq)
- 350uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 20V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
Key features
- Internal current limiting and thermal shutdown protect the device against damage
- High-power SMT package for space-constrained applications
- Suitable for point-of-load voltage regulation and general voltage regulation applications
- Superior performance compared to other point-of-load voltage regulators
- Initial output voltage accuracy within 2.5%, typical quiescent current 350μA
- Output voltage variation with input voltage and load current far lower than competing devices
- Fully stable with no external components required
- Output current up to 200mA
- Initial tolerance 2.5%
- Low quiescent current 600μA
- Temperature range -55 to 125℃
- No external components required
- Internal thermal shutdown
- Internal short-circuit current limiting
- High-power SOT223 package
