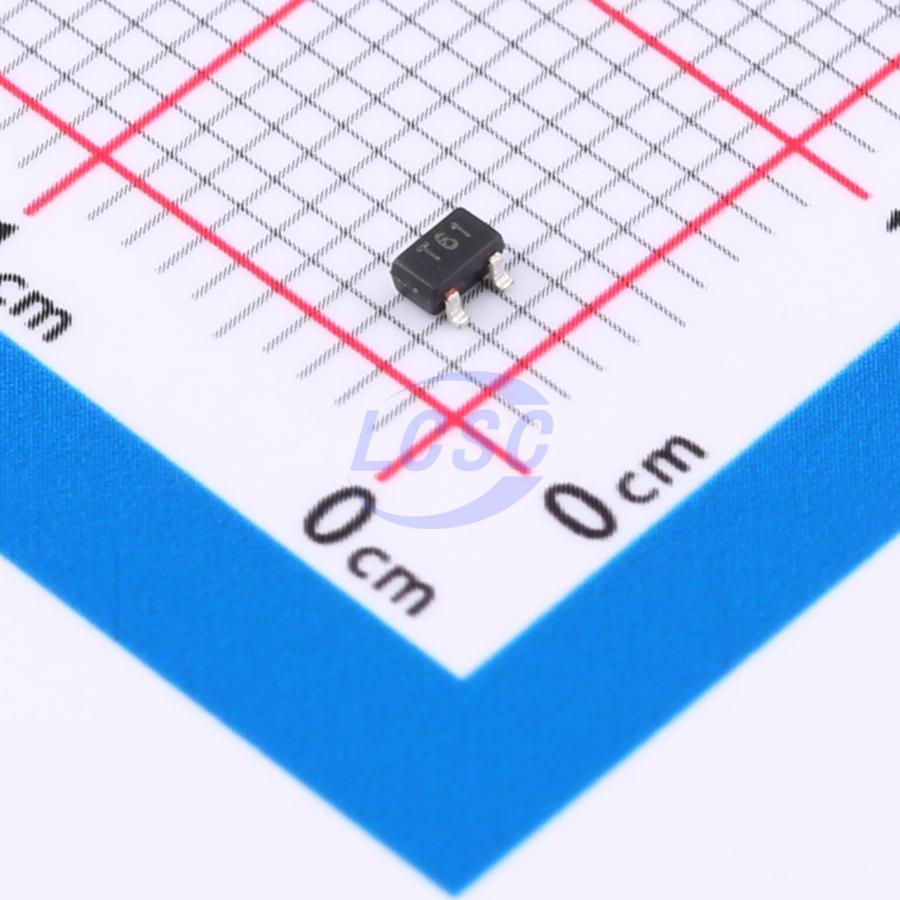

ZUMT617TA DIODES

ZUMT617TA

Bipolar (BJT) Transistor NPN 15V 1.5A 180MHz 500mW Surface Mount SOT-323

SOT-323ROHS3 CompliantActive

TRANS NPN 15V 1.5A SOT-323

Manufacturer: DIODES
Manufacturer part #: ZUMT617TA
Store part #: C5245558
Package / case: SOT-323
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

95 in stock

#C5245558

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.34	₹106.70
50+	₹20.88	₹1,044.00
150+	₹20.57	₹3,085.50
500+	₹20.28	₹10,140.00

Quantity (min 5, multiples of 5)

5 × ₹21.34

₹106.70

excl. GST

₹125.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 100 per reel

ZUMT617TA

₹106.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 10nA
Operating Temperature: -55℃~+150℃
Transition frequency(fT): 180MHz
Collector - Emitter Voltage VCEO: 15V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 200
Pd - Power Dissipation: 500mW
Current - Collector(Ic): 1.5A
Configuration: Standalone
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 205mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 100 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

Applications

DC-DC converter boost functions
Motor drive functions

Key features

Ic CONT 1.5A
5A Peak Pulse Current
Excellent HFE Characteristics Up To 5A (pulsed)
Extremely Low Equivalent On Resistance; RCE(sat)

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	SS8050(RANGE:200-350)#C109068JSCJ · SOT-323	JSCJ	SOT-323	65,340	₹3.92 · 65,340 in stock	View
	SS8050#C2891624YONGYUTAI · SOT-323	YONGYUTAI	SOT-323	3,320	₹4.26 · 3,320 in stock	View
	SS8050W#C5330380Slkor · SOT-323	Slkor	SOT-323	2,200	₹2.45 · 2,200 in stock	View
