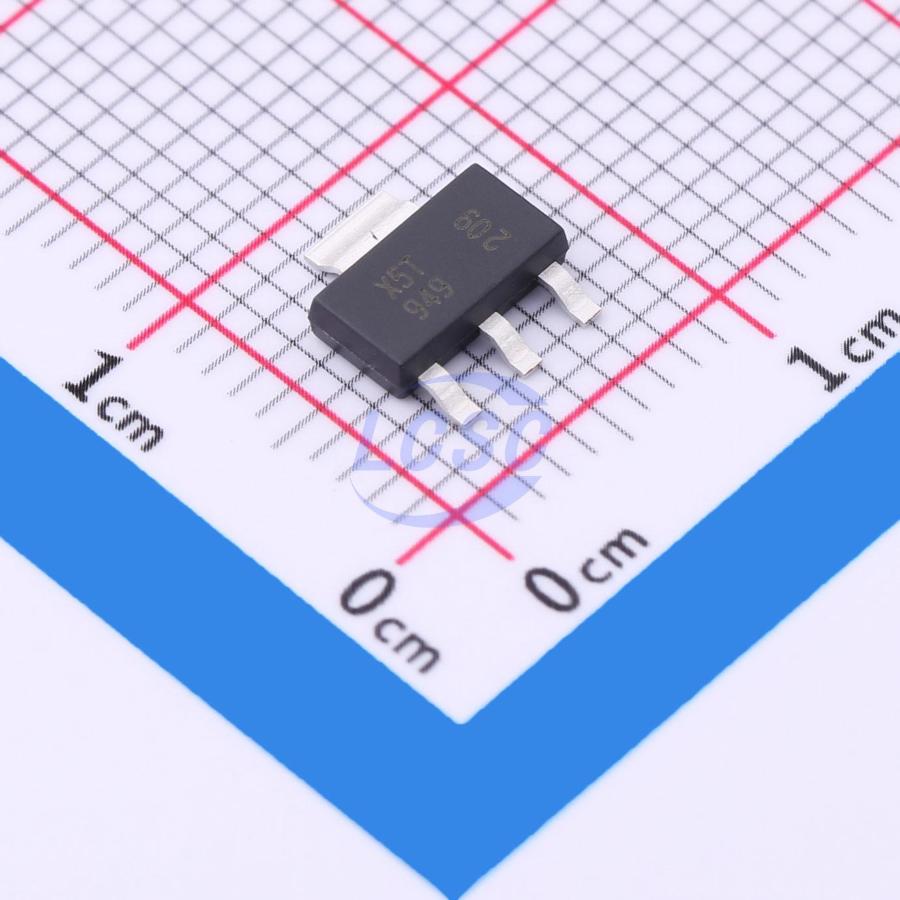

ZX5T949GTA
Bipolar (BJT) Transistor PNP 30V 5.5A 110MHz 3W Surface Mount SOT-223
SOT-223ROHS CompliantActive
TRANS PNP 30V 5.5A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- ZX5T949GTA
- Store part #
- C151454
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
592 in stock
#C151454
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.90 | ₹79.90 |
| 10+ | ₹71.49 | ₹714.90 |
| 30+ | ₹67.41 | ₹2,022.30 |
| 100+ | ₹63.09 | ₹6,309.00 |
| 500+ | ₹60.73 | ₹30,365.00 |
| 1,000+ | ₹59.43 | ₹59,430.00 |
1 × ₹79.90
₹79.90
excl. GST
₹94.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZX5T949GTA
₹79.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 20nA
- Transition frequency(fT)
- 110MHz
- Collector - Emitter Voltage VCEO
- 30V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 70
- Current - Collector(Ic)
- 5.5A
- Pd - Power Dissipation
- 3W
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 210mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- DC-DC Converters
- MOSFET Gate Drivers
- Charging Circuits Power Switches
Key features
- BVCEO > -30V
- IC = -5.5A High Continuous Collector Current
- ICM = -20A Peak Pulse Current
- Low Saturation Voltage VCE(sat)
- Exceptional Gain Linearity down to -10mA
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FZT949#C5245606DIODES · SOT-223 | DIODES | SOT-223 | 6 | ₹311.37 · 6 in stock | View |
 | LBTP660Z4TZHG#C5273339LRC · SOT-223 | LRC | SOT-223 | 2,365 | ₹54.94 · 2,365 in stock | View |
 | ZXTP2008GTA#C151587DIODES · SOT-223 | DIODES | SOT-223 | On request | ₹113.61 · 0 in stock | View |
