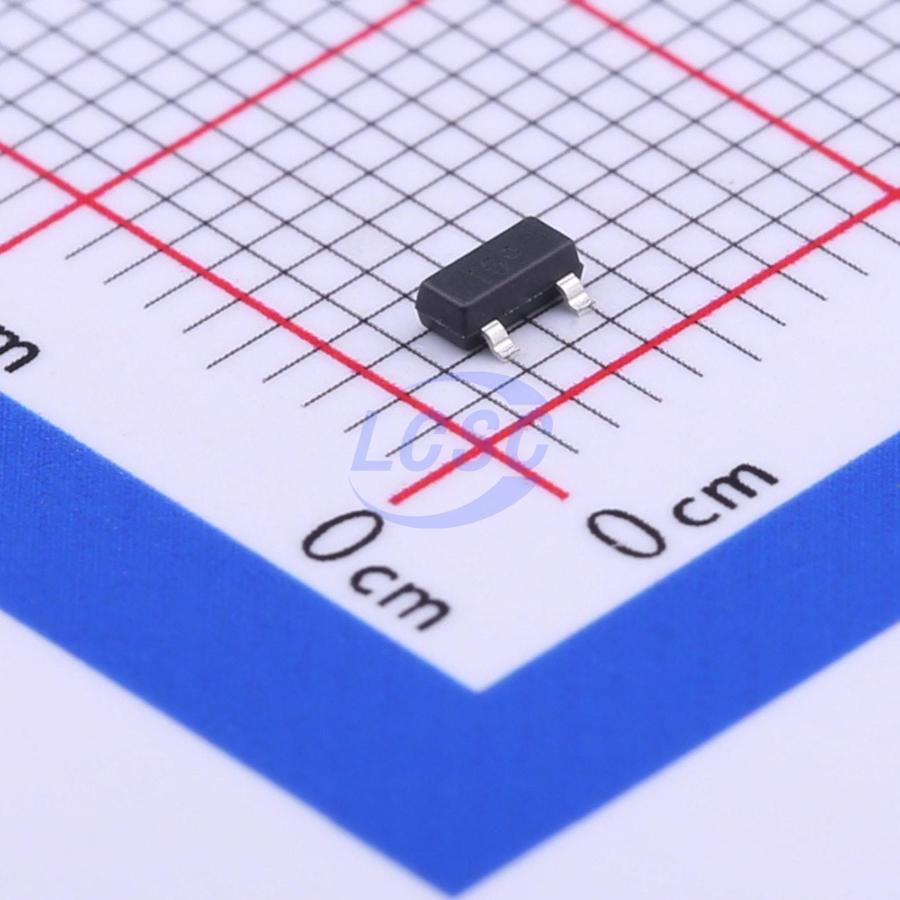

ZXCT1009FTA
2.5V~20V 25mA 300kHz 100nA 1 SOT-23 Current Regulation/Management RoHS
SOT-23ROHS3 CompliantActive
High Side Current Monitor
- Manufacturer
- DIODES
- Manufacturer part #
- ZXCT1009FTA
- Store part #
- C83670
- Package / case
- SOT-23
- Category
- Current Regulation/Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,851 in stock
#C83670
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.58 | ₹82.58 |
| 10+ | ₹66.72 | ₹667.20 |
| 30+ | ₹58.68 | ₹1,760.40 |
| 100+ | ₹50.86 | ₹5,086.00 |
| 500+ | ₹42.81 | ₹21,405.00 |
| 1,000+ | ₹40.21 | ₹40,210.00 |
1 × ₹82.58
₹82.58
excl. GST
₹97.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXCT1009FTA
₹82.58 for 1 + GST
Specifications
- Features
- High-side detection
- Vcm - Common Mode Voltage
- 2.5V~20V
- Output Current
- 25mA
- Bandwidth
- 300kHz
- Input Voltage (Vin)
- 2.5V~20V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 4uA
- Ib - Input Bias Current
- 100nA
- Number of Channels
- 1
- Differential Voltage
- ±2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The ZXCT1009 is a high side current sense monitor. Using this device eliminates the need to disrupt the ground plane when sensing a load current. It takes a high side voltage developed across a current shunt resistor and translates it into a proportional output current. A user defined output resistor scales the output current into a ground - referenced voltage. The wide input voltage range of 20V down to as low as 2.5V make it suitable for a range of applications. A minimum operating current of just 4μA, combined with a SOT23 package make it a unique solution for portable battery equipment. The SM8 device offers an alternative package option.
Applications
- Battery chargers
- Smart battery packs
- DC motor control
- Over current monitor
- Power management
- Level translating
- Programmable current source
Key features
- Low cost, accurate high - side current sensing
- Output voltage scaling
- Up to 2.5V sense voltage
- 2.5V to 20V supply range
- 4μA quiescent current
- 1% typical accuracy
- SOT23 and SM8 packages
- AEC - Q100.3 qualified; ZXCT1009FTA only
