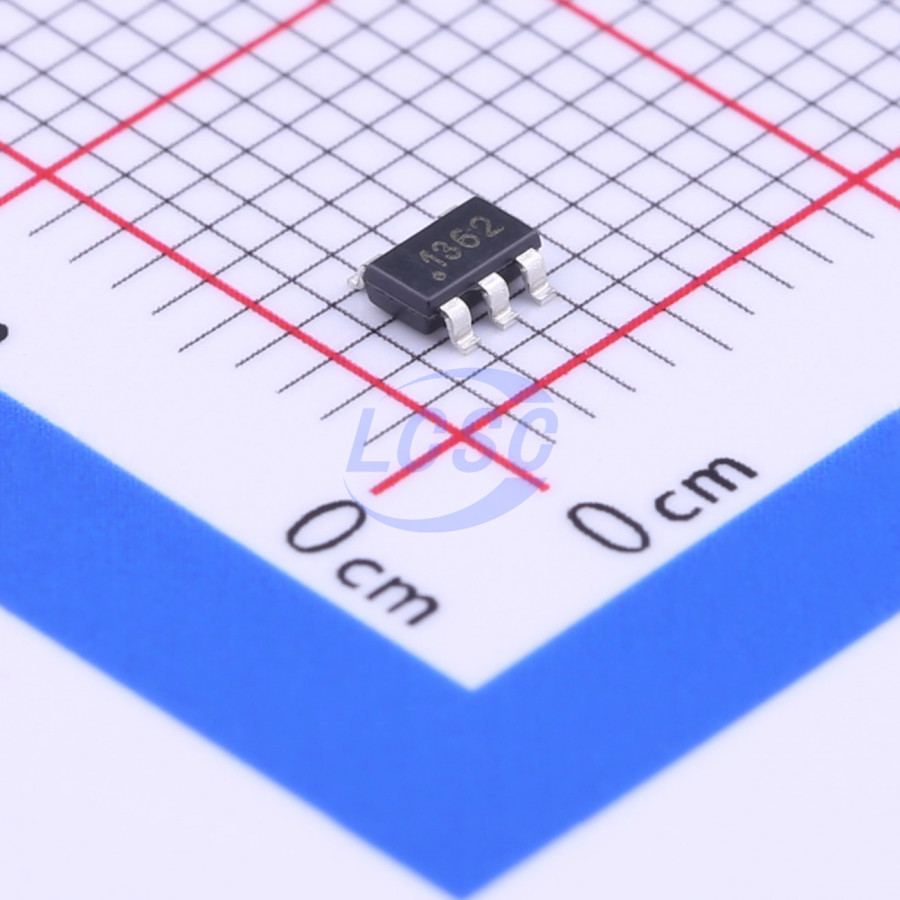

ZXLD1362ET5TA
1A 1MHz 1 DC-DC 6V~60V TSOT-25 LED Drivers RoHS
60V 1A LED DRIVER WITH AEC-Q100
- Manufacturer
- DIODES
- Manufacturer part #
- ZXLD1362ET5TA
- Store part #
- C154735
- Package / case
- TSOT-25
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,772 in stock
#C154735
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹269.35 | ₹269.35 |
| 10+ | ₹236.99 | ₹2,369.90 |
| 30+ | ₹216.79 | ₹6,503.70 |
| 100+ | ₹195.94 | ₹19,594.00 |
| 500+ | ₹186.37 | ₹93,185.00 |
| 1,000+ | ₹182.47 | ₹1,82,470.00 |
1 × ₹269.35
₹269.35
excl. GST
₹317.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXLD1362ET5TA
₹269.35 for 1 + GST
Specifications
- Output Current
- 1A
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1MHz
- Dimming
- PWM;Analog
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Features
- Built-in soft-start
- Topology
- Buck
- Constant Current Accuracy
- 2%
- Voltage - Input(DC)
- 6V~60V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.044 g
Overview
The ZXLD1362 is a continuous mode inductive step-down converter with integrated switch and high side current sense. It operates from an input supply from 6V to 60V driving single or multiple series connected LEDs efficiently externally adjustable output current up to 1A. The ZXLD1362 has been qualified to AEC-Q100 Grade 1 enabling operation in ambient temperatures from -40°C to +125°C. The output current can be adjusted by applying a DC voltage or a PWM waveform. 100.1 adjustment of output current is possible using PWM control. Applying 0.2V or lower to the ADJ pin turns the output off and switches the device into a low current standby state.
Key features
- Simple low parts count
- Single pin on/off and brightness control using DC voltage or PWM
- High efficiency (up to 95%)
- Wide input voltage range: 6V to 60V
- Up to 1MHz switching frequency
- Qualified to AEC-Q100 Grade 1
- Automotive Grade version available (ZXLD1362Q)
- Typical 2% output current accuracy
- Thermally enhanced TSOT25: ΘJA 82°C/W
- Available in Green Molding
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
