DIODESDatasheet (PDF)

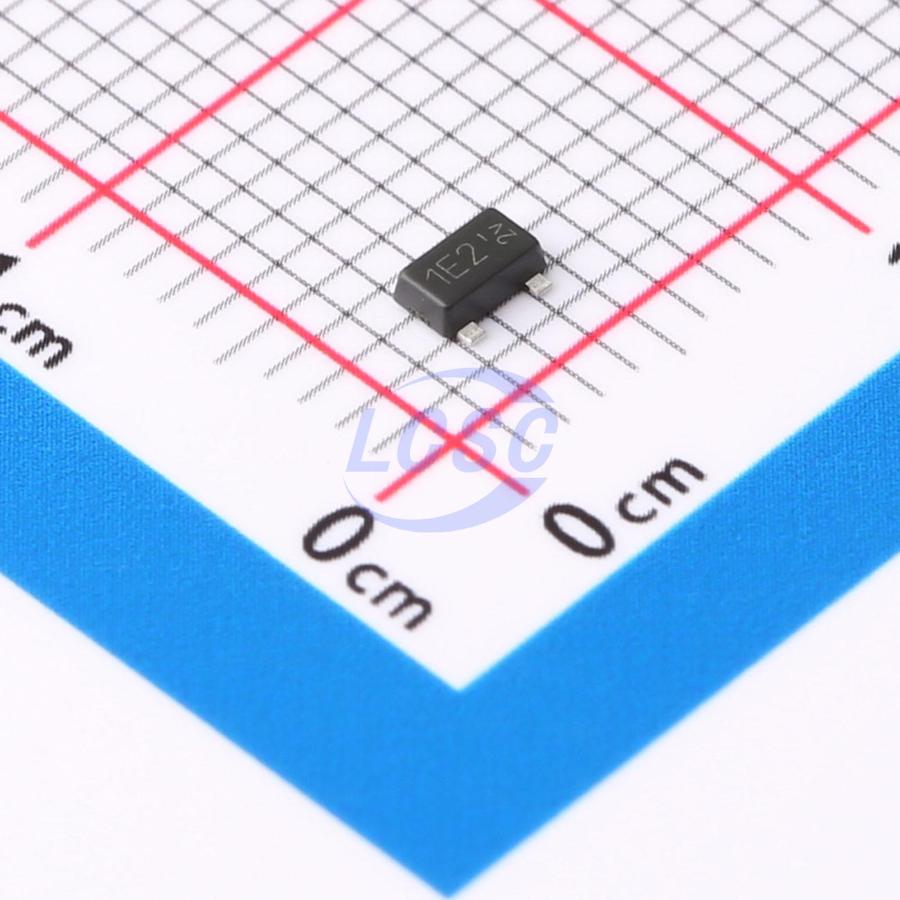

ZXTN19020CFFTA
Bipolar (BJT) Transistor NPN 20V 7A 150MHz 1.5W Surface Mount SOT-23F
SOT-23FROHS3 CompliantActive
TRANS NPN 20V 7A SOT-23F
- Manufacturer
- DIODES
- Manufacturer part #
- ZXTN19020CFFTA
- Store part #
- C132414
- Package / case
- SOT-23F
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
409 in stock
#C132414
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.75 | ₹110.75 |
| 10+ | ₹93.38 | ₹933.80 |
| 30+ | ₹84.70 | ₹2,541.00 |
| 100+ | ₹76.23 | ₹7,623.00 |
| 500+ | ₹71.02 | ₹35,510.00 |
| 1,000+ | ₹68.41 | ₹68,410.00 |
1 × ₹110.75
₹110.75
excl. GST
₹130.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXTN19020CFFTA
₹110.75 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 20uA
- Transition frequency(fT)
- 150MHz
- Collector - Emitter Voltage VCEO
- 20V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 180
- Pd - Power Dissipation
- 1.5W
- Current - Collector(Ic)
- 7A
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 30mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.062 g
Overview
Advanced process capability has been used to maximize the performance of this transistor. The SOT23F package is compatible with the industry standard SOT23 footprint but offers lower profile and higher dissipation for applications where power density is of utmost importance.
Applications
- MOSFET and IGBT Gate Driving
- LED Driving
- Strobe Flash
- Motor Drive
- Micro Buffers
Key features
- BVCEO > 20V
- BVCEX > 65V
- BVECO > 4.5V
- lC = 7A Continuous Collector Current
- Very Low VCE(SAT) < 30mV @ 1A
- RCE(SAT) = 18mΩ
- 1.5W Power Dissipation
- High Forward Blocking Voltage High Gain
- Complementary PNP Type: ZXTP19020CFF
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
