ZXTN23015CFHTA

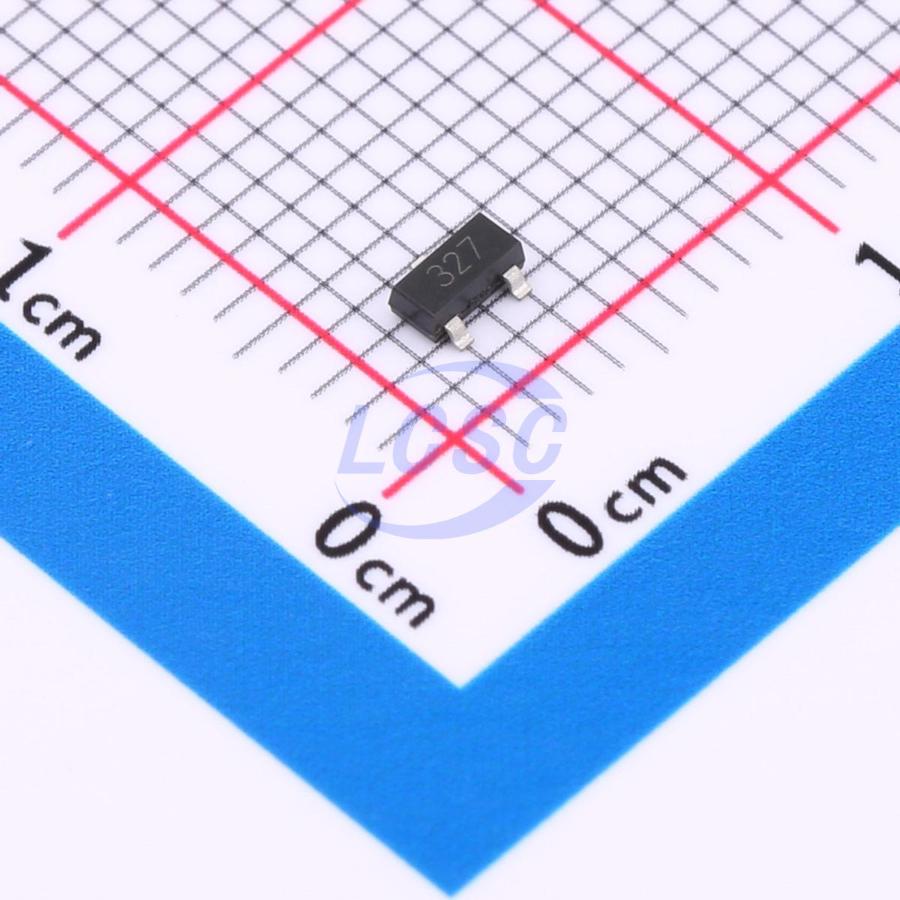

Bipolar (BJT) Transistor NPN 15V 9A 235MHz 1.25W Surface Mount SOT-23

SOT-23ROHS CompliantActive

TRANS NPN 15V 9A SOT-23

Manufacturer: DIODES
Manufacturer part #: ZXTN23015CFHTA
Store part #: C156307
Package / case: SOT-23
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

67 in stock

#C156307

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹99.49	₹99.49
10+	₹81.18	₹811.80
30+	₹71.92	₹2,157.60
100+	₹62.67	₹6,267.00
500+	₹57.29	₹28,645.00
1,000+	₹54.48	₹54,480.00

Quantity (min 1)

1 × ₹99.49

₹99.49

excl. GST

₹117.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ZXTN23015CFHTA

₹99.49 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 20nA
Transition frequency(fT): 235MHz
Collector - Emitter Voltage VCEO: 15V
Emitter-Base Voltage VEBO: 7V
DC Current Gain: 160
Current - Collector(Ic): 9A
Pd - Power Dissipation: 1.25W
Configuration: Standalone
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 30mV

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.034 g

Overview

Advanced process capability and package design have been used to maximize the power handling and performance of this small outline transistor. The compact size and ratings of this device make it ideally suited to applications where space is at a premium.
