DIODESDatasheet (PDF)

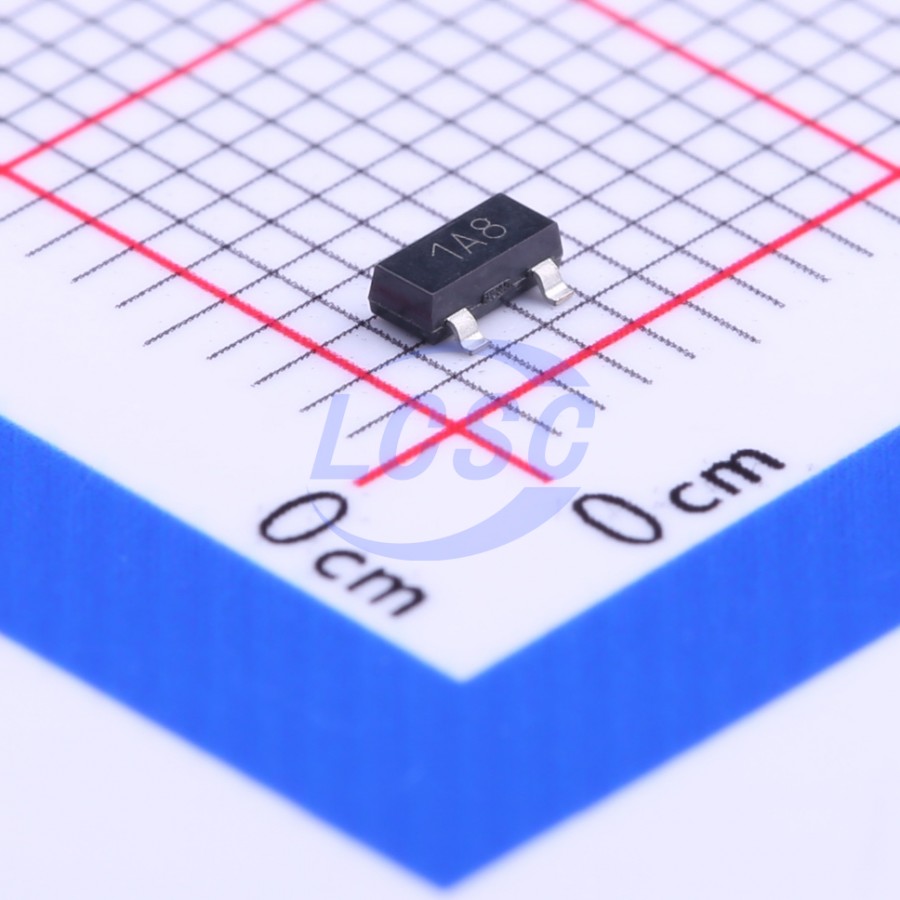

ZXTN25015DFHTA
Bipolar (BJT) Transistor NPN 15V 5A 275MHz 1.25W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS NPN 15V 5A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- ZXTN25015DFHTA
- Store part #
- C151384
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
998 in stock
#C151384
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.80 | ₹55.80 |
| 10+ | ₹49.36 | ₹493.60 |
| 30+ | ₹46.36 | ₹1,390.80 |
| 100+ | ₹42.93 | ₹4,293.00 |
| 500+ | ₹41.42 | ₹20,710.00 |
| 1,000+ | ₹40.35 | ₹40,350.00 |
1 × ₹55.80
₹55.80
excl. GST
₹65.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXTN25015DFHTA
₹55.80 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 50nA
- Transition frequency(fT)
- 275MHz
- Collector - Emitter Voltage VCEO
- 15V
- Emitter-Base Voltage VEBO
- 8.2V
- DC Current Gain
- 300
- Pd - Power Dissipation
- 1.25W
- Current - Collector(Ic)
- 5A
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 40mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
Advanced process capability and package design have been used to maximize the power handling and performance of this small outline transistor. The compact size and ratings of this device make it ideally suited to applications where space is at a premium.
Applications
- LED driving
- DC-DC converters
- MOSFET and IGBT gate driving
- Motor drive
Key features
- High power dissipation SOT23 package
- High gain
- Low saturation voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| ZTN23015CFHQTA#C6939294DIODES · SOT-23(TYPEDN) | DIODES | SOT-23(TYPEDN) | On request | ₹150.17 · 0 in stock | View | |
 | ZXTN25020DFHTA#C508264DIODES · SOT-23 | DIODES | SOT-23 | On request | ₹33.80 · 0 in stock | View |
 | ZXTN19020DFFTA#C460285DIODES · SOT-23F | DIODES | SOT-23F | On request | ₹103.31 · 0 in stock | View |
