DIODESDatasheet (PDF)

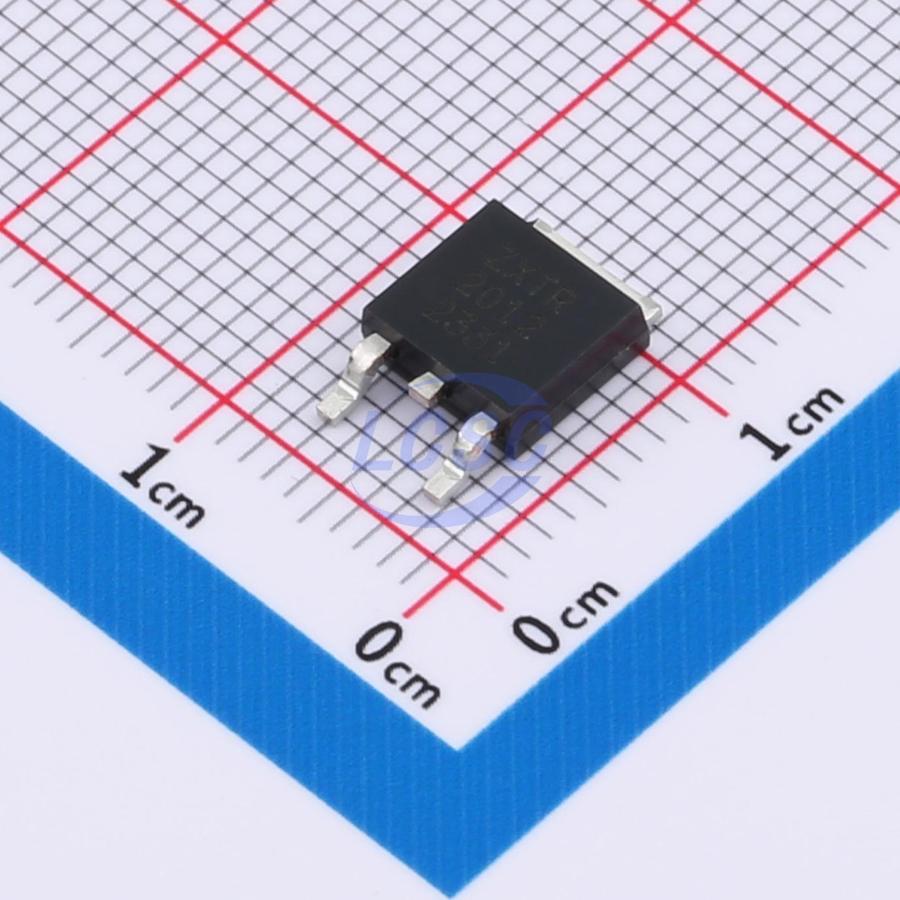

ZXTR2012K-13
12V Positive Fixed TO-252-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-3ROHS3 CompliantActive
100V INPUT, 12V 50mA REGULATOR TRANSISTOR
- Manufacturer
- DIODES
- Manufacturer part #
- ZXTR2012K-13
- Store part #
- C5249305
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,149 in stock
#C5249305
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.47 | ₹91.47 |
| 10+ | ₹72.79 | ₹727.90 |
| 30+ | ₹63.44 | ₹1,903.20 |
| 100+ | ₹54.32 | ₹5,432.00 |
| 500+ | ₹48.88 | ₹24,440.00 |
| 1,000+ | ₹46.07 | ₹46,070.00 |
1 × ₹91.47
₹91.47
excl. GST
₹107.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZXTR2012K-13
₹91.47 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 60mA
- Operating Voltage
- 100V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.404 g
Overview
The ZXTR2012K monolithically integrates a transistor, zener diode and resistor to function as a high-voltage linear regulator. The device regulates with a 12V nominal output at 15mA. It’s designed for use in high-voltage applications where standard linear regulators cannot be used. This function is fully integrated into a TO252 package, minimizing PCB area and reducing a number of components when compared with a multi-chip discrete solution.
Applications
- Supply voltage regulation in startup switch in DC-DC converters
- Supply voltage regulation in networking
- Supply voltage regulation in telecom
- Supply voltage regulation in Power over Ethernet (PoE)
Key features
- Series Linear Regulator Using Emitter-Follower Stage
- Input Voltage = 15V to 100V (For regulated output voltage)
- Output Voltage = 12V ±10%
- 150kΩ resistor to limit quiescent current
- Fully integrated into a TO252 package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 for High Reliability
