DIODESDatasheet (PDF)

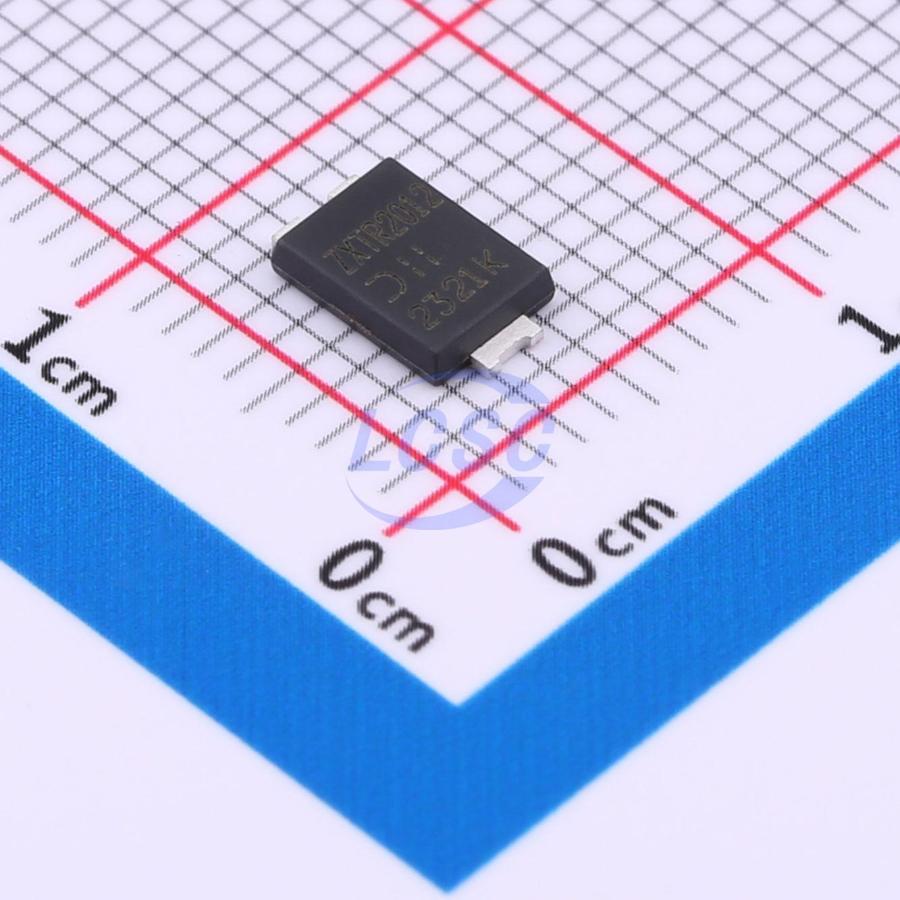

ZXTR2012P5-13
12V Positive Fixed PowerDI-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
PowerDI-5ROHS CompliantActive
100V INPUT, 12V 40mA REGULATOR TRANSISTOR
- Manufacturer
- DIODES
- Manufacturer part #
- ZXTR2012P5-13
- Store part #
- C155307
- Package / case
- PowerDI-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C155307
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.62 | ₹75.62 |
| 10+ | ₹61.51 | ₹615.10 |
| 30+ | ₹54.34 | ₹1,630.20 |
| 100+ | ₹47.38 | ₹4,738.00 |
| 500+ | ₹43.25 | ₹21,625.00 |
| 1,000+ | ₹41.08 | ₹41,080.00 |
1 × ₹75.62
₹75.62
excl. GST
₹89.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ZXTR2012P5-13
₹75.62 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 240uA
- Output Configuration
- Positive
- Operating Voltage
- 100V
- Output Current
- 50mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.183 g
Overview
The ZXTR2012P5 monolithically integrates a transistor, zener diode and resistor to function as a high-voltage linear regulator. The device regulates with a 12V nominal output at 15mA. It is designed for use in high-voltage applications where standard linear regulators cannot be used. This function is fully integrated into a PowerDI5 package, minimizing PCB area and reducing number of components when compared with a multi-chip discrete solution.
Applications
- Supply voltage regulation in startup switch in DC-DC converters
- Supply voltage regulation in networking
- Supply voltage regulation in telecommunications
- Supply voltage regulation in Power over Ethernet (PoE)
Key features
- Series Linear Regulator Using Emitter-Follower Stage
- Input Voltage = 15V to 100V (For regulated output voltage)
- Output Voltage = 12V ± 10%
- 150kΩ resistor to limit quiescent current
- Fully integrated into a PowerDI5 package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 for High Reliability
