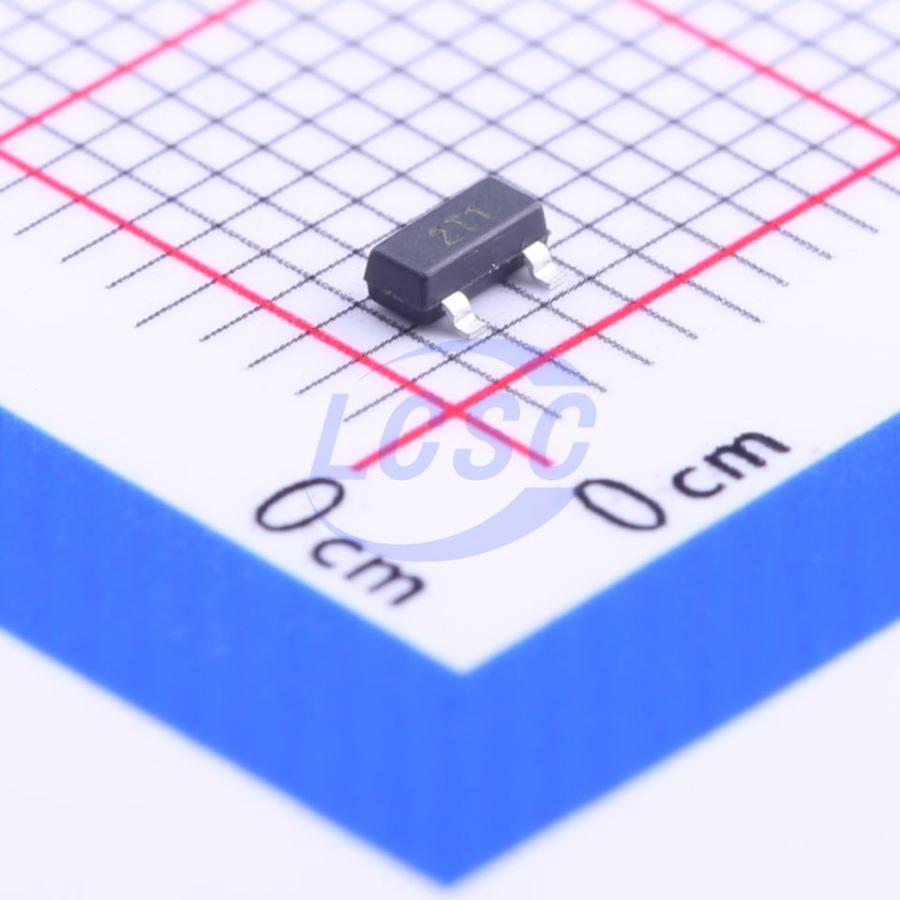

ZXTR2105F-7

5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23ROHS CompliantActive

60V INPUT, 5V 15mA REGULATOR TRANSISTOR

Manufacturer: DIODES
Manufacturer part #: ZXTR2105F-7
Store part #: C110301
Package / case: SOT-23
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,099 in stock

#C110301

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
1+	₹71.79	₹71.79
10+	₹55.91	₹559.10
30+	₹49.16	₹1,474.80
100+	₹40.68	₹4,068.00
500+	₹36.77	₹18,385.00
1,000+	₹34.37	₹34,370.00

Quantity (min 1)

1 × ₹71.79

₹71.79

excl. GST

₹84.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ZXTR2105F-7

₹71.79 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -65℃~+150℃
Supply Current (Iq): 450uA
Output Configuration: Positive
Operating Voltage: 60V
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.028 g

Overview

The ZXTR2105F monolithically integrates a transistor, zener diode and resistor to function as a linear regulator. The device regulates with a 5V nominal output at 15mA. It is designed for use in high-voltage applications where standard linear regulators cannot be used. This function is fully integrated into a SOT23 package, minimizing PCB area and reducing the number of components when compared with a multi-chip discrete solution.

Applications

Supply voltage regulation for 12V to 5V Rails
Supply voltage regulation for 24V to 5V Rails
Supply voltage regulation for Other Customized Input Rails

Key features

Series Linear Regulator Using Emitter-Follower Stage
Input Voltage = 7V to 60V (For regulated output Voltage)
Output Voltage = 5V ±5%
Fully Integrated into a SOT23 Package
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 Standards for High Reliability An Automotive-Compliant Part is Available Under Separate Datasheet (ZXTR2105FQ)
