LittelfuseDatasheet (PDF)

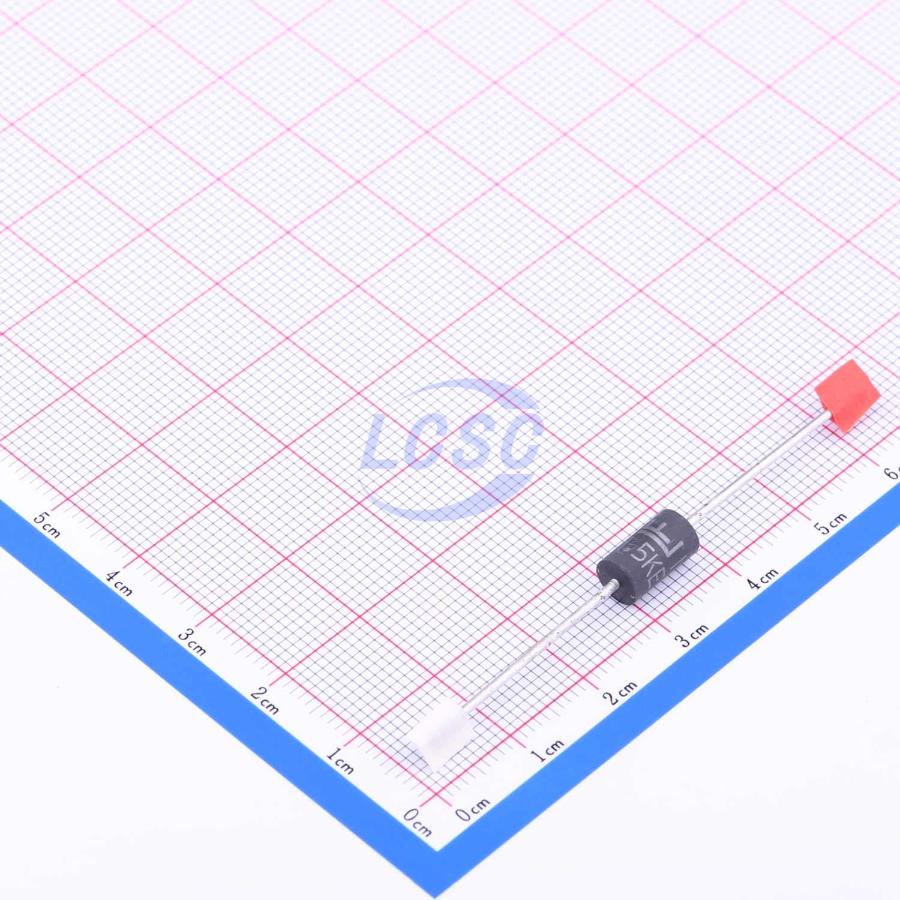

1.5KE18CA
25.2VC Clamp 60.3A@10/1000us Ipp TVS DIODE DO-201
DO-201ROHS3 CompliantActive
TVS DIODE 15.3VWM 25.2VC DO-201
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1.5KE18CA
- Store part #
- C223914
- Package / case
- DO-201
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C223914
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.08 | ₹275.40 |
| 50+ | ₹43.54 | ₹2,177.00 |
| 150+ | ₹38.59 | ₹5,788.50 |
| 1,200+ | ₹32.43 | ₹38,916.00 |
| 2,400+ | ₹29.67 | ₹71,208.00 |
| 4,800+ | ₹28.02 | ₹1,34,496.00 |
5 × ₹55.08
₹275.40
excl. GST
₹324.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,200 per reel
1.5KE18CA
₹275.40 for 5 + GST
Specifications
- Clamping Voltage
- 25.2V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 60.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 18.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,200 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.26 g
Overview
The 1.5KE Series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
Key features
- 1500W peak pulse capability at 10/1000μs waveform, repetition rat (duty cycles): 0.01%
- Glass passivated chip junction in DO - 201 Package
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Typical failure mode is short from over - specifed voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4 and 4c
- IEC - 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000 - 4 - 2
- EFT protection of data lines in accordance with IEC 61000 - 4 - 4
- Low incremental surge resistance
- Typical IR less than 1μΔ when VBR min>12V
- High temperature to reflow soldering guaranteed: 260°C/40sec / 0.375"(9.5mm) lead length, 5 lbs., (2.3kg) tension
- VBR @TJ = VBR@25°C × (1 + αT×(TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1%)
- Plastic package is flammability rated V - 0 per Underwriters Laboratories
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb - free E3 means 2nd level interconnect is Pb - free and the terminal finish material is tin(Sn) (IPC/JEDEC J - STD609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1.5KE18CA-B#C1665927Littelfuse · DO-201 | Littelfuse | DO-201 | 280 | ₹57.46 · 280 in stock | View |
 | 1.5KE18CA-E3/54#C1973323VISHAY · DO-201AA(DO-27) | VISHAY | DO-201AA(DO-27) | 46 | ₹90.93 · 46 in stock | View |
 | 1.5KE18CA#C53055795R+O · DO-27 | R+O | DO-27 | 570 | ₹27.27 · 570 in stock | View |
 | 1.5KE18CA#C124153RUILON · DO-201 | RUILON | DO-201 | 745 | ₹30.80 · 745 in stock | View |
 | 1.5KE18CA#C5295277JSCJ · DO-27 | JSCJ | DO-27 | 865 | ₹30.60 · 865 in stock | View |
