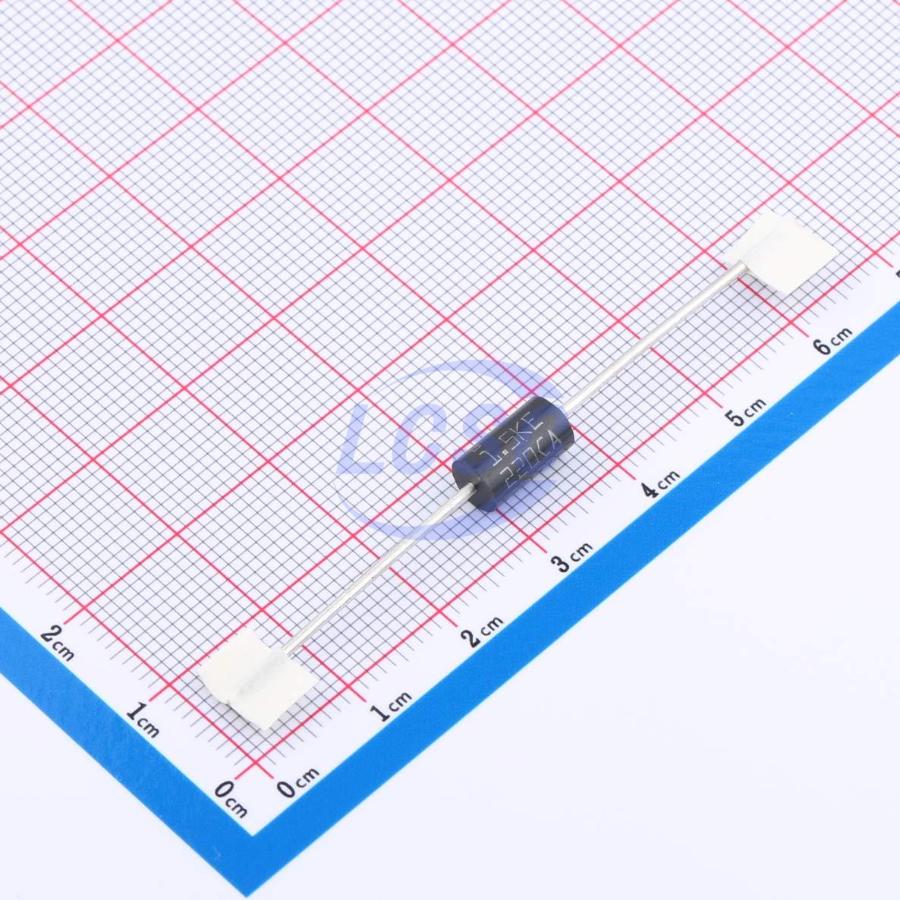

1.5KE220CA
388VC Clamp 26A@8/20us Ipp TVS DIODE DO-201
TVS DIODE 188VWM 388VC DO-201
- Manufacturer
- ST
- Manufacturer part #
- 1.5KE220CA
- Store part #
- C3717767
- Package / case
- DO-201
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
232 in stock
#C3717767
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.31 | ₹124.31 |
| 10+ | ₹98.97 | ₹989.70 |
| 30+ | ₹86.30 | ₹2,589.00 |
| 100+ | ₹73.85 | ₹7,385.00 |
| 600+ | ₹66.12 | ₹39,672.00 |
| 1,200+ | ₹62.26 | ₹74,712.00 |
1 × ₹124.31
₹124.31
excl. GST
₹146.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 600 per box
1.5KE220CA
₹124.31 for 1 + GST
Specifications
- Clamping Voltage
- 388V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 26A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 209V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 188V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 600 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.98 g
Overview
The 1.5KE TVS series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 1500 W 10/1000 µs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Key features
- Peak pulse power: 1500 W (10/1000 µs) up to 10 kW (8/20 µs)
- Stand-off voltage range from 5 V to 376 V
- Unidirectional and bidirectional types
- Operating Tj max: 175 °C
- High power capability at Tj max.: up to 1100 W (10/1000 µs)
- Lead finishing: matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1.5KE220CA#C1973398Littelfuse · DO-201 | Littelfuse | DO-201 | 40 | ₹55.86 · 40 in stock | View |
 | 1.5KE220CA#C7529568RUILON · DO-201 | RUILON | DO-201 | 975 | ₹35.55 · 975 in stock | View |
 | 1.5KE220CA#C294183DOWO · DO-201 | DOWO | DO-201 | 2,785 | ₹23.46 · 2,785 in stock | View |
 | 1.5KE220CA#C730062Brightking · DO-201 | Brightking | DO-201 | 395 | ₹22.90 · 395 in stock | View |
 | 1.5KE22CA-E3/54#C1849744VISHAY · DO-201 | VISHAY | DO-201 | 132 | ₹143.37 · 132 in stock | View |
