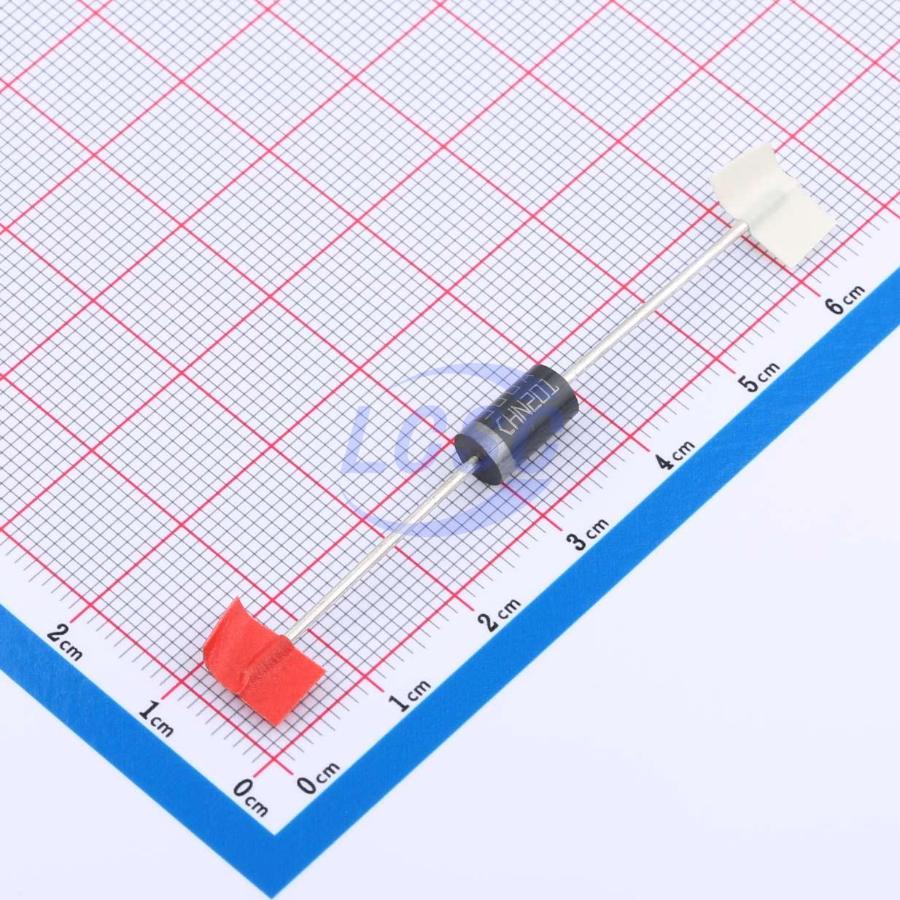

1.5KE300A
529VC Clamp 5A@8/20us Ipp TVS DIODE DO-201
TVS DIODE 256VWM 529VC DO-201
- Manufacturer
- ST
- Manufacturer part #
- 1.5KE300A
- Store part #
- C5205192
- Package / case
- DO-201
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
316 in stock
#C5205192
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.35 | ₹131.35 |
| 10+ | ₹104.99 | ₹1,049.90 |
| 30+ | ₹91.82 | ₹2,754.60 |
| 100+ | ₹78.85 | ₹7,885.00 |
| 600+ | ₹71.07 | ₹42,642.00 |
| 1,200+ | ₹66.97 | ₹80,364.00 |
1 × ₹131.35
₹131.35
excl. GST
₹154.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 600 per box
1.5KE300A
₹131.35 for 1 + GST
Specifications
- Clamping Voltage
- 529V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 10kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 285V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 256V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 600 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.013 g
Overview
The 1.5KE TVS series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 1500 W 10/1000 µs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Key features
- Peak pulse power: 1500 W (10/1000 µs) up to 10 kW (8/20 µs)
- Stand-off voltage range from 5 V to 376 V
- Unidirectional and bidirectional types
- Operating Tj max: 175 °C
- High power capability at Tj max.: up to 1100 W (10/1000 µs)
- Lead finishing: matte tin plating
