LittelfuseDatasheet (PDF)

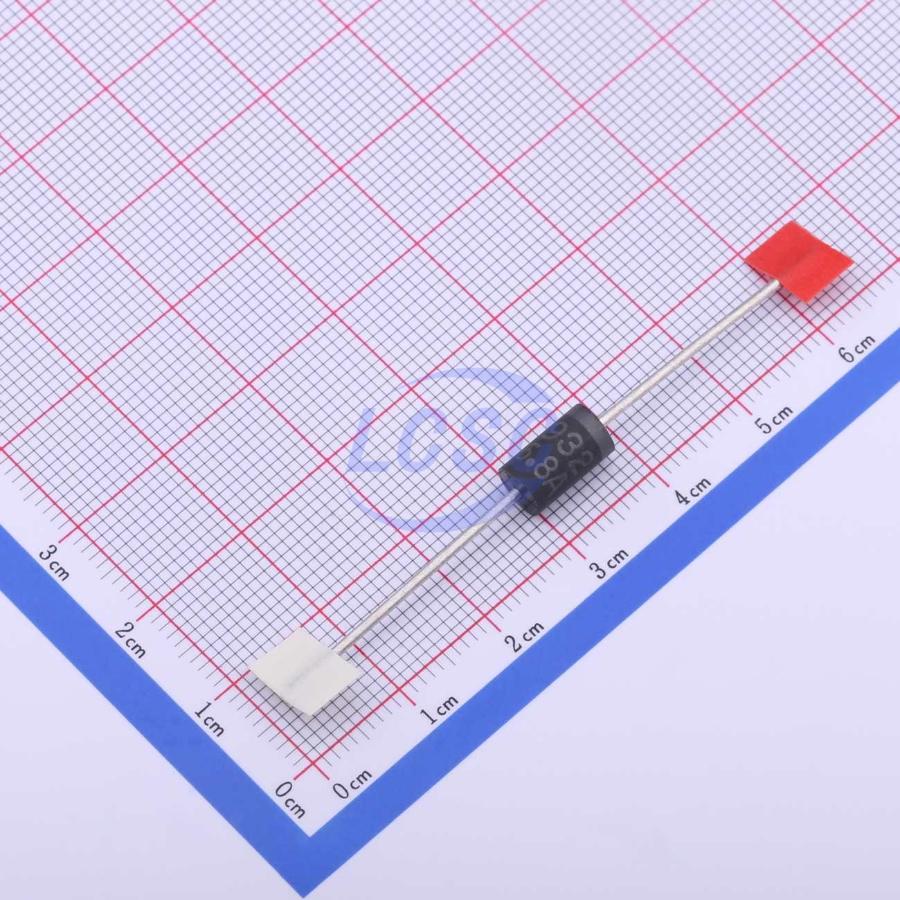

1.5KE6.8A
10.5VC Clamp 144.8A Ipp TVS DIODE DO-201
DO-201ROHS3 CompliantActive
TVS DIODE 5.8VWM 10.5VC DO-201
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1.5KE6.8A
- Store part #
- C412500
- Package / case
- DO-201
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
480 in stock
#C412500
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.01 | ₹255.05 |
| 50+ | ₹40.50 | ₹2,025.00 |
| 150+ | ₹36.00 | ₹5,400.00 |
| 1,200+ | ₹30.38 | ₹36,456.00 |
| 2,400+ | ₹27.86 | ₹66,864.00 |
| 4,800+ | ₹26.37 | ₹1,26,576.00 |
5 × ₹51.01
₹255.05
excl. GST
₹300.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,200 per reel
1.5KE6.8A
₹255.05 for 5 + GST
Specifications
- Clamping Voltage
- 10.5V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 144.8A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.45V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1mA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,200 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.293 g
Overview
The 1.5KE Series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
Key features
- 1500W peak pulse capability at 10/1000μs waveform, repetition rat (duty cycles): 0.01%
- Glass passivated chip junction in DO - 201 Package
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Typical failure mode is short from over - specifed voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4 and 4c
- IEC - 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000 - 4 - 2
- EFT protection of data lines in accordance with IEC 61000 - 4 - 4
- Low incremental surge resistance
- Typical IR less than 1μΔ when VBR min>12V
- High temperature to reflow soldering guaranteed: 260°C/40sec / 0.375"(9.5mm) lead length, 5 lbs., (2.3kg) tension
- VBR @TJ = VBR@25°C × (1 + αT×(TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1%)
- Plastic package is flammability rated V - 0 per Underwriters Laboratories
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb - free E3 means 2nd level interconnect is Pb - free and the terminal finish material is tin(Sn) (IPC/JEDEC J - STD609A.01)
