LittelfuseDatasheet (PDF)

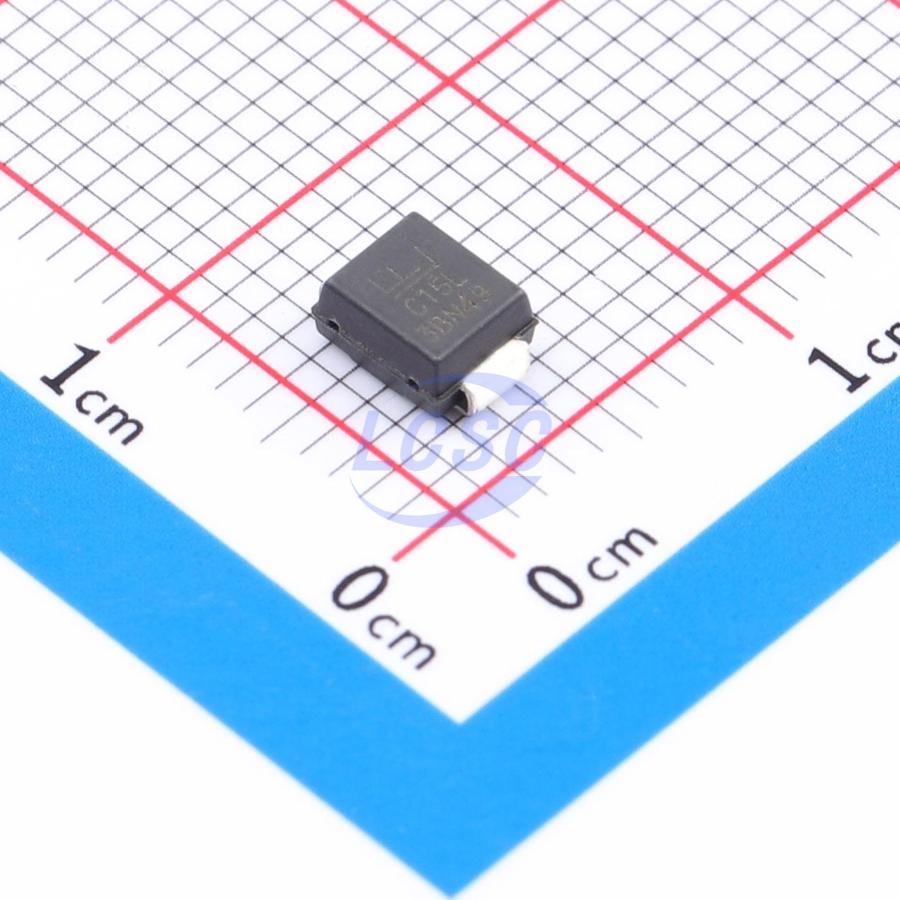

1.5SMB68CA
118.9VC Clamp 90.8A@8/20us Ipp TVS DIODE DO-214AA(SMBJ)
DO-214AA(SMBJ)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1.5SMB68CA
- Store part #
- C1850431
- Package / case
- DO-214AA(SMBJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C1850431
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.70 | ₹110.70 |
| 10+ | ₹108.76 | ₹1,087.60 |
| 30+ | ₹107.48 | ₹3,224.40 |
| 100+ | ₹106.40 | ₹10,640.00 |
1 × ₹110.70
₹110.70
excl. GST
₹130.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1.5SMB68CA
₹110.70 for 1 + GST
Specifications
- Clamping Voltage
- 118.9V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 90.8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 71.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 64.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.367 g
Overview
The 1.5SMB Series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- For surface mounted applications to optimize board space
- Low profle package
- Typical failure mode is short from over-specifed voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- ESD protection of data lines in accordance with IEC 61000-4-2, 30kV(Air), 30kV (Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Built-in strain relief
- Glass passivated chip junction
- 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- Excellent clamping capability
- Low incremental surge resistance
- Meet MSL level 1 per J-STD-020, and high temperature soldering guaranteed: 260C/10sec
- Matte tin lead–free Plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal fnish material is tin(Sn) (IPC/JEDEC J-STD-609A.01)
