BrightkingDatasheet (PDF)

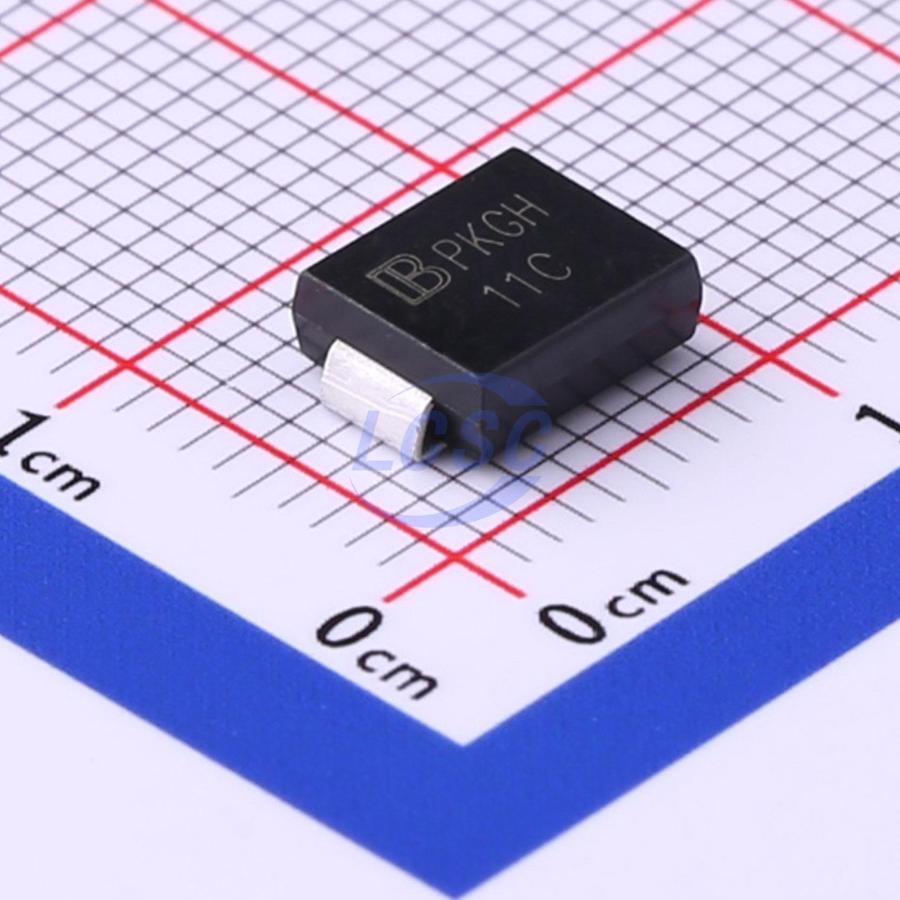

1.5SMC11CA/TR13
15.6VC Clamp 97.4A Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 9.4VWM 15.6VC SMC(DO-214AB)
- Manufacturer
- Brightking
- Manufacturer part #
- 1.5SMC11CA/TR13
- Store part #
- C522057
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
600 in stock
#C522057
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.11 | ₹80.55 |
| 50+ | ₹12.69 | ₹634.50 |
| 150+ | ₹10.98 | ₹1,647.00 |
| 500+ | ₹9.68 | ₹4,840.00 |
| 3,000+ | ₹8.31 | ₹24,930.00 |
| 6,000+ | ₹7.79 | ₹46,740.00 |
5 × ₹16.11
₹80.55
excl. GST
₹95.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1.5SMC11CA/TR13
₹80.55 for 5 + GST
Specifications
- Clamping Voltage
- 15.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 97.4A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 10.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 9.4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.396 g
Overview
Applications
- I/O interface
- AC/DC power supply
- Low frequency signal transmission line (RS232, RS485, etc.)
Key features
- For surface mounted applications in order to optimize board space
- Low profile package
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
- Fast response time
- Typical IR less than 1μA above 12V
- Plastic package has underwriters laboratory flammability 94V - 0
- Meets MSL level 1, per J - STD - 020
- Safety certification: UL: E244458
