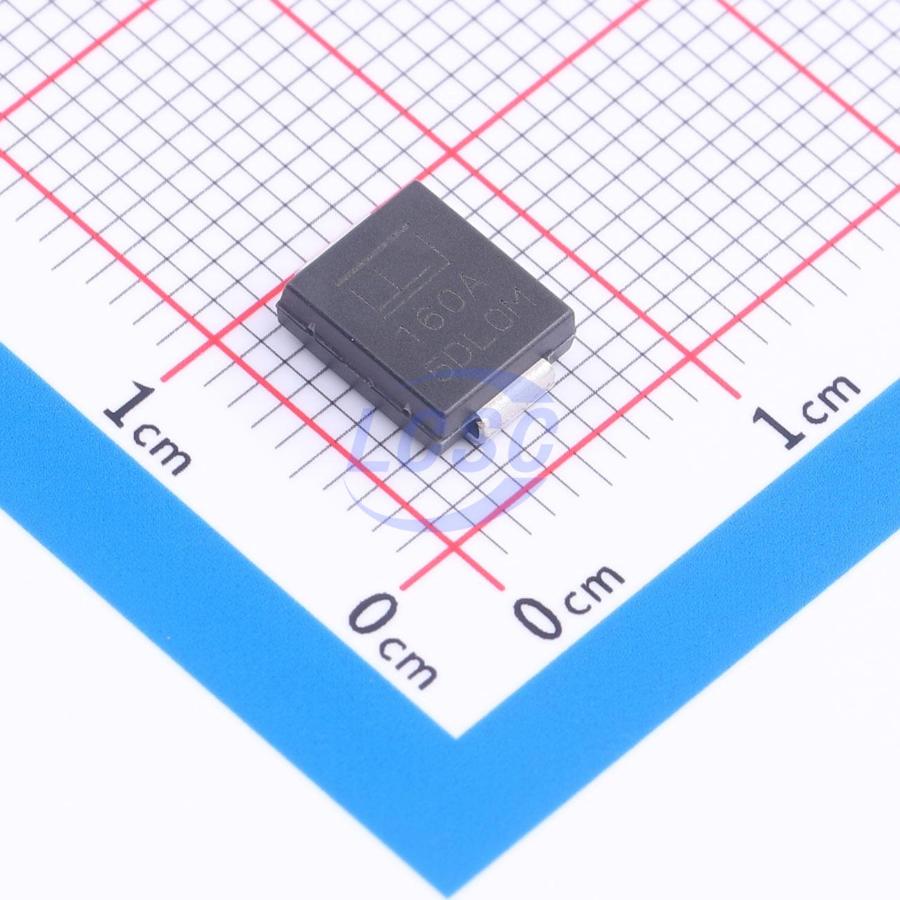

1.5SMC160A
219V 6.9A 1.5kW@10/1000us 168V Unidirectional 136V DO-214AB TVS Diodes RoHS
DO-214ABROHS CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1.5SMC160A
- Store part #
- C25538040
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C25538040
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.06 | ₹136.06 |
| 10+ | ₹134.13 | ₹1,341.30 |
| 30+ | ₹132.62 | ₹3,978.60 |
| 100+ | ₹131.33 | ₹13,133.00 |
1 × ₹136.06
₹136.06
excl. GST
₹160.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1.5SMC160A
₹136.06 for 1 + GST
Specifications
- Clamping Voltage
- 219V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 6.9A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 168V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 136V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.355 g
Overview
Applications
- Telecommunications
- Computer
- Industrial
- Consumer Electronics
Key features
- 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
- Excellent clamping capability
- Low dynamic resistance
- Surface mount application to optimize board space
- Typical failure mode: short circuit due to overvoltage or overcurrent
- Whisker tested at Level 1 and Level 2 per JEDEC JESD201A, Tables 4a and 4c
- IEC 61000-4-2 ESD 30kV (air discharge), 30kV (contact discharge)
- Glass passivated chip junction
- VBR@TJ = VBR@25°C × (1 + αT × (TJ - 25)) (αT: temperature coefficient, typical value 0.1%)
- Plastic package meets Underwriters Laboratories V-0 flammability rating
- Halogen-free and RoHS compliant
- Lead-free E3 indicates second-level interconnect is lead-free with terminal finish material of Tin (Sn) (per IPC/JEDEC J-STD-609A.01)
- Recognized by Underwriters Laboratories as isolated loop circuit protector
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1.5SMC160A-E3/57T#C1974164VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 188 | ₹149.33 · 188 in stock | View |
 | SMCJ130A#C224039Littelfuse · DO-214AB | Littelfuse | DO-214AB | 2 | ₹54.89 · 2 in stock | View |
 | SMCJ130A#C5161490ZHIDE · DO-214AB(SMC) | ZHIDE | DO-214AB(SMC) | 235 | ₹20.27 · 235 in stock | View |
| SMCJ130A#C20883376OTW · SMC(DO-214AB) | OTW | SMC(DO-214AB) | 3,000 | ₹9.70 · 3,000 in stock | View | |
 | SMCJ130A#C4154638TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 3,110 | ₹7.28 · 3,110 in stock | View |
