VISHAYDatasheet (PDF)

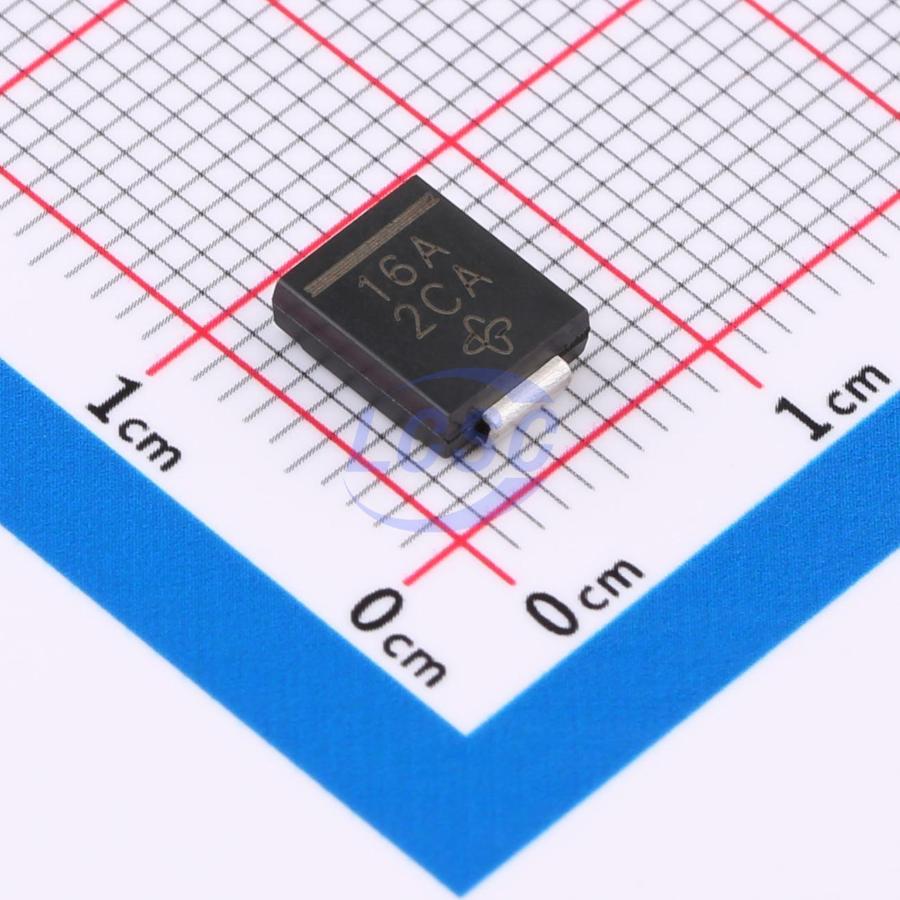

1.5SMC16A-E3/57T
22.5VC Clamp 66.7A Ipp TVS DIODE DO-214AB(SMCJ)
DO-214AB(SMCJ)ROHS3 CompliantActive
TVS DIODE 13.6VWM 22.5VC DO-214AB(SMCJ)
- Manufacturer
- VISHAY
- Manufacturer part #
- 1.5SMC16A-E3/57T
- Store part #
- C3705898
- Package / case
- DO-214AB(SMCJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C3705898
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.54 | ₹82.54 |
| 10+ | ₹81.26 | ₹812.60 |
| 30+ | ₹80.40 | ₹2,412.00 |
| 100+ | ₹79.54 | ₹7,954.00 |
1 × ₹82.54
₹82.54
excl. GST
₹97.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
1.5SMC16A-E3/57T
₹82.54 for 1 + GST
Specifications
- Clamping Voltage
- 22.5V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 66.7A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 15.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 13.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.362 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package Available
- Ideal for automated placement
- Glass passivated chip junction
- Available in unidirectional and bidirectional RoHS
- 1500 W peak pulse power capability with a COMPLIANT HALOGEN 10/1000 μs waveform, repetitive rate FREE (duty cycle): 0.01% Available
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
