LittelfuseDatasheet (PDF)

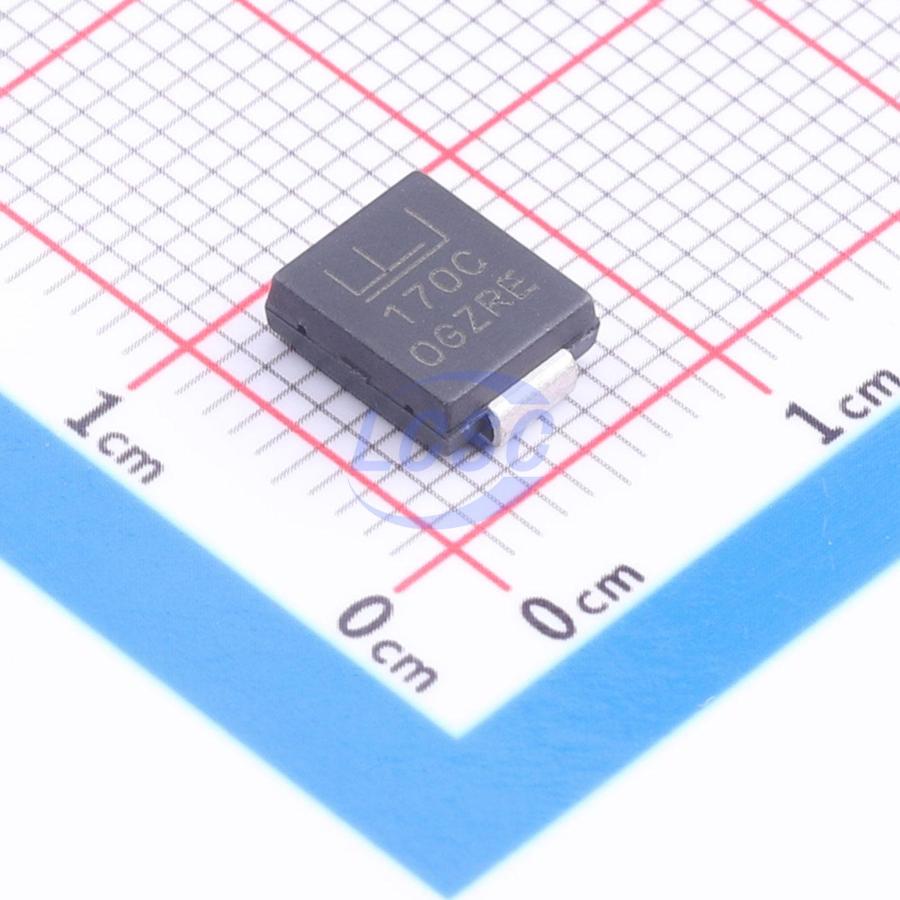

1.5SMC170CA
234VC Clamp 6.5A Ipp TVS DIODE DO-214AB(SMCJ)
DO-214AB(SMCJ)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1.5SMC170CA
- Store part #
- C1977069
- Package / case
- DO-214AB(SMCJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C1977069
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹157.56 | ₹157.56 |
| 10+ | ₹154.76 | ₹1,547.60 |
| 30+ | ₹153.04 | ₹4,591.20 |
| 100+ | ₹151.32 | ₹15,132.00 |
1 × ₹157.56
₹157.56
excl. GST
₹185.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1.5SMC170CA
₹157.56 for 1 + GST
Specifications
- Clamping Voltage
- 234V
- Peak Pulse Current (Ipp)
- 6.5A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 162V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 145V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.353 g
Overview
The 1.5SMC series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- Fast response time: typically less than 1.0ps from 0V to BV min
- Glass passivated chip junction
- High temperature to reflow soldering guaranteed: 260°C 30sec
- VBR @ Tj = VBR @ 25°C X (1 + αT × (Tj - 25)) (αT: Temperature Coefficient, typical value is 0.1%)
- Plastic package is flammability rated V - 0 per Underwriters Laboratories
- Meet MSL level1, per J - STD - 020, LF maximun peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb - free E3 means 2nd level interconnect is Pb - free and the terminal finish material is tin(Sn) (IPC/JEDEC J - STD609A.01)
- 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- Excellent clamping capability
- Low incremental surge resistance
- Typical IR less than 1μA when VBR min > 12V
- For surface mounted applications to optimize board space
- Low profile package
- Built - in strain relief
- Typical failure mode is short from over - specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000 - 4 - 2
- EFT protection of data lines in accordance with IEC 61000 - 4 - 4
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ150CA#C2649864Littelfuse · DO-214AB | Littelfuse | DO-214AB | 31 | ₹82.33 · 31 in stock | View |
 | SMCJ150CA#C2687807TKS · DO-214AB | TKS | DO-214AB | 25 | ₹39.97 · 25 in stock | View |
 | SMCJ150CA#C2844518WPMtek · SMC(DO-214AB) | WPMtek | SMC(DO-214AB) | 1,995 | ₹17.12 · 1,995 in stock | View |
 | SMCJ150CA#C2990159Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 5,420 | ₹18.79 · 5,420 in stock | View |
 | SMCJ150CA/TR13#C310015Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 1,970 | ₹18.39 · 1,970 in stock | View |
