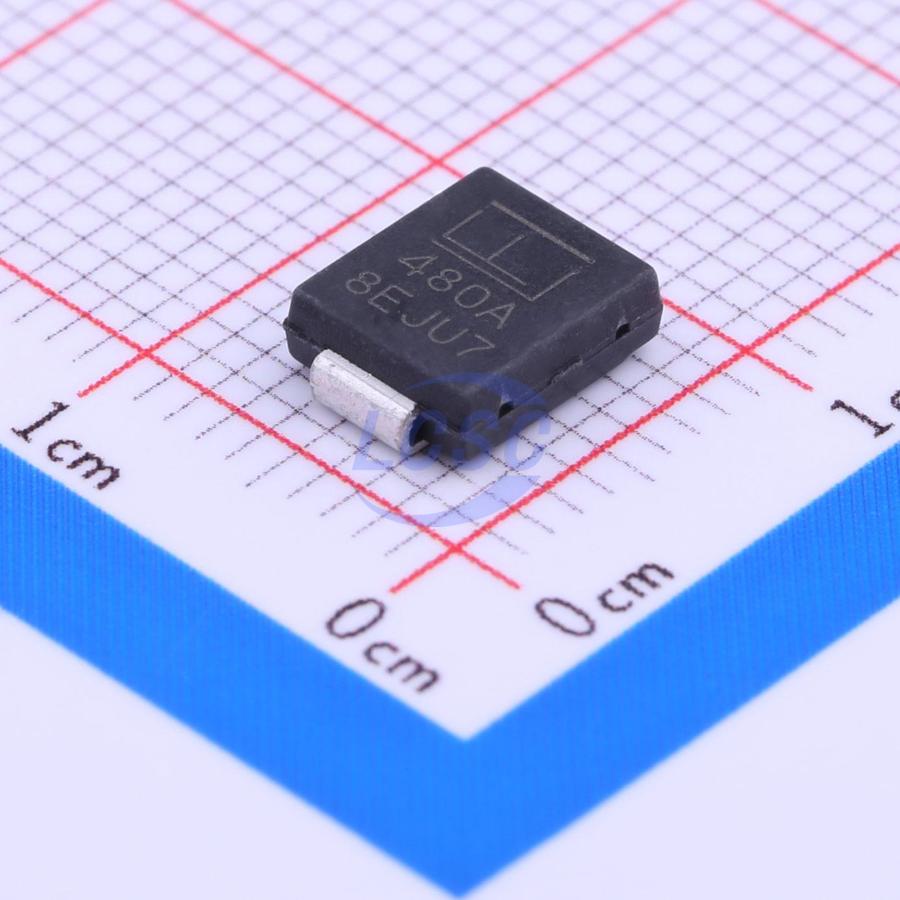

1.5SMC480A

The 1.5SMC series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

• TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Key features

• 1500W peak pulse powe capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
• Excellent clamping capability
• Low incremental surge resistance
• Typical |R less than 1μA when VBR min>12V
• For surface mounted applications to optimize board space
• Low profle package
• Built-in strain relief
• Typical failure mode is short from over-specifed voltage or current
• Whisker test is conducte based on JEDEC JESD201A per its table 4 and 4c
• IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2
• EFT protection of data lines in accordance with IEC 61000-4-4
• Fast response time: typically less than 1.0ps from 0V to BV min
• Glass passivated chip junction
• High temperature to refow soldering guaranteed: 260°C/40sec
• V @ T = V @25°C x (1+αT x (T - 25)) (αT:Temperature Coeffcient, typical value is 0.1% )
• Plastic package is fammability rated V-0 per Underwriters Laboratories
• Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb-free E3 means 2nd level interconnect is Pb-free and the terminal fnish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
