LittelfuseDatasheet (PDF)

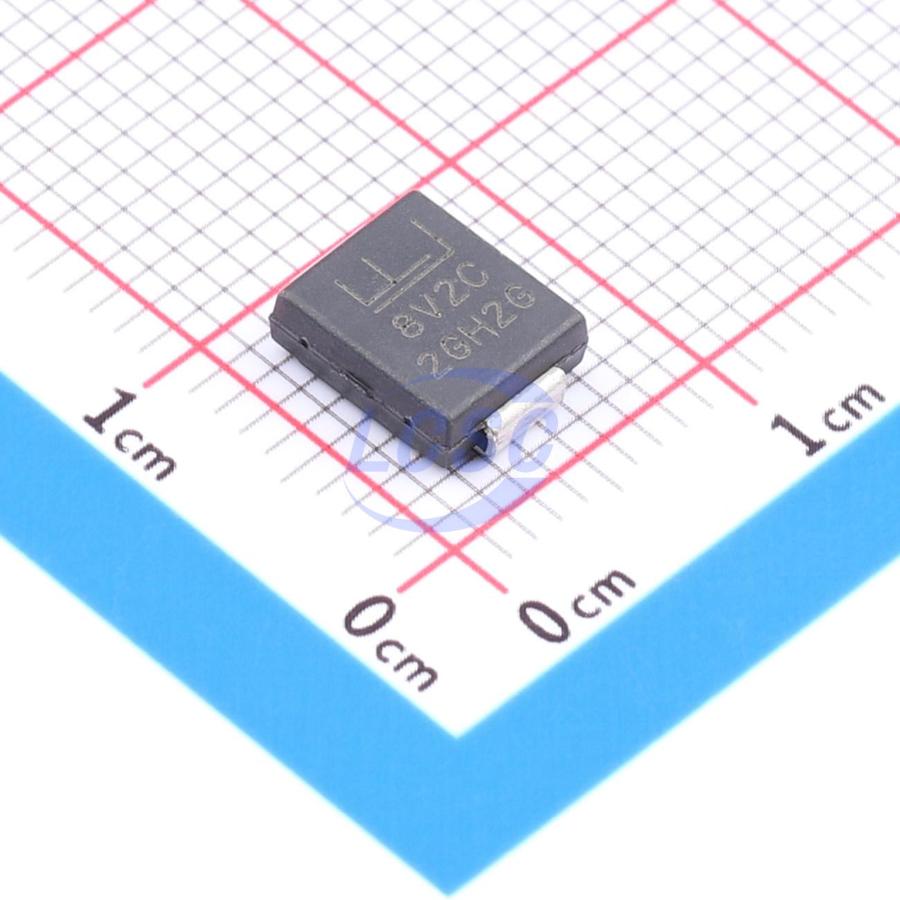

1.5SMC8.2CA
12.1V 125.6A 1.5kW@10/1000us 8.61V Bidirectional 7.02V DO-214AB TVS Diodes RoHS
DO-214ABROHS CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1.5SMC8.2CA
- Store part #
- C24621689
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
164 in stock
#C24621689
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.12 | ₹108.12 |
| 10+ | ₹106.40 | ₹1,064.00 |
| 30+ | ₹105.11 | ₹3,153.30 |
| 100+ | ₹104.04 | ₹10,404.00 |
1 × ₹108.12
₹108.12
excl. GST
₹127.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1.5SMC8.2CA
₹108.12 for 1 + GST
Specifications
- Clamping Voltage
- 12.1V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 125.6A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Voltage - Breakdown
- 8.61V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200uA
- Reverse Stand-Off Voltage (Vrwm)
- 7.02V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.376 g
Overview
Applications
- Telecommunications
- Computer
- Industrial
- Consumer Electronics
Key features
- 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
- Excellent clamping capability
- Low dynamic resistance
- Surface mount application to optimize board space
- Typical failure mode: short circuit due to overvoltage or overcurrent
- Whisker tested at Level 1 and Level 2 per JEDEC JESD201A, Tables 4a and 4c
- IEC 61000-4-2 ESD 30kV (air discharge), 30kV (contact discharge)
- Glass passivated chip junction
- VBR@TJ = VBR@25°C × (1 + αT × (TJ - 25)) (αT: temperature coefficient, typical value 0.1%)
- Plastic package meets Underwriters Laboratories V-0 flammability rating
- Halogen-free and RoHS compliant
- Lead-free E3 indicates second-level interconnect is lead-free with terminal finish material of Tin (Sn) (per IPC/JEDEC J-STD-609A.01)
- Recognized by Underwriters Laboratories as isolated loop circuit protector
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ7.0CA#C41411766R+O · SMC(DO-214AB) | R+O | SMC(DO-214AB) | 655 | ₹17.86 · 655 in stock | View |
 | SMCJ7.0CA/TR13#C140598Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 5 | ₹18.63 · 5 in stock | View |
 | SMCJ7.0CA#C22371764JUXING · SMC | JUXING | SMC | 2,795 | ₹15.82 · 2,795 in stock | View |
 | SMCJ7.0CA#C4154653TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 2,900 | ₹14.18 · 2,900 in stock | View |
 | SMCJ7.0CA#C438192Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 20 | ₹12.45 · 20 in stock | View |
