LittelfuseDatasheet (PDF)

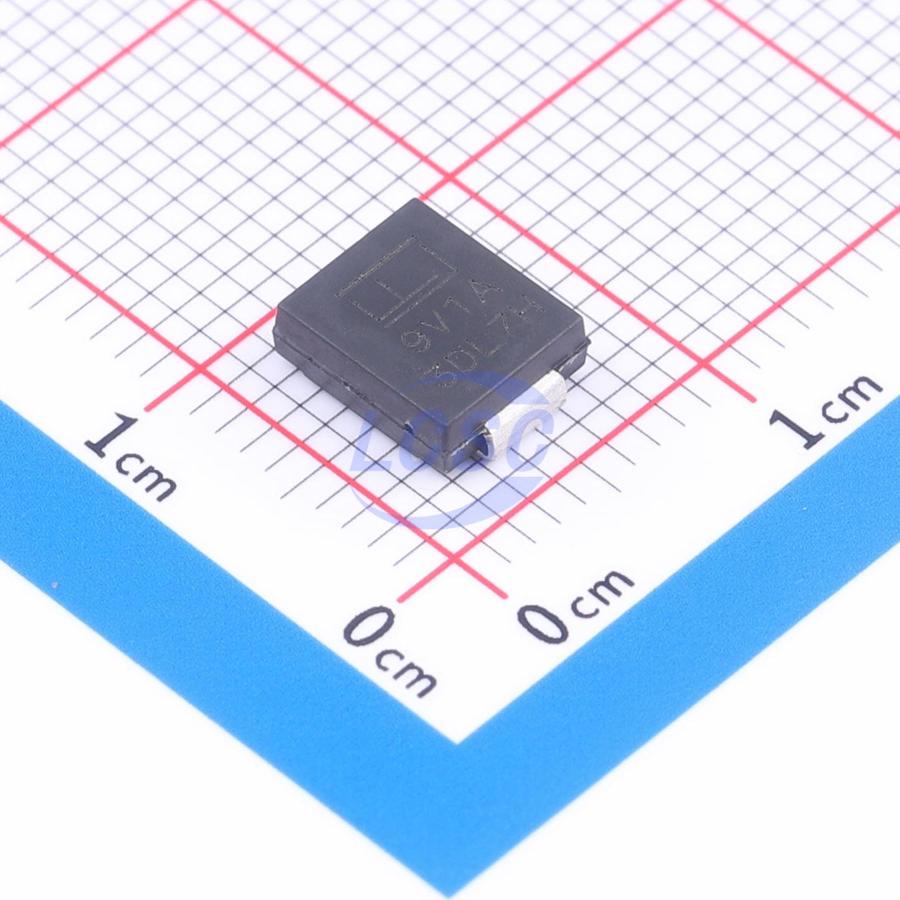

1.5SMC9.1A
13.4V 113.4A 1.5kW@10/1000us 9.5V Unidirectional 7.78V DO-214AB TVS Diodes RoHS
DO-214ABROHS CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1.5SMC9.1A
- Store part #
- C25538053
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63 in stock
#C25538053
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.80 | ₹120.80 |
| 10+ | ₹118.87 | ₹1,188.70 |
| 30+ | ₹117.58 | ₹3,527.40 |
| 100+ | ₹116.07 | ₹11,607.00 |
1 × ₹120.80
₹120.80
excl. GST
₹142.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per bag
1.5SMC9.1A
₹120.80 for 1 + GST
Specifications
- Clamping Voltage
- 13.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 113.4A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Voltage - Breakdown
- 9.5V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 50uA
- Reverse Stand-Off Voltage (Vrwm)
- 7.78V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 3,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.143 g
Overview
Applications
- Telecommunications
- Computer
- Industrial
- Consumer Electronics
Key features
- 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
- Excellent clamping capability
- Low dynamic resistance
- Surface mount application to optimize board space
- Typical failure mode: short circuit due to overvoltage or overcurrent
- Whisker tested at Level 1 and Level 2 per JEDEC JESD201A, Tables 4a and 4c
- IEC 61000-4-2 ESD 30kV (air discharge), 30kV (contact discharge)
- Glass passivated chip junction
- VBR@TJ = VBR@25°C × (1 + αT × (TJ - 25)) (αT: temperature coefficient, typical value 0.1%)
- Plastic package meets Underwriters Laboratories V-0 flammability rating
- Halogen-free and RoHS compliant
- Lead-free E3 indicates second-level interconnect is lead-free with terminal finish material of Tin (Sn) (per IPC/JEDEC J-STD-609A.01)
- Recognized by Underwriters Laboratories as isolated loop circuit protector
