VBsemi ElecDatasheet (PDF)

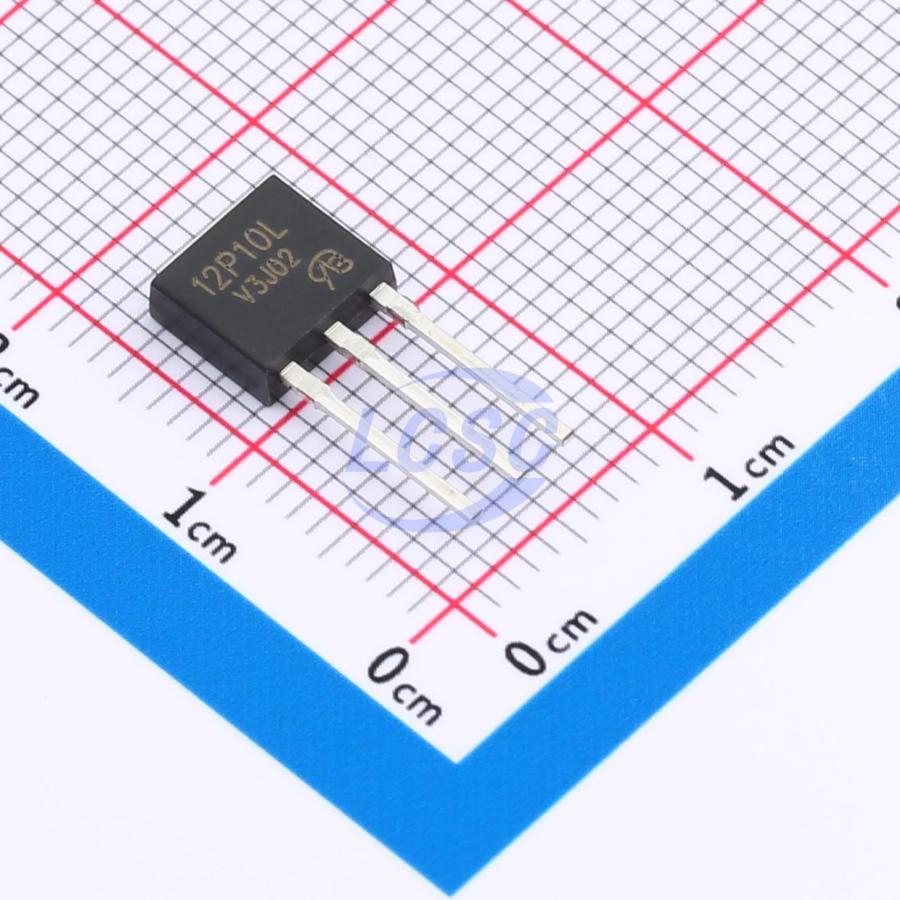

12P10L-TM3-T-VB
P-Channel 100V 12A 2.5W Through Hole TO-251
TO-251RoHSActive
MOSFET P-CH 100V 12A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 12P10L-TM3-T-VB
- Store part #
- C19188131
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C19188131
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.43 | ₹61.43 |
| 10+ | ₹48.67 | ₹486.70 |
| 30+ | ₹43.35 | ₹1,300.50 |
| 80+ | ₹36.55 | ₹2,924.00 |
| 480+ | ₹33.58 | ₹16,118.40 |
| 960+ | ₹31.67 | ₹30,403.20 |
1 × ₹61.43
₹61.43
excl. GST
₹72.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
12P10L-TM3-T-VB
₹61.43 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 65pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.055nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 215mΩ@10V;234mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.125 g
Overview
Applications
- Power switch
- DC/DC converter
Key features
- Halogen-free product as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP15P10GJ-HF-VB#C5456478VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 42 | ₹59.67 · 42 in stock | View |
 | IRFU9110PBF-VB#C725091VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 14 | ₹67.27 · 14 in stock | View |
 | FQU8P10-VB#C47993938VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹61.68 · 10 in stock | View |
 | IRFU5410PBF-VB#C20417438VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 25 | ₹87.52 · 25 in stock | View |
 | 18P10AGJ-HF-VB#C29779139VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 100 | ₹86.00 · 100 in stock | View |
