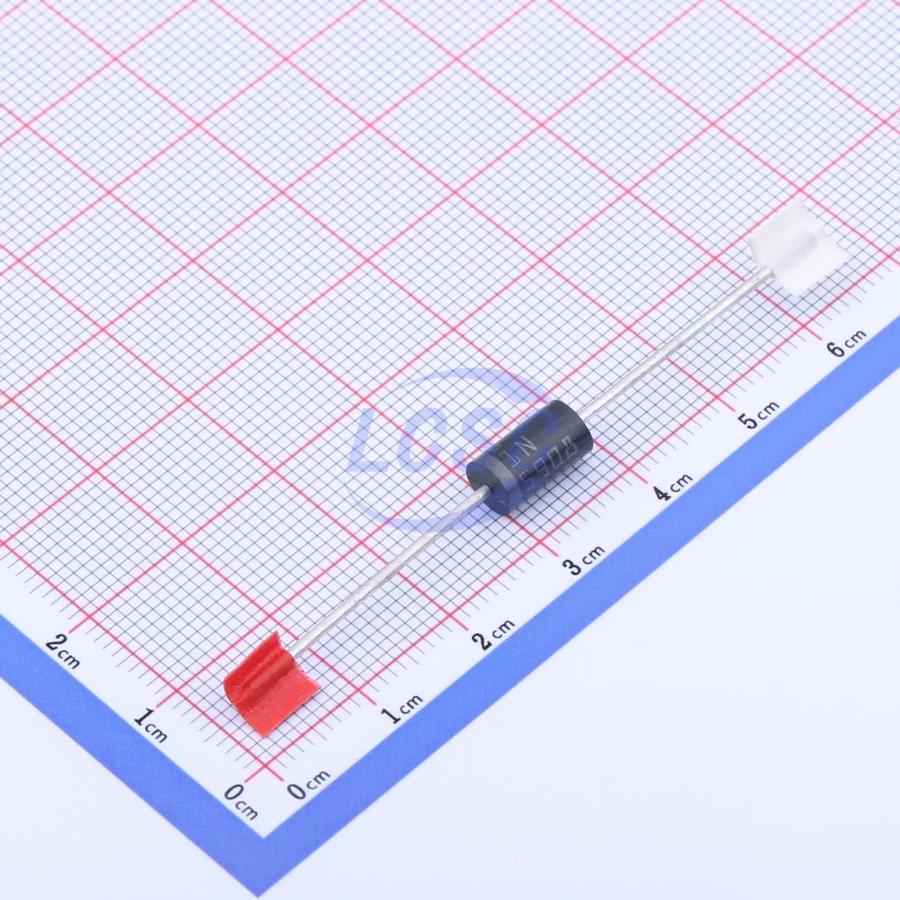

1N5908
7.6VC 8VC 8.5VC Clamp 30A 60A 120A@10/1000us Ipp TVS DIODE DO-201
TVS DIODE 5VWM 7.6VC 8VC 8.5VC DO-201
- Manufacturer
- ST
- Manufacturer part #
- 1N5908
- Store part #
- C1665805
- Package / case
- DO-201
- Category
- TVS Diodes
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C1665805
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.74 | ₹137.74 |
| 10+ | ₹112.76 | ₹1,127.60 |
| 30+ | ₹99.07 | ₹2,972.10 |
| 100+ | ₹83.65 | ₹8,365.00 |
| 600+ | ₹76.69 | ₹46,014.00 |
| 1,200+ | ₹73.65 | ₹88,380.00 |
1 × ₹137.74
₹137.74
excl. GST
₹162.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 600 per box
1N5908
₹137.74 for 1 + GST
Specifications
- Clamping Voltage
- 8.5V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 120A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 300uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 600 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.93 g
Overview
This Transil series has been designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, and MIL STD 883, method 3015, and electrical over stress according to IEC 61000-4-4 and 5. These devices are more generally used against surges below 1500 W (10/1000 μs). The Planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time. They are packaged in SMC (SMC footprint in accordance with IPC 7531 standard) and DO-201.
Key features
- Peak pulse power: – 1500 W (10/1000 μs)
- Stand off voltage: 5 V
- Unidirectional
- Operating Tj max: 175 °C High power capability at Tj max: – 1500 W (10/1000 µs) JEDEC registered package outline
- Complies with IEC 61000-4-2 level 4: – 15 kV (air discharge) – 8 kV (contact discharge)
- Complies with IEC 61000-4-5
- Complies with MIL STD 883G, method 3015-7 Class 3B – 25 kV HBM (human body model)
- Resin meets UL 94, V0
- Complies with MIL-STD-750, method 2026 solderability
- Complies with EIA STD RS-481 and IEC 60286-3 packing
- Complies with IPC 7531 footprint
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| ICTE5.0HE3/54#C1982033VISHAY · DO-201AA(DO-27) | VISHAY | DO-201AA(DO-27) | On request | ₹76.79 · 0 in stock | View | |
