HXY MOSFETDatasheet (PDF)

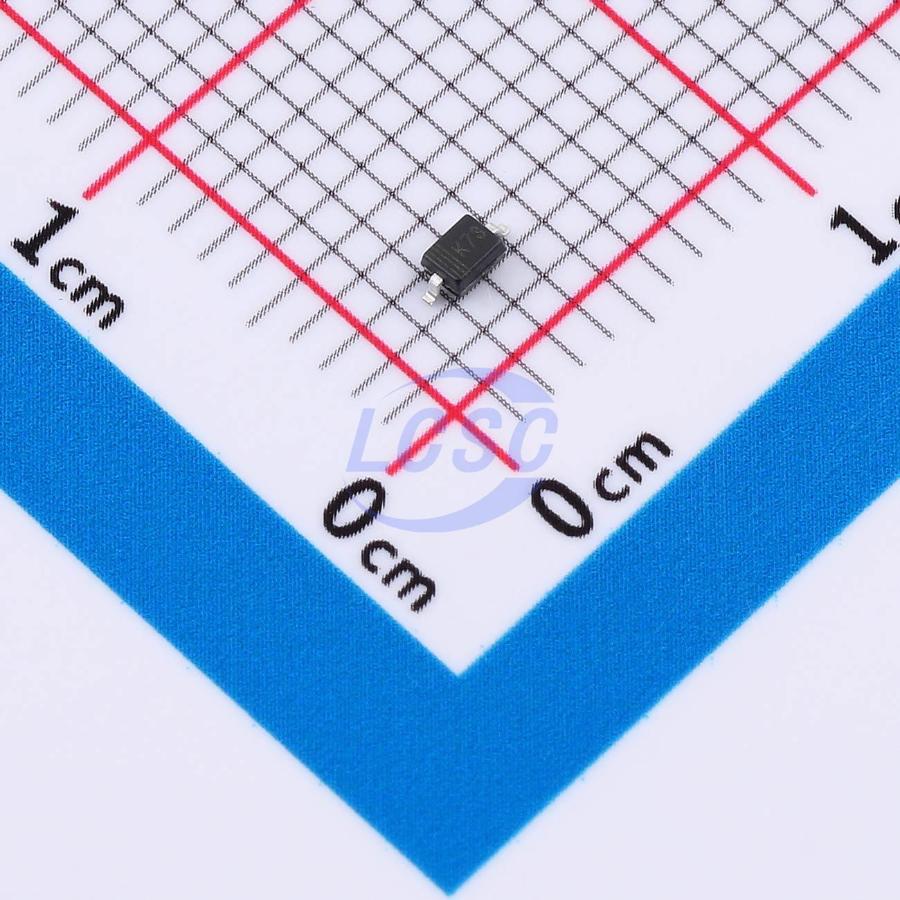

1PS76SB70-HXY
1 Independent 70V 1V@15mA 70mA SOD-323 Single Diodes
SOD-323RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- 1PS76SB70-HXY
- Store part #
- C52754512
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C52754512
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.05 | ₹70.50 |
| 100+ | ₹5.68 | ₹568.00 |
| 300+ | ₹5.00 | ₹1,500.00 |
| 3,000+ | ₹4.48 | ₹13,440.00 |
| 6,000+ | ₹4.07 | ₹24,420.00 |
| 9,000+ | ₹3.86 | ₹34,740.00 |
10 × ₹7.05
₹70.50
excl. GST
₹83.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1PS76SB70-HXY
₹70.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 70V
- Voltage - Forward(Vf@If)
- 1V@15mA
- Reverse Leakage Current (Ir)
- 100nA@50V
- Current - Rectified
- 70mA
- Non-Repetitive Peak Forward Surge Current
- 100mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
Key features
- Forward continuous current IF = 70 mA
- Power dissipation 200 mW
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS170WS-E3-08-HXY#C52754513HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 130 | ₹14.20 · 130 in stock | View |
 | BAS70WX-HXY#C52754515HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 100 | ₹3.15 · 100 in stock | View |
 | MMDL770T1G-HXY#C52754594HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 2,720 | ₹5.15 · 2,720 in stock | View |
 | BAT46JFILM-HXY#C52754516HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 80 | ₹4.21 · 80 in stock | View |
 | B110WS#C50176892HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 2,100 | ₹4.15 · 2,100 in stock | View |
