VBsemi ElecDatasheet (PDF)

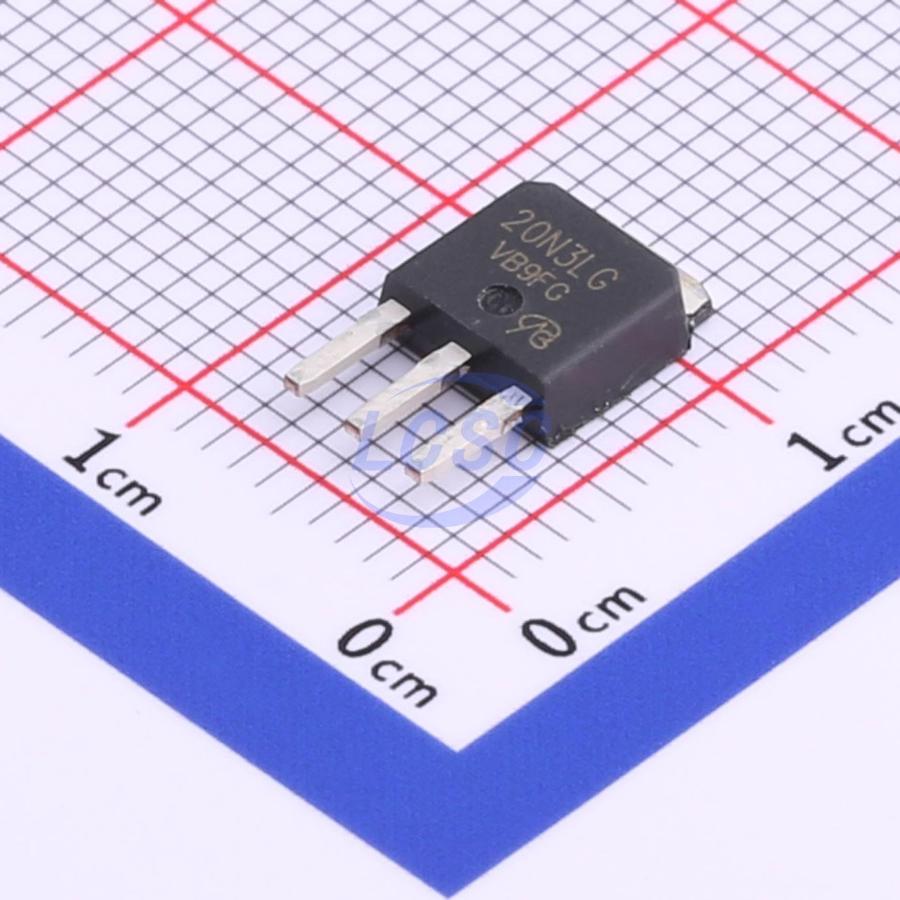

20N3LG TO251-VB
N-Channel 30V 14A 3.5W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 30V 14A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 20N3LG TO251-VB
- Store part #
- C878771
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C878771
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.79 | ₹52.79 |
| 10+ | ₹41.90 | ₹419.00 |
| 30+ | ₹37.28 | ₹1,118.40 |
| 80+ | ₹31.42 | ₹2,513.60 |
| 480+ | ₹28.91 | ₹13,876.80 |
| 800+ | ₹27.24 | ₹21,792.00 |
1 × ₹52.79
₹52.79
excl. GST
₹62.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
20N3LG TO251-VB
₹52.79 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 14A
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 3.5W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 7mΩ@10V;9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33nC@10V;18nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.4 g
Overview
Applications
- DC-DC conversion
- System power supply
Key features
- Halogen-free
- 3rd generation trench power MOSFET
- 100% Rg tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
