NexperiaDatasheet (PDF)

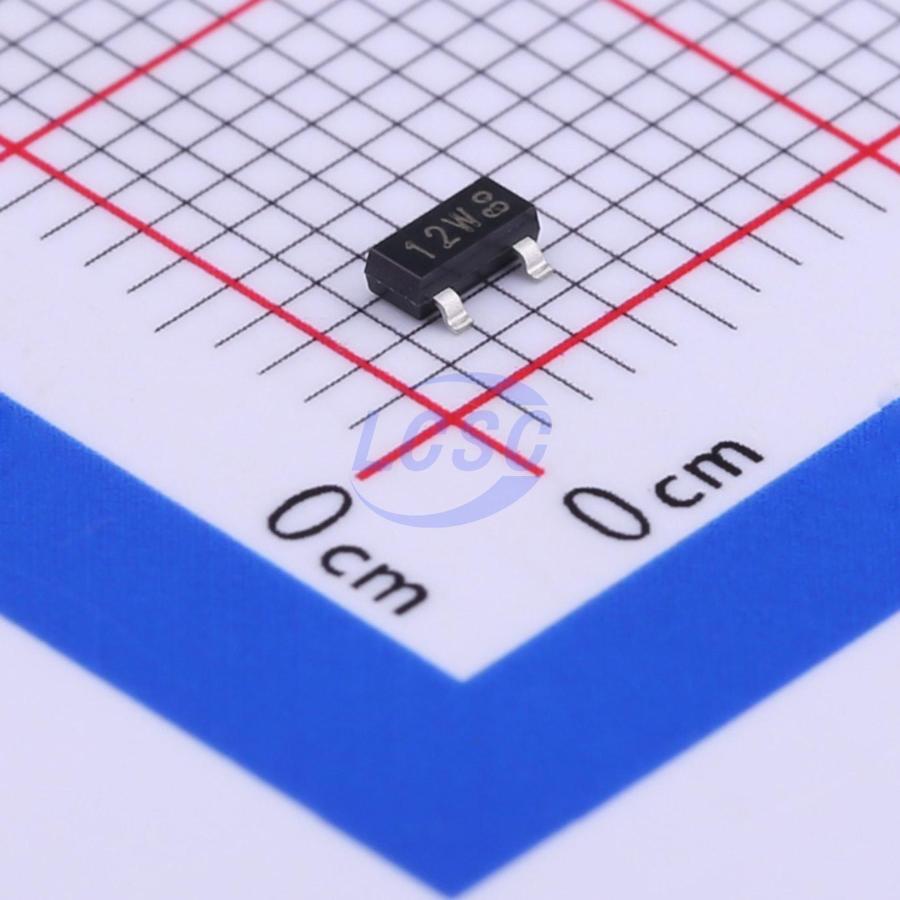

2N7002,215
N-Channel 60V 300mA 830mW Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
MOSFET N-CH 60V 300mA SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- 2N7002,215
- Store part #
- C65189
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,78,700 in stock
#C65189
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.41 | ₹48.20 |
| 200+ | ₹1.81 | ₹362.00 |
| 600+ | ₹1.55 | ₹930.00 |
| 3,000+ | ₹1.35 | ₹4,050.00 |
| 9,000+ | ₹1.27 | ₹11,430.00 |
| 21,000+ | ₹1.22 | ₹25,620.00 |
20 × ₹2.41
₹48.20
excl. GST
₹56.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002,215
₹48.20 for 20 + GST
Specifications
- Output Capacitance(Coss)
- 6.8pF
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 830mW
- Operating Temperature
- -65℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 300mA
- Reverse Transfer Capacitance (Crss)
- 3.5pF
- RDS(on)
- 5Ω@10V
- Number
- 1 N-channel
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.34 g
Overview
N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using Trench MOSFET technology.
Applications
- Logic level translator
- High-speed line driver
Key features
- Logic-level gate drive compatible
- Surface mount package
- Ultra-fast switching speed
- Trench MOSFET technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002/HAMR#C551411Nexperia · SOT-23 | Nexperia | SOT-23 | 960 | ₹3.19 · 960 in stock | View |
 | 2N7002#C41349565Siliup · SOT-23 | Siliup | SOT-23 | 2,150 | ₹2.30 · 2,150 in stock | View |
 | 2N7002-HXY#C4748728HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 3,08,860 | ₹2.22 · 3,08,860 in stock | View |
 | 2N7002#C727149TWGMC · SOT-23 | TWGMC | SOT-23 | 95,500 | ₹2.05 · 95,500 in stock | View |
 | 2N7002K#C784615FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 13,900 | ₹1.81 · 13,900 in stock | View |
