TECH PUBLICDatasheet (PDF)

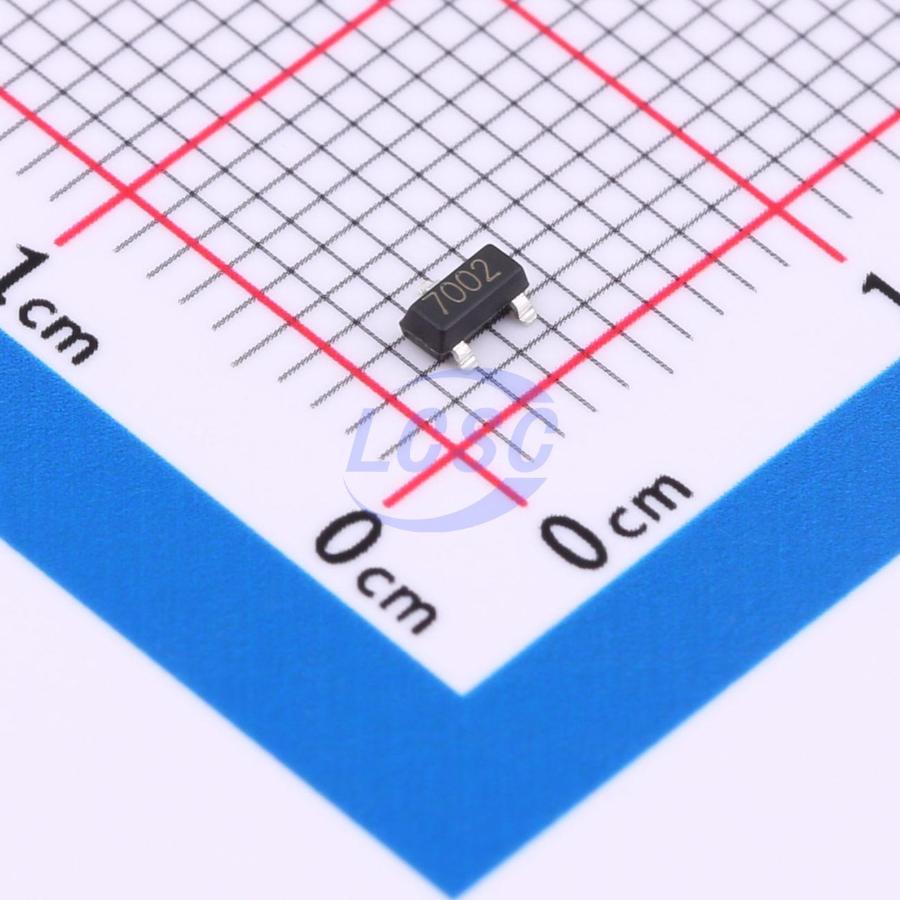

2N7002
60V 0.3A 0.35W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 60V 0.3A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 2N7002
- Store part #
- C28646312
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
760 in stock
#C28646312
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.14 | ₹62.80 |
| 200+ | ₹2.49 | ₹498.00 |
| 600+ | ₹2.13 | ₹1,278.00 |
| 3,000+ | ₹1.79 | ₹5,370.00 |
| 9,000+ | ₹1.59 | ₹14,310.00 |
| 21,000+ | ₹1.49 | ₹31,290.00 |
20 × ₹3.14
₹62.80
excl. GST
₹74.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002
₹62.80 for 20 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 18pF
- Current - Continuous Drain(Id)
- 300mA
- Ciss-Input Capacitance
- 27pF
- Pd - Power Dissipation
- 350mW
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 2.5Ω@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Overview
Applications
- Direct logic-level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, display, memories, transistors, etc.
- Battery operated systems
- Solid-state relays
Key features
- Drain-Source Voltage (VDS) = 60V, Drain Current (ID) = 0.3A
- RDS(ON) < 2.5Ω at VGS = 4.5V
- RDS(ON) < 2.2Ω at VGS = 10V
- ESD Rating: HBM 2000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RK7002BM#C16197299TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 9,100 | ₹2.79 · 9,100 in stock | View |
 | 2N7002NXAKR#C19268174TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 13,580 | ₹3.29 · 13,580 in stock | View |
 | MMBF170#C19829421TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 9,020 | ₹3.06 · 9,020 in stock | View |
 | 2N7002LT1G#C28646313TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 7,420 | ₹2.84 · 7,420 in stock | View |
 | BS170FTA#C28646320TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,450 | ₹2.84 · 3,450 in stock | View |
