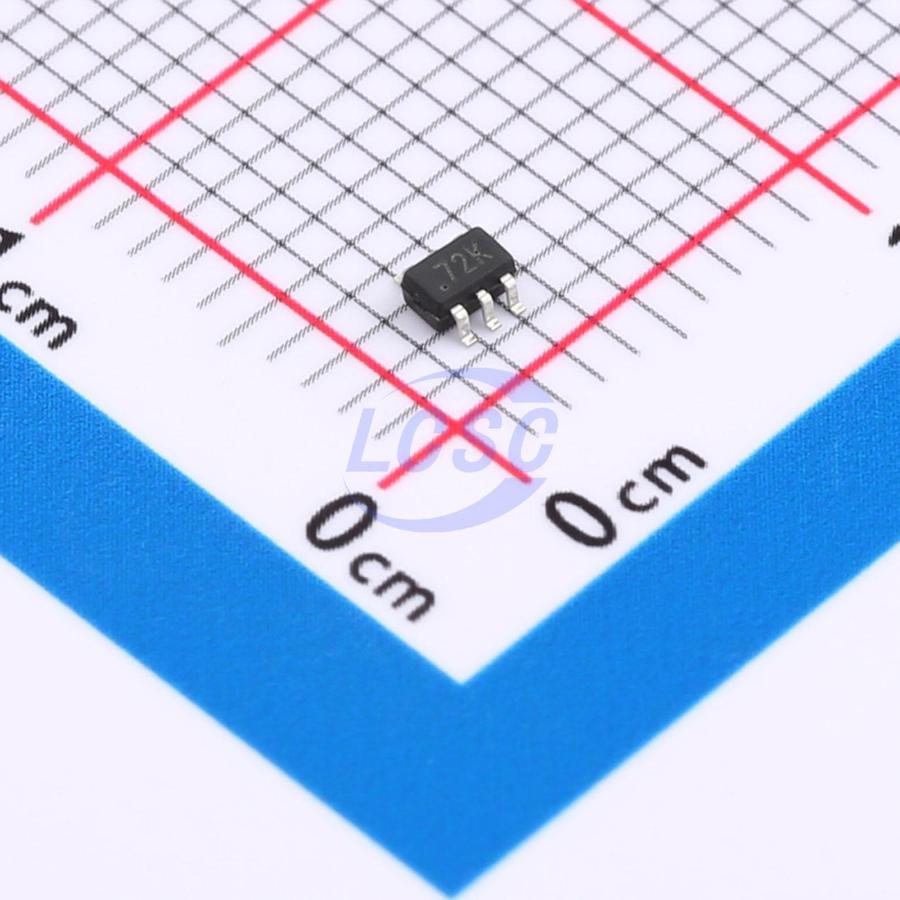

2N7002DW
N-Channel Array 60V 0.115A 0.15W Surface Mount SOT-363
SOT-363ROHS CompliantActive
MOSFET N-CH ARR 60V 0.115A SOT-363
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- 2N7002DW
- Store part #
- C7507457
- Package / case
- SOT-363
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,860 in stock
#C7507457
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.52 | ₹90.40 |
| 200+ | ₹3.60 | ₹720.00 |
| 600+ | ₹3.10 | ₹1,860.00 |
| 3,000+ | ₹2.71 | ₹8,130.00 |
| 9,000+ | ₹2.45 | ₹22,050.00 |
| 21,000+ | ₹2.30 | ₹48,300.00 |
20 × ₹4.52
₹90.40
excl. GST
₹106.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002DW
₹90.40 for 20 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 115mA
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 150mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 1.3Ω@10V
- Number
- 2 N-Channel
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HNTJD5121NT1G#C42401090HXY MOSFET · SOT-363 | HXY MOSFET | SOT-363 | 190 | ₹6.52 · 190 in stock | View |
 | H2N7002DW7F#C42401230HXY MOSFET · SOT-363 | HXY MOSFET | SOT-363 | 160 | ₹5.38 · 160 in stock | View |
 | HSI1926DLT1E3#C42401292HXY MOSFET · SOT-363 | HXY MOSFET | SOT-363 | 10 | ₹17.86 · 10 in stock | View |
 | HSSM6N7002CFULF#C42401293HXY MOSFET · SOT-363 | HXY MOSFET | SOT-363 | 110 | ₹6.23 · 110 in stock | View |
 | HDMN62D0UDWQ13#C42401342HXY MOSFET · SOT-363 | HXY MOSFET | SOT-363 | 10 | ₹5.93 · 10 in stock | View |
