JSCJDatasheet (PDF)

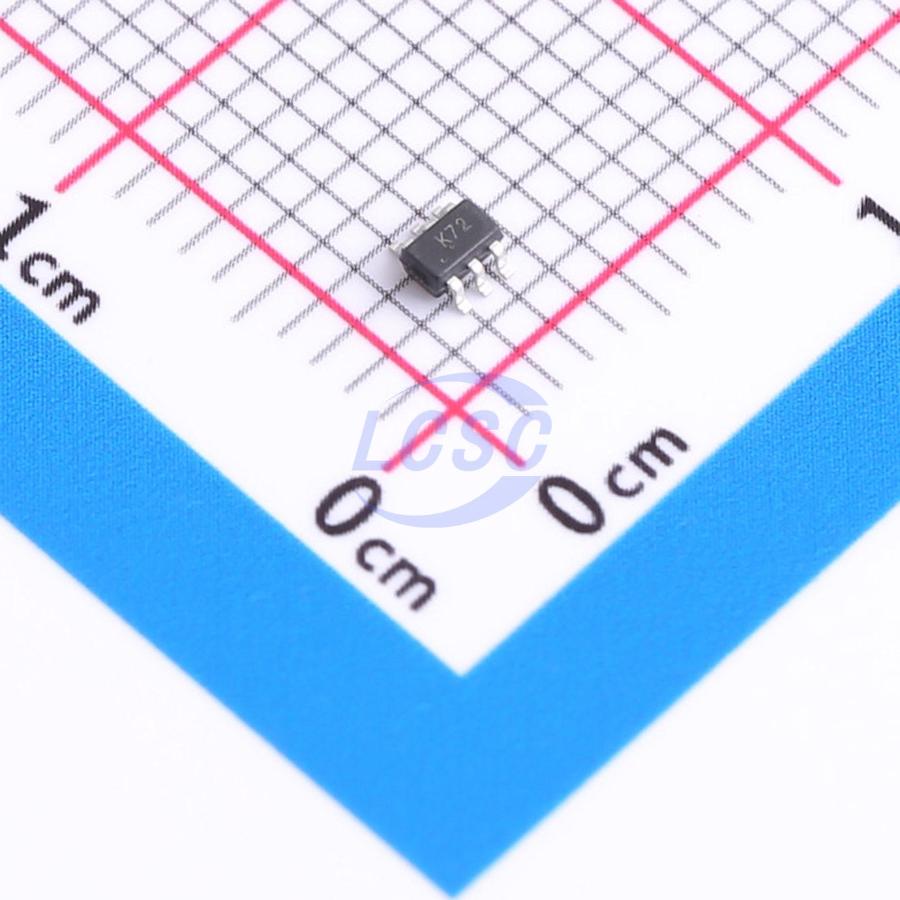

2N7002DW K72
N-Channel Array 60V 115mA 150mW Surface Mount SC-70-6(SOT-363)
SC-70-6(SOT-363)ROHS CompliantActive
MOSFET N-CH ARR 60V 115mA SC-70-6(SOT-363)
- Manufacturer
- JSCJ
- Manufacturer part #
- 2N7002DW K72
- Store part #
- C61840
- Package / case
- SC-70-6(SOT-363)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
750 in stock
#C61840
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.31 | ₹53.10 |
| 100+ | ₹4.15 | ₹415.00 |
| 300+ | ₹3.59 | ₹1,077.00 |
| 3,000+ | ₹3.15 | ₹9,450.00 |
| 6,000+ | ₹2.82 | ₹16,920.00 |
| 9,000+ | ₹2.65 | ₹23,850.00 |
10 × ₹5.31
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002DW K72
₹53.10 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 150mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 115mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 5Ω@10V
- Number
- 2 N-Channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
Applications
- Load Switch for Portable Devices
- DC/DC Converter
Key features
- High density cell design for low RDS(ON)
- Voltage controlled small signal switch
- Rugged and reliable
- High saturation current capability
