DIODESDatasheet (PDF)

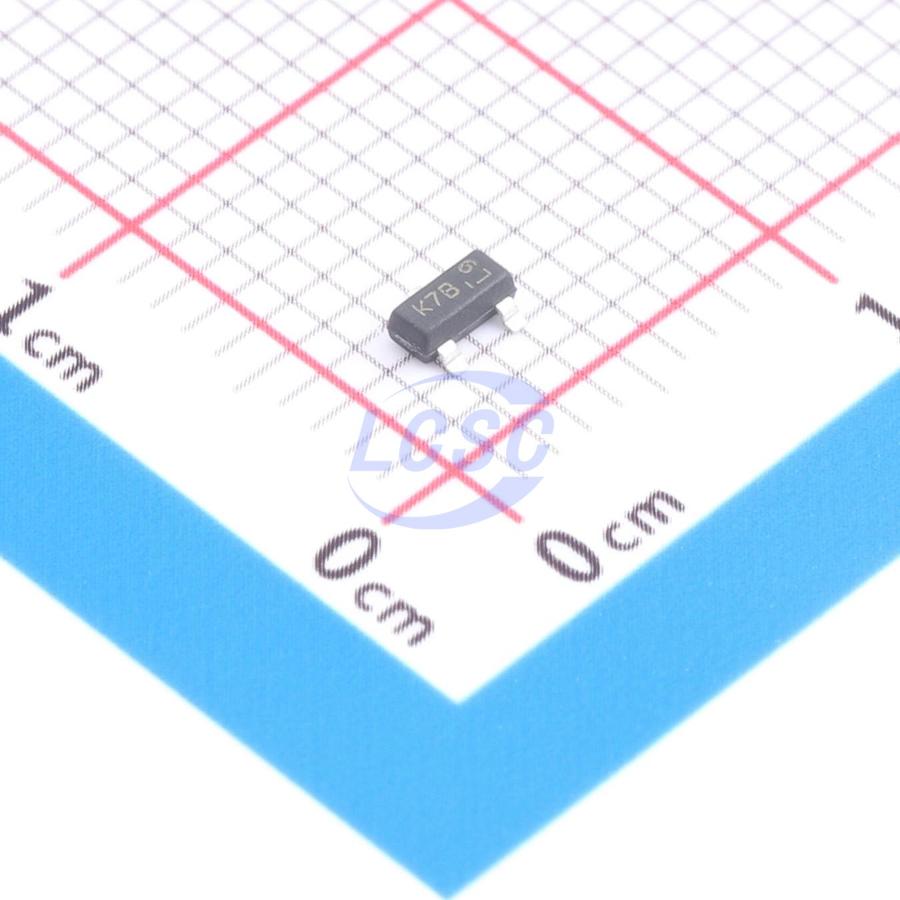

2N7002EQ-7-F
60V 292mA 500mW 3Ω@10V 1 N-channel SOT-23-3 Single FETs, MOSFETs RoHS
SOT-23-3ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- 2N7002EQ-7-F
- Store part #
- C6379840
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C6379840
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.73 | ₹198.65 |
| 50+ | ₹39.16 | ₹1,958.00 |
| 150+ | ₹38.78 | ₹5,817.00 |
| 500+ | ₹38.39 | ₹19,195.00 |
5 × ₹39.73
₹198.65
excl. GST
₹234.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002EQ-7-F
₹198.65 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 292mA
- Ciss-Input Capacitance
- 35pF
- Pd - Power Dissipation
- 500mW
- RDS(on)
- 3Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 500pC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.507 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with the AEC-Q101 standard and supports PPAP, making it ideal for: Motor control Power management functions
Applications
- Motor control
- Power management functions
Key features
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Small SMT package
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "Green" device
- 2N7002EQ for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, and manufactured in an IATF 16949 certified facility.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002K_R1_005B3#C53413303PANJIT · SOT-23 | PANJIT | SOT-23 | 3,580 | ₹3.23 · 3,580 in stock | View |
 | 2N7002K-AU_R1_000A2#C5356094PANJIT · SOT-23 | PANJIT | SOT-23 | 3,600 | ₹5.27 · 3,600 in stock | View |
 | 2N7002K-KTP#C48392927KTP · SOT-23 | KTP | SOT-23 | 3,600 | ₹1.91 · 3,600 in stock | View |
 | 2N7002H6327#C672108Infineon · SOT-23 | Infineon | SOT-23 | 670 | ₹12.53 · 670 in stock | View |
 | 2N7002KQ-7#C111971DIODES · SOT-23 | DIODES | SOT-23 | 6,030 | ₹27.85 · 6,030 in stock | View |
