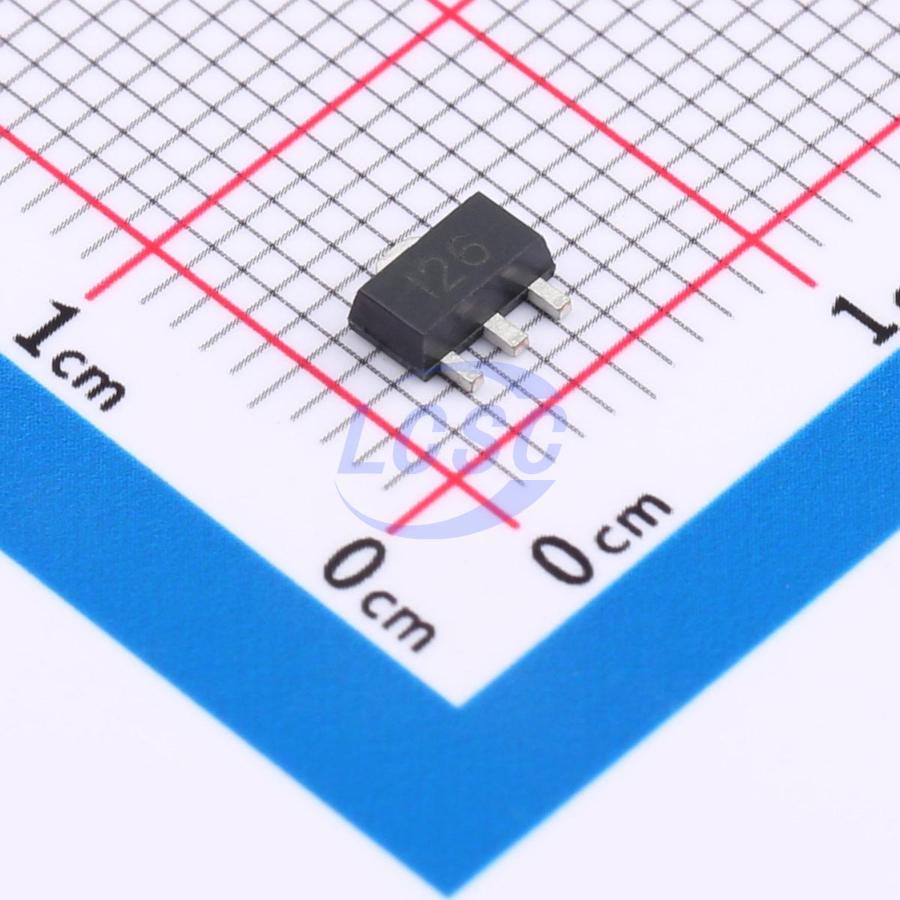

2SJ197-VB
P-Channel 60V 4.8A 2.1W Surface Mount SOT-89
SOT-89RoHSActive
MOSFET P-CH 60V 4.8A SOT-89
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ197-VB
- Store part #
- C879057
- Package / case
- SOT-89
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C879057
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.98 | ₹82.98 |
| 10+ | ₹70.17 | ₹701.70 |
| 30+ | ₹64.52 | ₹1,935.60 |
| 100+ | ₹57.79 | ₹5,779.00 |
| 500+ | ₹32.59 | ₹16,295.00 |
| 1,000+ | ₹30.63 | ₹30,630.00 |
1 × ₹82.98
₹82.98
excl. GST
₹97.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
2SJ197-VB
₹82.98 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 4.8A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 58mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 38nC@10V;19nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.097 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% unclamped inductive switching (UIS) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SJ356-VB#C557924VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 43 | ₹67.86 · 43 in stock | View |
 | 2SJ288-VB#C5240558VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 4 | ₹55.24 · 4 in stock | View |
 | 2SJ518-VB#C724948VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 862 | ₹63.70 · 862 in stock | View |
 | 2SJ360-VB#C724947VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 55 | ₹76.93 · 55 in stock | View |
 | CEA6861-VB#C19626813VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 1,017 | ₹72.82 · 1,017 in stock | View |
