VBsemi ElecDatasheet (PDF)

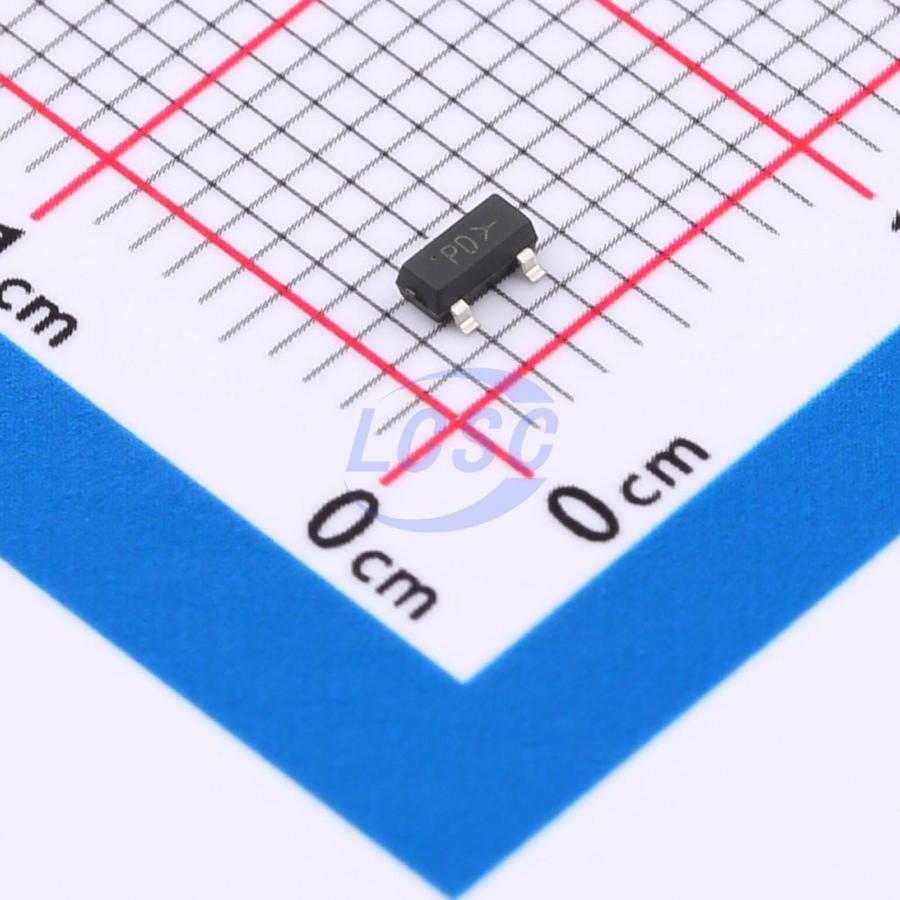

2SJ204-T1B-A-VB
P-Channel 60V 500mA 460mW Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 60V 500mA SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ204-T1B-A-VB
- Store part #
- C41369943
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C41369943
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.67 | ₹86.70 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.95 | ₹1,785.00 |
| 3,000+ | ₹5.27 | ₹15,810.00 |
| 6,000+ | ₹4.72 | ₹28,320.00 |
| 9,000+ | ₹4.45 | ₹40,050.00 |
10 × ₹8.67
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2SJ204-T1B-A-VB
₹86.70 for 10 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 10pF
- Current - Continuous Drain(Id)
- 500mA
- Ciss-Input Capacitance
- 23pF
- Pd - Power Dissipation
- 460mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 3Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 2nC@15V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.015 g
Overview
Applications
- OR gate logic
- Server
- DC-DC converter
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Power MOSFET
- High-Side Switching
- Low On-Resistance: 3 Ω
- Low Threshold: - 2 V (typ.)
- Fast Swtiching Speed: 20 ns (typ.)
- Low Input Capacitance: 20 pF (typ.)
- Compliant to RoHS Directive 2002/95/EC
